High speed 5-axis machining center
High speed 5-axis machining center -H3025F

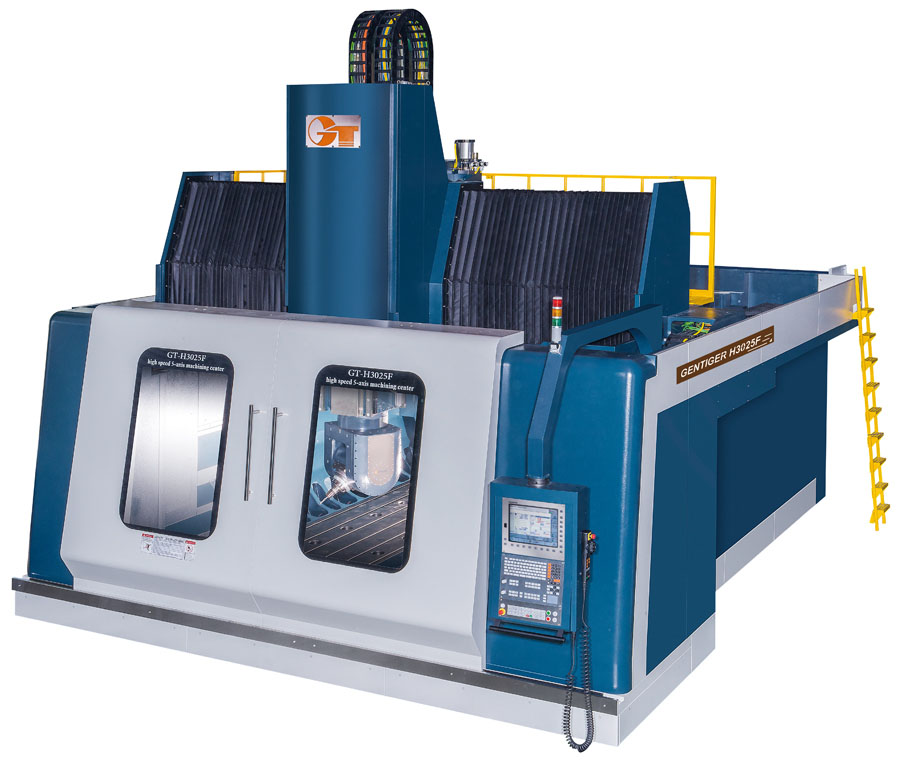

GT-H3025F

Feature

The gantry type structure is designed specifically for 5 Axis high speed machining.
With 5 axes simultaneously machining intricately shaped parts can be machined with only one setup.
Trapezoid type cross beam dramatically increases loading capacity.
Highly rigid “L” shaped double side-wall features optimal force-flow distribution.
Equipped with Germany made swiveling head to guarantee the highest accuracy.
18,000rpm, HSK-A63 built-in type spindle.
X, Z axis are driven by twin servo systems.
Roller type linear guide ways on X, Y, Z axis.
Positioning accuracy: 0.003mm / 300mm.
Repeatability accuracy: ±0.003mm.

Specification

 Specification

MODEL GT-H3025F(5 Axis) GT-H3025(3 Axis)
Travel (X, Y, Z) 3000 x 2250 x 1200 mm
Table area 2425 x 3000 mm
Max. Spindle speed 18000 RPM 24000 RPM
Spindle Type Built-in
Spindle taper HSK-A63
ATC capacity 24T/ Opt. 120T



B Axis
Rated Torque 382 Nm
Maximum Torque 575 Nm
Clamping Torque at P Max 2160 Nm
Clamping Torque at Po 1200 Nm
Clamping Method Pnematic
Swiveling Angle ±105
Positioning Accuracy ±5 sec



C Axis
Rated Torque 810 Nm
Maximum Torque 1100 Nm
Clamping Torque at P Max 1680 Nm
Clamping Torque at Po 930 Nm
Clamping Method Pnematic
Swiveling Angle ±200
Positioning Accuracy ±3 sec



 STANDARD ACCESSORIES

  • Coolant system
  • Work lamp
  • Tool box
  • Spindle air blow system
  • Chip air blow device
  • Air conditioner for electrical cabinet
  • M.P.G
  • Work end indication lamp
  • Semi-enclosed splash guard
  • Central control lubricator
  • Operation and maintenance manual
  • Leveling bolts and pads
  • Ethernet support function
  • Spindle thermal growth compensation function
  • X,Y,Z axes optical scales
  • Chain type chip conveyor

 OPTIONAL ACCESSORIES

  • Oil skimmer
  • Automatic tool length measurement (GT-H3025F 5 axis STD.)
  • Automatic workpiece measurement (GT-H3025F 5 axis STD.)
  • Coolant through spindle
  • Transformer
  • Chain type tool magazine
