Machine Features

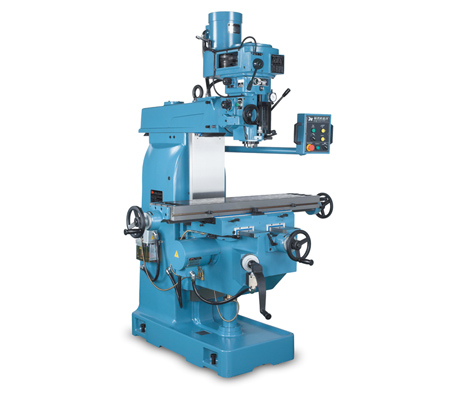

The turret type milling head is ruggedly constructed,combined with a heavy duty NST#40 spindle, making this unit excellent for heavy duty machining.
The spindle is precision manufactured from quality alloy steel SCM-21, carburized, tempered, and precision ground for maximum material stability. The spindle runs on high precision P4 class bearings.
Designed with an automatic forced lubrication system for the ground gears, clutch, and bearings inside the milling head, ensuring long service life of the head parts.
FC-30 and FCD-35 high quality castings are tempered for maximum wear resistance and strain-free performance.
The X and Y axis feeds are driven by a high precision C5 class preloaded, double nut ball screw. Each axis has a lock handle. Smooth feed, minimum backlash, superior positioning accuracy.
The table slideways and upper surface are tempered and high frequency hardened. Both surfaces on the T-slot are precision ground, giving an accurate reference for machining.
The body & base, and Z-travel slideway are one piece constructed.
Automatic lubrication for X, Y and Z-axis slideways and feed screws ensures accurate motion for all parts. Lubrication interval is 60 minutes.
Specification
MODEL | SHCM-97A |
Spindle speeds | 75~3600 RPM 16 STEPS |
Spindle nose taper | NST#40 |
Head tilt (R & L) | 45° (R &L) |
Overarm travel | 450 MM |
Quill travel | 140 MM |
Distance from spindle nose to table | 0~520 MM |
Distance from spindle center to column | 165~615 MM |
Automatic spindle feed speed | 0.035/0.07/0.14 MM (PER REV.) |
Table area | 1200 x 260 MM |
Longitudinal travel | 650 MM |
Cross travel | 350 MM |
Vertical travel | 360 MM |
T-slot (Width x No. x Distance) | 16 x 3 x 65 MM |
Quick vertical travel | 1150 MM |
Spindle | 2.2 kW (3HP) |
Knee | 0.75 KW (1HP) |
Lubrication pump | 3W |
Head lubrication pump | 13W |
Machine dimensions | 2400 x 1610 x 2225 MM |
Packing dimensions | 1700 x 1700 x 2100 MM |
N.W. | 1680 KG |
G.W. | 2060 KG |
STANDARD ACCESSORIES
- Service tools
- Tool box
- Front and rear chip guard
OPTIONAL ACCESSORIES
- Halogen work lamp
- Spindle feed depth gauge
- Digital readout
