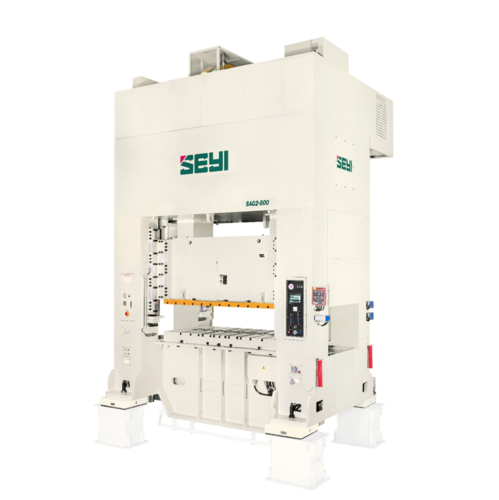

This model adopts design of central driving and 8-point guided slide that increase eccentric loading capability by 20%. It is applicable for blanking, punching, bending and forming process of large multi-process thin panels, which can even work independently, connectively or paired up with the transfer device for production over the whole line.
- Designed with tie-rod structure on the frame for minimal deflection enhance machine durability with accurate parts. Design makes it easy to integrate automation.
- Excellent performance in automatic feed, progressive die or single stroke applications.
- The SAG slide is guided with 8-point guided slide and adjusted with eccentric bolts.
- Stand-alone operating console, intuitive read outs and easy to use, convenient, controls.
Model |
SAG2-300 |
SAG2-400 |
SAG2-500 |
||||||
Type |
S |
H |
S |
H |
S |
H |
|||
Tonnage Capacity |
kN |
3000 |
4000 |
5000 |
|||||
Stroke Length |
mm |
300 |
200 |
400 |
250 |
450 |
250 |
||
Stroke per Minute |
spm |
15~30 |
25~50 |
15~26 |
25~50 |
12~22 |
25~50 |
||
Tonnage Rating Point |
mm |
13 |
6.5 |
13 |
6.5 |
13 |
6.5 |
||
Die Height |
mm |
600 |
700 |
700 |
|||||
Slide Adjustment |
mm |
200 |
250 |
250 |
|||||
Slide Area(LR×FB) |
1 |
mm |
2200×1200 |
2500×1400 |
2500×1450 |
||||
2 |
2500×1200 |
2800×1400 |
2800×1450 |
||||||
3 |
2800×1200 |
3100×1400 |
3100×1450 |
||||||
4 |
3100×1200 |
3400×1400 |
3400×1450 |
||||||
5 |
3400×1200 |
3700×1400 |
3700×1450 |
||||||
Bolster Area(LR×FB) |
1 |
mm |
2200×1370 |
2500×1400 |
2500×1450 |
||||
2 |
2500×1370 |
2800×1400 |
2800×1450 |
||||||
3 |
2800×1370 |
3100×1400 |
3100×1450 |
||||||
4 |
3100×1370 |
3400×1400 |
3400×1450 |
||||||
5 |
3400×1370 |
3700×1400 |
3700×1450 |
||||||
Bolster Thickness |
mm |
180 |
180 |
180 |
|||||
Window Opening |
Bolster Only |
FB × UD |
mm |
1000×500 |
1100×600 |
1200×600 |
|||
Front to Back Rolling Bolster |
1000×500 |
1100×600 |
1200×600 |
||||||
Left to Right Rolling Bolster |
1670×700 |
1700×800 |
1750×800 |
||||||
Upper Die Weight* |
Ton |
3 |
4 |
4.5 |
|||||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
|||||
Bolster Height |
Fixed Bolster |
mm |
850 |
850 |
850 |
||||
Rolling Bolster |
660 |
660 |
660 |
||||||
Main Motor |
w/o Die Cushion |
kW×P |
37×4 |
45×4 |
55×4 |
||||
w/ Die Cushion |
|||||||||
Die Cushion |
Type** |
bellows |
cylinder |
cylinder |
|||||
Capacity |
kN |
550 |
— |
600 |
— |
800 |
— |
||
Stroke Length |
mm |
150 |
— |
200 |
— |
220 |
— |
||
Adjustment |
mm |
— |
— |
200 |
— |
220 |
— |
||
Die Cushion Area(LR×FB) |
1 |
mm |
1700×900 |
— |
2000×900 |
— |
2000×950 |
— |
|
2 |
2000×900 |
— |
2300×900 |
— |
2300×950 |
— |
|||
3 |
2300×900 |
— |
2600×900 |
— |
2600×950 |
— |
|||
4 |
2600×900 |
— |
2900×900 |
— |
2900×950 |
— |
Model |
SAG2-600 |
SAG2-800 |
|||||
Type |
S |
H |
S |
H |
|||
Tonnage Capacity |
kN |
6000 |
8000 |
||||
Stroke Length |
mm |
450 |
250 |
450 |
300 |
||
Stroke per Minute |
spm |
12~22 |
25~50 |
10~20 |
20~40 |
||
Tonnage Rating Point |
mm |
13 |
6.5 |
13 |
6.5 |
||
Die Height |
mm |
700 |
800 |
||||
Slide Adjustment |
mm |
250 |
300 |
||||
Slide Area(LR×FB) |
1 |
mm |
2500×1550 |
2800×1550 |
|||
2 |
2800×1550 |
3100×1550 |
|||||
3 |
3100×1550 |
3400×1550 |
|||||
4 |
3400×1550 |
3700×1550 |
|||||
5 |
3700×1550 |
4000×1550 |
|||||
Bolster Area(LR×FB) |
1 |
mm |
2500×1550 |
2800×1550 |
|||
2 |
2800×1550 |
3100×1550 |
|||||
3 |
3100×1550 |
3400×1550 |
|||||
4 |
3400×1550 |
3700×1550 |
|||||
5 |
3700×1550 |
4000×1550 |
|||||
Bolster Thickness |
mm |
250 |
250 |
||||
Window Opening |
Bolster Only |
FB × UD |
mm |
1300×600 |
1500×700 |
||
Front to Back Rolling Bolster |
1300×600 |
1500×700 |
|||||
Left to Right Rolling Bolster |
1850×800 |
1850×900 |
|||||
Upper Die Weight* |
Ton |
5 |
5.5 |
||||
Required Air Pressure |
MPa |
0.55 |
0.55 |
||||
Bolster Height |
Fixed Bolster |
mm |
850 |
850 |
|||
Rolling Bolster |
660 |
660 |
|||||
Main Motor |
w/o Die Cushion |
kW×P |
55×4 |
75×4 |
|||
w/ Die Cushion |
|||||||
Die Cushion |
Type** |
cylinder |
cylinder |
||||
Capacity |
kN |
1000 |
— |
1200*** |
— |
||
Stroke Length |
mm |
220 |
— |
220 |
— |
||
Adjustment |
mm |
220 |
— |
220 |
— |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2000×950 |
— |
2300×950 |
— |
|
2 |
2300×950 |
— |
2600×950 |
— |
|||
3 |
2600×950 |
— |
2900×950 |
— |
|||
4 |
2900×950 |
— |
3200×950 |
— |
Model |
SAG2-1000 |
SAG2-1200 |
|||||
Type |
S |
H |
S |
H |
|||
Tonnage Capacity |
kN |
10000 |
12000 |
||||
Stroke Length |
mm |
450 |
300 |
450 |
300 |
||
Stroke per Minute |
spm |
10~20 |
20~40 |
10~20 |
20~40 |
||
Tonnage Rating Point |
mm |
13 |
6.5 |
13 |
6.5 |
||
Die Height |
mm |
800 |
800 |
||||
Slide Adjustment |
mm |
300 |
300 |
||||
Slide Area(LR×FB) |
1 |
mm |
3100×1550 |
3400×1550 |
|||
2 |
3400×1550 |
3700×1550 |
|||||
3 |
3700×1550 |
4000×1550 |
|||||
4 |
4000×1550 |
4300×1550 |
|||||
5 |
4300×1550 |
4600×1550 |
|||||
Bolster Area(LR×FB) |
1 |
mm |
3100×1550 |
3400×1550 |
|||
2 |
3400×1550 |
3700×1550 |
|||||
3 |
3700×1550 |
4000×1550 |
|||||
4 |
4000×1550 |
4300×1550 |
|||||
5 |
4300×1550 |
4600×1550 |
|||||
Bolster Thickness |
mm |
250 |
300 |
||||
Window Opening |
Bolster Only |
FB × UD |
mm |
1500×700 |
1500×700 |
||
Front to Back Rolling Bolster |
1500×700 |
1500×700 |
|||||
Left to Right Rolling Bolster |
1850×900 |
1850×900 |
|||||
Upper Die Weight* |
Ton |
6 |
7 |
||||
Required Air Pressure |
MPa |
0.55 |
0.55 |
||||
Bolster Height |
Fixed Bolster |
mm |
850 |
850 |
|||
Rolling Bolster |
740 |
740 |
|||||
Main Motor |
w/o Die Cushion |
kW×P |
90×4 |
90×4 |
|||
w/ Die Cushion |
110×4 |
||||||
Die Cushion |
Type** |
cylinder |
cylinder |
||||
Capacity |
kN |
1500 |
— |
2000 |
— |
||
Stroke Length |
mm |
220 |
— |
220 |
— |
||
Adjustment |
mm |
220 |
— |
220 |
— |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2600×950 |
— |
2900×950 |
— |
|
2 |
2900×950 |
— |
3200×950 |
— |
|||
3 |
3200×950 |
— |
3500×950 |
— |
|||
4 |
3500×950 |
— |
3800×950 |
— |
Model |
SAG4-400 |
SAG4-500 |
SAG4-600 |
||||||
Type |
S |
H |
S |
H |
S |
H |
|||
Tonnage Capacity |
kN |
400 |
500 |
600 |
|||||
Stroke Length |
mm |
400 |
250 |
450 |
250 |
450 |
250 |
||
Stroke per Minute |
spm |
15~26 |
25~50 |
12~22 |
25~50 |
12~22 |
25~50 |
||
Tonnage Rating Point |
mm |
13 |
6.5 |
13 |
6.5 |
13 |
6.5 |
||
Die Height |
mm |
700 |
700 |
700 |
|||||
Slide Adjustment |
mm |
250 |
250 |
250 |
|||||
Slide Area(LR×FB) |
1 |
mm |
2500×2000 |
2500×2000 |
2500×2000 |
||||
2 |
2800×2000 |
2800×2000 |
2800×2000 |
||||||
3 |
3100×2000 |
3100×2000 |
3100×2000 |
||||||
4 |
3400×2000 |
3400×2000 |
3400×2000 |
||||||
5 |
3700×2000 |
3700×2000 |
3700×2000 |
||||||
Bolster Area(LR×FB) |
1 |
mm |
2500×2000 |
2500×2000 |
2500×2000 |
||||
2 |
2800×2000 |
2800×2000 |
2800×2000 |
||||||
3 |
3100×2000 |
3100×2000 |
3100×2000 |
||||||
4 |
3400×2000 |
3400×2000 |
3400×2000 |
||||||
5 |
3700×2000 |
3700×2000 |
3700×2000 |
||||||
Bolster Thickness |
mm |
180 |
180 |
250 |
|||||
Window Opening |
Bolster Only |
FB × UD |
mm |
1800×600 |
1800×600 |
1800×600 |
|||
Front to Back Rolling Bolster |
1800×600 |
1800×600 |
1800×600 |
||||||
Left to Right Rolling Bolster |
2300×800 |
2300×800 |
2300×800 |
||||||
Upper Die Weight* |
Ton |
7 |
7 |
8 |
|||||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
|||||
Bolster Height |
Fixed Bolster |
mm |
660 |
660 |
660 |
||||
Rolling Bolster |
|||||||||
Main Motor |
w/o Die Cushion |
kW×P |
45×4 |
55×4 |
55×4 |
||||
w/ Die Cushion |
|||||||||
Die Cushion |
Type** |
cylinder |
cylinder |
cylinder |
|||||
Capacity |
kN |
600 |
800 |
1000 |
— |
||||
Stroke Length |
mm |
200 |
220 |
220 |
— |
||||
Adjustment |
mm |
200 |
220 |
220 |
— |
||||
Die Cushion Area(LR×FB) |
1 |
mm |
2000×1300 |
— |
2000×1300 |
— |
2000×1300 |
— |
|
2 |
2300×1300 |
— |
2300×1300 |
— |
2300×1300 |
— |
|||
3 |
2600×1300 |
— |
2600×1300 |
— |
2600×1300 |
— |
|||
4 |
2900×1300 |
— |
2900×1300 |
— |
2900×1300 |
— |
Model |
SAG4-800 |
SAG4-1000 |
SAG4-1200 |
||||||
Type |
S |
H |
S |
H |
S |
H |
|||
Tonnage Capacity |
kN |
800 |
1000 |
1200 |
|||||
Stroke Length |
mm |
450 |
300 |
450 |
300 |
450 |
300 |
||
Stroke per Minute |
spm |
10~20 |
20~40 |
10~20 |
20~40 |
10~20 |
20~40 |
||
Tonnage Rating Point |
mm |
13 |
6.5 |
13 |
6.5 |
13 |
6.5 |
||
Die Height |
mm |
800 |
800 |
800 |
|||||
Slide Adjustment |
mm |
300 |
300 |
300 |
|||||
Slide Area(LR×FB) |
1 |
mm |
2800×2200 |
3100×2200 |
3400×2200 |
||||
2 |
3100×2200 |
3400×2200 |
3700×2200 |
||||||
3 |
3400×2200 |
3700×2200 |
4000×2200 |
||||||
4 |
3700×2200 |
4000×2200 |
4300×2200 |
||||||
5 |
4000×2200 |
4300×2200 |
4600×2200 |
||||||
Bolster Area(LR×FB) |
1 |
mm |
2800×2200 |
3100×2200 |
3400×2200 |
||||
2 |
3100×2200 |
3400×2200 |
3700×2200 |
||||||
3 |
3400×2200 |
3700×2200 |
4000×2200 |
||||||
4 |
3700×2200 |
4000×2200 |
4300×2200 |
||||||
5 |
4000×2200 |
4300×2200 |
4600×2200 |
||||||
Bolster Thickness |
mm |
250 |
250 |
300 |
|||||
Window Opening |
Bolster Only |
FB × UD |
mm |
2000×700 |
2000×700 |
2000×700 |
|||
Front to Back Rolling Bolster |
2000×700 |
2000×700 |
2000×700 |
||||||
Left to Right Rolling Bolster |
2500×900 |
2500×900 |
2500×900 |
||||||
Upper Die Weight* |
Ton |
9 |
9 |
10 |
|||||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
|||||
Bolster Height |
Fixed Bolster |
mm |
660 |
740 |
740 |
||||
Rolling Bolster |
|||||||||
Main Motor |
w/o Die Cushion |
kW×P |
75×4 |
90×4 |
90×4 |
||||
w/ Die Cushion |
110×4 |
||||||||
Die Cushion |
Type** |
cylinder |
cylinder |
cylinder |
|||||
Capacity |
kN |
1200* |
— |
1500 |
— |
2000 |
— |
||
Stroke Length |
mm |
220 |
— |
220 |
— |
220 |
— |
||
Adjustment |
mm |
220 |
— |
220 |
— |
220 |
— |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2300×1500 |
— |
2600×1500 |
— |
2900×1500 |
— |
|
2 |
2600×1500 |
— |
2900×1500 |
— |
3200×1500 |
— |
|||
3 |
2900×1500 |
— |
3200×1500 |
— |
3500×1500 |
— |
|||
4 |
3200×1500 |
— |
3500×1500 |
— |
3800×1500 |
— |
* Upper die weight may vary in table size. Please contact your sales representative for more information.
* * For selecting 1200kN, 1500kN and 2000kN air cylinder die cushions, bolster area in FB should be at least 1700mm, cushion area in FB should be 1300mm.
*** For SAG2-800-1, only 1000kN die cushion is available.
* For SAG4-800-1, only 1000kN die cushion is available
※ Slide and bolster area up to 5500x1550 by request.
※ This specification is subject to change without notice.
