HEAVY STAMPING PRESSES

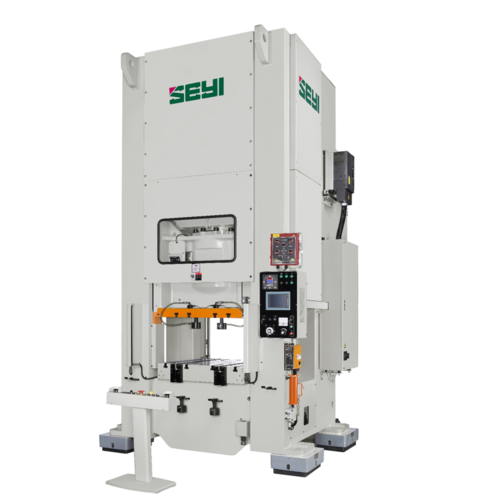

Heavy Stamping Link Press (SM1 Series)
SM1-300~800

This is generally applicable for blanking, punching, bending and forming process on small size parts produced from progressive die pressing, or single work steel plates of more than 6mm in thickness for heavy duty, which can connect with progressive die and also single punch.

Specification

Description

  • Produce well for over 6mm thick plate stamping.Link motion with a reduced touch speed and caused less vibration, noise and extended tooling life.
  • Provide stable quality by eliminating spring back problem in bending process.
  • Increased productivity by up to 40% compared to conventional presses.
  • An 8-point square slide guide that with limited gib clearance.

Specifications

Model

SM1-300

SM1-500

SM1-650

SM1-800

Type

S

H

S

H

S

S

Tonnage Capacity

kN

3000

5000

6500

8000

Stroke Length

mm

250

120

300

150

300

300

Stroke per Minute

spm

20~50

40~70

20~40

30~55

20~35

15~30

Tonnage Rating Point

mm

13

6.5

13

6.5

13

13

Die Height

mm

600

400

650

400

700

750

Slide Adjustment

mm

150

150

150

150

Slide Area(LRxFB)

mm

1000 x 900

1200 x 1100

1300 x 1200

1500 x 1300

Bolster Area(LRxFB)

mm

1000 x 1000

1200 x 1200

1300 x 1300

1500 x 1500

Bolster Thickness

mm

180

250

250

250

Bolster Height(w/ Mounts)

mm

1060

1060

1100

1200

Upper Die Weight

Ton

0.5

1

1.5

2

Main Motor

kW×P

37 x 4

45 x 4

55 x 4

75 x 4

Slide Adjustment Motor

kW×P

1.5 x 4

1.5 x 4

2 x 6

2 x 6

Window Opening(FBxUD)

 mm

600 x 450

600 x 300

700 x 550

700 x 400

800 x 600

850 x 650

Press Height

mm

4600

4300

4800

4400

5100

6000

Position of Anchor Bolts

mm

2000 x 1310

2200 x 1345

2500 x 1650

2980 x 1910

Floor Space Required

mm

2370 x 2650

2570 x 2925

2870 x 3380

3350 x 3690

Required Air Pressure

MPa

0.55

※ This specification is subject to change without notice.
