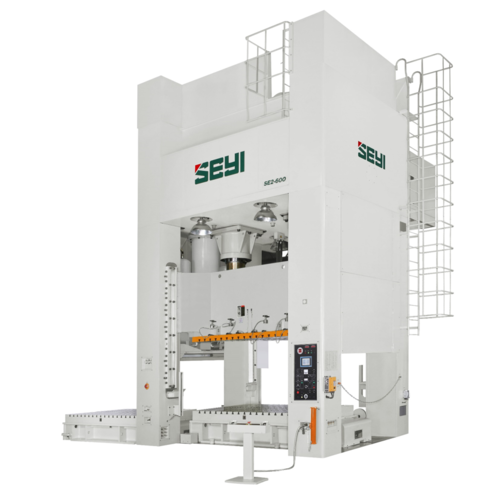

As an excellent equipment for processing high-tensile steel panels, the SE series with tough rigidity is mainly applied with large dies in automotive industry. The model adopts design of eccentric gear drive component and 8-point guided slide for high precision. The design of energy and electricity conservation allows saving more than 20% of energy and the large overload capacity extends the lifetime of use.
- Designed with tie-rod structure on the frame for minimal deflection enhance machine durability with accurate parts.
- Design makes it easy to integrate automation.
- Excellent performance in automatic feed,progressive die or single stroke applications.
- Eccentric gear drive, excellent for deep drawing and a variety of other stamping applications.
- Plunger guided to reduces lateral force during slide movement for better accuracy.
- Column mounted operating panel, intuitive read outs and easy to use, convenient, controls.
Model |
SE2-400 |
SE2-500 |
SE2-600 |
|||
Type |
S |
S |
S |
|||
Tonnage Capacity |
kN |
4000 |
5000 |
6000 |
||
Stroke Length |
mm |
500 |
500 |
500 |
||
Stroke per Minute |
spm |
15~26 |
12~24 |
12~22 |
||
Tonnage Rating Point |
mm |
13 |
13 |
13 |
||
Die Height |
mm |
700 |
800 |
800 |
||
Slide Adjustment |
mm |
300 |
400 |
400 |
||
Slide Area(LR×FB) |
1 |
mm |
2500×1400 |
2500×1450 |
2500×1550 |
|
2 |
2800×1400 |
2800×1450 |
2800×1550 |
|||
3 |
3100×1400 |
3100×1450 |
3100×1550 |
|||
4 |
3400×1400 |
3400×1450 |
3400×1550 |
|||
5 |
3700×1400 |
3700×1450 |
3700×1550 |
|||
Bolster Area(LR×FB) |
1 |
mm |
2500×1400 |
2500×1450 |
2500×1550 |
|
2 |
2800×1400 |
2800×1450 |
2800×1550 |
|||
3 |
3100×1400 |
3100×1450 |
3100×1550 |
|||
4 |
3400×1400 |
3400×1450 |
3400×1550 |
|||
5 |
3700×1400 |
3700×1450 |
3700×1550 |
|||
Bolster Thickness |
mm |
180 |
180 |
250 |
||
Window Opening |
Bolster Only |
FB × UD |
mm |
1200×600 |
1200×700 |
1350×700 |
Front to Back Rolling Bolster |
1200×600 |
1200×700 |
1350×700 |
|||
Left to Right Rolling Bolster |
1700×800 |
1750×900 |
1850×900 |
|||
Upper Die Weight* |
Ton |
5 |
6 |
6 |
||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
||
Bolster Height |
Fixed Bolster |
mm |
850 |
850 |
850 |
|
Rolling Bolster |
660 |
660 |
660 |
|||
Main Motor |
w/o Die Cushion |
kW×P |
45×4 |
55×4 |
55×4 |
|
w/ Die Cushion |
||||||
Die Cushion |
Type |
cylinder |
cylinder |
cylinder |
||
Capacity |
kN |
600 |
800 |
1000 |
||
Stroke Length |
mm |
200 |
220 |
220 |
||
Adjustment |
mm |
200 |
220 |
220 |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2000×900 |
2000×950 |
2000×950 |
|
2 |
2300×900 |
2300×950 |
2300×950 |
|||
3 |
2600×900 |
2600×950 |
2600×950 |
|||
4 |
2900×900 |
2900×950 |
2900×950 |
Model |
SE2-800 |
SE2-1000 |
SE2-1200 |
|||
Type |
S |
S |
S |
|||
Tonnage Capacity |
kN |
8000 |
10000 |
12000 |
||
Stroke Length |
mm |
600 |
600 |
800 |
||
Stroke per Minute |
spm |
10~18 |
10~18 |
10~18 |
||
Tonnage Rating Point |
mm |
13 |
13 |
13 |
||
Die Height |
mm |
1000 |
1000 |
1100 |
||
Slide Adjustment |
mm |
400 |
400 |
500 |
||
Slide Area(LR×FB) |
1 |
mm |
2800×1700 |
3100×1700 |
3400×1700 |
|
2 |
3100×1700 |
3400×1700 |
3700×1700 |
|||
3 |
3400×1700 |
3700×1700 |
4000×1700 |
|||
4 |
3700×1700 |
4000×1700 |
4300×1700 |
|||
5 |
4000×1700 |
4300×1700 |
4600×1700 |
|||
Bolster Area(LR×FB) |
1 |
mm |
2800×1700 |
3100×1700 |
3400×1700 |
|
2 |
3100×1700 |
3400×1700 |
3700×1700 |
|||
3 |
3400×1700 |
3700×1700 |
4000×1700 |
|||
4 |
3700×1700 |
4000×1700 |
4300×1700 |
|||
5 |
4000×1700 |
4300×1700 |
4600×1700 |
|||
Bolster Thickness |
mm |
250 |
250 |
300 |
||
Window Opening |
Bolster Only |
FB × UD |
mm |
1500×900 |
1500×900 |
1500×1000 |
Front to Back Rolling Bolster |
1500×900 |
1500×900 |
1500×1000 |
|||
Left to Right Rolling Bolster |
2000×1100 |
2000×1100 |
2000×1200 |
|||
Upper Die Weight* |
Ton |
7 |
7 |
8 |
||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
||
Bolster Height |
Fixed Bolster |
mm |
850 |
850 |
850 |
|
Rolling Bolster |
660 |
740 |
740 |
|||
Main Motor |
w/o Die Cushion |
kW×P |
75×4 |
90×4 |
90×4 |
|
w/ Die Cushion |
110×4 |
|||||
Die Cushion |
Type |
cylinder |
cylinder |
cylinder |
||
Capacity |
kN |
1200** |
1500 |
2000 |
||
Stroke Length |
mm |
220 |
220 |
220 |
||
Adjustment |
mm |
220 |
220 |
220 |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2300×1300 |
2600×1300 |
2900×1300 |
|
2 |
2600×1300 |
2900×1300 |
3200×1300 |
|||
3 |
2900×1300 |
3200×1300 |
3500×1300 |
|||
4 |
3200×1300 |
3500×1300 |
3800×1300 |
Model |
SE4-400 |
SE4-500 |
SE4-600 |
|||
Type |
S |
S |
S |
|||
Tonnage Capacity |
kN |
4000 |
5000 |
6000 |
||
Stroke Length |
mm |
500 |
500 |
500 |
||
Stroke per Minute |
spm |
15~26 |
12~24 |
12~22 |
||
Tonnage Rating Point |
mm |
13 |
13 |
13 |
||
Die Height |
mm |
700 |
800 |
800 |
||
Slide Adjustment |
mm |
300 |
400 |
400 |
||
Slide Area(LR×FB) |
1 |
mm |
2500×2000 |
2500×2000 |
2500×2000 |
|
2 |
2800×2000 |
2800×2000 |
2800×2000 |
|||
3 |
3100×2000 |
3100×2000 |
3100×2000 |
|||
4 |
3400×2000 |
3400×2000 |
3400×2000 |
|||
5 |
3700×2000 |
3700×2000 |
3700×2000 |
|||
Bolster Area(LR×FB) |
1 |
mm |
2500×2000 |
2500×2000 |
2500×2000 |
|
2 |
2800×2000 |
2800×2000 |
2800×2000 |
|||
3 |
3100×2000 |
3100×2000 |
3100×2000 |
|||
4 |
3400×2000 |
3400×2000 |
3400×2000 |
|||
5 |
3700×2000 |
3700×2000 |
3700×2000 |
|||
Bolster Thickness |
mm |
180 |
180 |
250 |
||
Window Opening |
Bolster Only |
FB × UD |
mm |
1800×600 |
1800×700 |
1800×700 |
Front to Back Rolling Bolster |
1800×600 |
1800×700 |
1800×700 |
|||
Left to Right Rolling Bolster |
2300×800 |
2300×900 |
2300×900 |
|||
Upper Die Weight* |
Ton |
8 |
8 |
9000 |
||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
||
Bolster Height |
Fixed Bolster |
mm |
660 |
660 |
660 |
|
Rolling Bolster |
||||||
Main Motor |
w/o Die Cushion |
kW×P |
45×4 |
55×4 |
55×4 |
|
w/ Die Cushion |
||||||
Die Cushion |
Type |
cylinder |
cylinder |
cylinder |
||
Capacity |
kN |
600 |
800 |
1000 |
||
Stroke Length |
mm |
200 |
220 |
220 |
||
Adjustment |
mm |
200 |
220 |
220 |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2000×1300 |
2000×1300 |
2000×1300 |
|
2 |
2300×1300 |
2300×1300 |
2300×1300 |
|||
3 |
2600×1300 |
2600×1300 |
2600×1300 |
|||
4 |
2900×1300 |
2900×1300 |
2900×1300 |
Model |
SE4-800 |
SE4-1000 |
SE4-1200 |
|||
Type |
S |
S |
S |
|||
Tonnage Capacity |
kN |
8000 |
10000 |
12000 |
||
Stroke Length |
mm |
600 |
600 |
800 |
||
Stroke per Minute |
spm |
10~20 |
10~20 |
10~20 |
||
Tonnage Rating Point |
mm |
13 |
13 |
13 |
||
Die Height |
mm |
1000 |
1000 |
1100 |
||
Slide Adjustment |
mm |
400 |
400 |
500 |
||
Slide Area(LR×FB) |
1 |
mm |
2800×2200 |
3100×2200 |
3400×2200 |
|
2 |
3100×2200 |
3400×2200 |
3700×2200 |
|||
3 |
3400×2200 |
3700×2200 |
4000×2200 |
|||
4 |
3700×2200 |
4000×2200 |
4300×2200 |
|||
5 |
4000×2200 |
4300×2200 |
4600×2200 |
|||
Bolster Area(LR×FB) |
1 |
mm |
2800×2200 |
3100×2200 |
3400×2200 |
|
2 |
3100×2200 |
3400×2200 |
3700×2200 |
|||
3 |
3400×2200 |
3700×2200 |
4000×2200 |
|||
4 |
3700×2200 |
4000×2200 |
4300×2200 |
|||
5 |
4000×2200 |
4300×2200 |
4600×2200 |
|||
Bolster Thickness |
mm |
250 |
250 |
300 |
||
Window Opening |
Bolster Only |
FB × UD |
mm |
2000×900 |
2000×900 |
2000×1000 |
Front to Back Rolling Bolster |
2000×900 |
2000×900 |
2000×1000 |
|||
Left to Right Rolling Bolster |
2500×1100 |
2500×1100 |
2500×1200 |
|||
Upper Die Weight* |
Ton |
10 |
10 |
11 |
||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
||
Bolster Height |
Fixed Bolster |
mm |
660 |
740 |
740 |
|
Rolling Bolster |
||||||
Main Motor |
w/o Die Cushion |
kW×P |
75×4 |
90×4 |
90x4 |
|
w/ Die Cushion |
110x4 |
|||||
Die Cushion |
Type |
cylinder |
cylinder |
cylinder |
||
Capacity |
kN |
1200* |
1500 |
2000 |
||
Stroke Length |
mm |
250 |
250 |
250 |
||
Adjustment |
mm |
250 |
250 |
250 |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2300×1500 |
2600×1500 |
2900×1500 |
|
2 |
2600×1500 |
2900×1500 |
3200×1500 |
|||
3 |
2900×1500 |
3200×1500 |
3500×1500 |
|||
4 |
3200×1500 |
3500×1500 |
3800×1500 |
Model |
SE4-1600 |
SE4-2000 |
SE4-2400 |
|||
Type |
S |
S |
S |
|||
Tonnage Capacity |
kN |
16000 |
20000 |
24000 |
||
Stroke Length |
mm |
800 |
900 |
1000 |
||
Stroke per Minute |
spm |
10~20 |
10~20 |
10~20 |
||
Tonnage Rating Point |
mm |
13 |
13 |
13 |
||
Die Height |
mm |
1200 |
1300 |
1400 |
||
Slide Adjustment |
mm |
500 |
600 |
600 |
||
Slide Area(LR×FB) |
1 |
mm |
3400×2200 |
4000×2200 |
4000×2200 |
|
2 |
3700×2200 |
4300×2200 |
4300×2200 |
|||
3 |
4000×2200 |
4600×2200 |
4600×2200 |
|||
4 |
4300×2200 |
4900×2200 |
4900×2200 |
|||
5 |
4600×2200 |
5200×2200 |
5200×2200 |
|||
Bolster Area(LR×FB) |
1 |
mm |
3400×2200 |
4000×2200 |
4000×2200 |
|
2 |
3700×2200 |
4300×2200 |
4300×2200 |
|||
3 |
4000×2200 |
4600×2200 |
4600×2200 |
|||
4 |
4300×2200 |
4900×2200 |
4900×2200 |
|||
5 |
4600×2200 |
5200×2200 |
5200×2200 |
|||
Bolster Thickness |
mm |
300 |
300 |
300 |
||
Window Opening |
Bolster Only |
FB × UD |
mm |
2000×1100 |
2000×1200 |
2000×1300 |
Front to Back Rolling Bolster |
2000×1100 |
2000×1200 |
2000×1300 |
|||
Left to Right Rolling Bolster |
2500×1300 |
2500×1400 |
2500×1500 |
|||
Upper Die Weight* |
Ton |
13 |
15 |
20 |
||
Required Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
||
Bolster Height |
Fixed Bolster |
mm |
740 |
740 |
740 |
|
Rolling Bolster |
||||||
Main Motor |
w/o Die Cushion |
kW×P |
130×4 |
150×4 |
185×4 |
|
w/ Die Cushion |
150×4 |
185×4 |
225×4 |
|||
Die Cushion |
Type** |
cylinder |
cylinder |
cylinder |
||
Capacity |
kN |
2400 |
3000 |
3000 |
||
Stroke Length |
mm |
250 |
300 |
300 |
||
Adjustment |
mm |
250 |
300 |
300 |
||
Die Cushion Area(LR×FB) |
1 |
mm |
2900×1500 |
3500×1500 |
3500×1500 |
|
2 |
3200×1500 |
3800×1500 |
3800×1500 |
|||
3 |
3500×1500 |
4100×1500 |
4100×1500 |
|||
4 |
3800×1500 |
4400×1500 |
4400×1500 |
* Upper die weight may vary in table size. Please contact your sales representative for more information.
** For SE2-800-1, only 1000kN die cushion is available.
* For SE4-800-1, only 1000kN die cushion is available.
※ Slide and bolster area up to 5500x1550 by request.
※ This specification is subject to change without notice.
