GENERAL-PURPOSE SERVO PRESSES

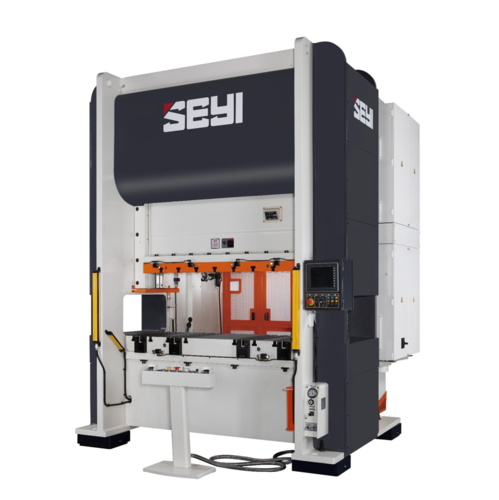

SOLID FRAME CRANK SERVO PRESS (SD SERIES)
SD1-80~300 / SD2-160~500

Suitable for application in auto parts, consumable electronics and household appliances. These can require perfect forming. By combining progressive die with pendulum curve, the productivity can possibly be doubled, which saves more than 50% of energy. Furthermore, automated transfer production line can also be added to upgrade the productivity.

Specification

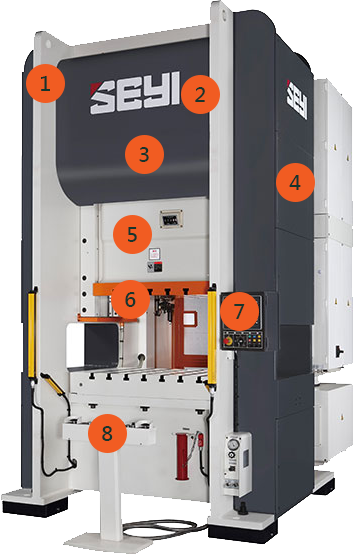

1

Intersected parallel framework, 8-point Guided Slide

The highly rigid intersected parallel framework emphasizes on longitudinal and transverse rigidity The 8-point guided slide emphasize on support with guide rails that increases stability of punch and effectively resists eccentric loading.

2

Exclusive servo motor for press machine

Low speed High torque
Features a extreme acceleration/ deceleration
Extremely precise dimensions
High efficiency
(Other brand)
Due to insufficient torque at low revolution, high revolution has to be used with deceleration as well.

3

Centralized circulation of oil lubrication

This is designed for various special servo design.

4

Energy conservation Space saving Improvement in production volume

The adoption of electrical utilizer prevents high power output at the instant of pressing (power consumption same as conventional press machine). Replacement of hydraulic machine, improvement in production volume and reduction in power consumption The pendulum movement saves energy by 50% (time of non-processing stroke saved) The noise reduces by 30 times and die lifetime extends by more than 50%.

5

8 default modes

Time of non-processing stroke saved for higher productivity Limitless press movement that stops at any position up, down and speed shifting

6

Best B.D.C. Accuracy

No hydraulic pressure on electronic overload system for less factors of variables and stable precision on bottom dead center

7

User-friendly operation interface and monitoring software

With memory capacity for 200 sets of die information, the machine speeds up efficiency in die replacement and production. The setup of “absolute value in speed” allows precise control (the curvature setup method by other brand makes calculation troublesome) on monitoring production, quality and detecting abnormity.

8

Hand wheel mode for convenient die calibration

The punch can move freely for ease of setup.

Specifications

Model

SD1-80

SD1-160

SD1-200

SD1-300

Tonnage Capacity

kN

800

1600

2000

3000

Stroke Length

mm

180

220

250

300

Stroke per Minute

spm

~ 80

~ 60

~ 50

~ 40

Tonnage Rating Point

mm

5

6

6

6

Die Height

mm

330

400

450

550

Slide Adjustment

mm

80

100

110

120

Slide Area(LRxFB)

mm

700x460

900x580

1000x670

1150x800

Bolster Area(LRxFB)

mm

950x680

1150x760

1300x870

1450x1050

Bolster Thickness

mm

140

165

180

200

Bolster Height

mm

900

940

1020

1040

Window Opening(FBxUD)

mm

680x280

760x350

870x400

1050x450

Press Height

mm

2962

3502

3819

4345

Upper Die Weight

Ton

0.3

0.5

0.8

1.3

Required Air Pressure

MPa

0.55

0.55

0.55

0.55

Die Cushion

Capacity

kN

60

80

100

140

Stroke Length

mm

95

110

130

140

Die Cushion Area(LRxFB)

mm

480x340

560x370

700x450

700x450



Model

SD2-160

SD2-200

SD2-300

SD2-400

SD2-500

Tonnage Capacity

kN

1600

2000

3000

4000

5000

Stroke Length

mm

220

250

300

350

350

Stroke per Minute

spm

~ 60

~ 50

~ 40

~ 40

~ 40

Tonnage Rating Point

mm

6

6

6

6

6

Die Height

mm

450

500

600

650

650

Slide Adjustment

mm

100

110

120

130

130

Slide Area(LRxFB)

mm

1620x580

1900x670

2280x800

2380x1000

2380x1100

Bolster Area(LRxFB)

mm

1910x760

2200x870

2580x1050

2680x1200

2680x1300

Bolster Thickness

mm

160

170

200

200

200

Bolster Height

mm

950

1000

1150

1250

1250

Window Opening(FBxUD)

mm

760x400

870x450

1050x500

1200x550

1300x550

Press Height

mm

3573

3954

4589

4939

5300

Upper Die Weight

Ton

0.8

1.3

1.8

2.5

2.7

Required Air Pressure

MPa

0.55

0.55

0.55

0.55

0.55

Die Cushion

Capacity

kN

80x2

100x2

140x2

140x2

140x2

Stroke Length

mm

110

130

140

140

140

Die Cushion Area(LRxFB)

mm

560x370x2

700x450x2

700x450x2

700x450x2

700x450x2

※ This specification is subject to change without notice.
