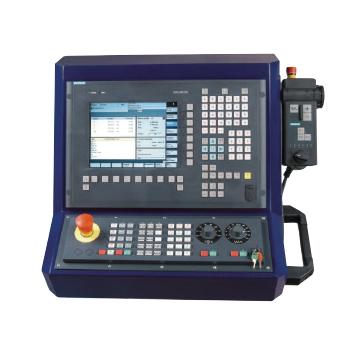

CNC Double Column Graphite Machining Center AV-97G
AV-97G

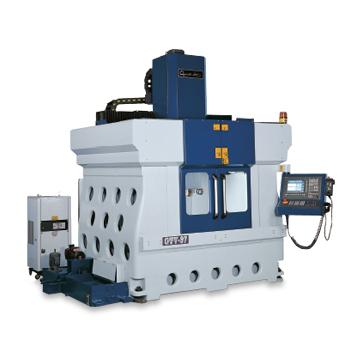

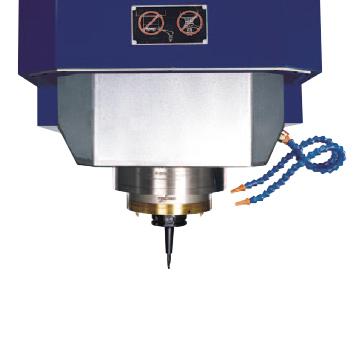

●The most suitable machinery structure Adopting full guard cover and without any transmission component under worktable. Therefore through high efficient performance from dust removal and filtration system ,we can make sure to protect the transmission components of machine . ●High efficient dust removal and filtration system . Internal airflow will sieve out the bigger particles to extend the service life of filter . The filter system will clean the attached dust automatically when the system stop running. To make sure the exhaust will not pollute the environment ,the dust must be filtered through two layer of filter. ●High speed and high performance spindle .HSK-A63 ( 200-24000) 29KW

Specification

TRAVEL
X axis (spindle left/right) 900mm
Y axis (table in/out) 600mm
Z axis (spindle vertical) 500mm
Spindle nose to table nose 150-650 mm
XYZ drive protection Torque Limit Coupler Direct
TABLE
Size 1100 x 600 mm
T-slot (W x No. x P)

X:18 x 3 x 200 mm
Y:18 x 3 x 400 mm

Table type Fixed
SPINDLE (BUILD-IN)
Speed HSK-A63 24,000 r.p.m.
Motor HSK-A63 , 29 Kw
Taper HSK-A63
Oil chiller ±1°C of ambient shop temperature
FEED RATE
Cutting feed 1-20,000 mm/min
X.Y.Z rapid traverse

20,000 mm/min (0%, 30%, 50%, 100%)

PRECISION
Position accuracy (X/Y/Z) 0.004 mm
Repeatability (X/Y/Z) 0.002 mm
AUTOMATIC TOOL CHANGER (Disk magazine)
Max. tool dia. Ø35
Max. tool length 220 mm
Max. tool weight 7 kg
Tool storage capacity 20 tools

AIR SUPPLY

Pressure / Consumption 6 kg/c㎡ / 500l/min
POWER SUPPLY
Capacity 47 KVA
COOLANT
Coolant pump 0.58 Kw x 1 , 0.2 Kw x 1
Coolant tank capacity 90 L
MACHINE SIZE
Machine (L x W x H) 3,010 x 3,716 x 3,100 mm
Machine weight 11,000 kg
DUST REMOVAL AND FILTRATION SYSTEM
Turbine motor 4 Kw , 3200 ㎡/h
Filtration dust-collection motor 0.12 Kw
Dust-Collection plant size (L x W x H) 800 x 800 x 2500 mm
Weight 240 Kg
