Ultraprecision High-speed Micro Machining Center

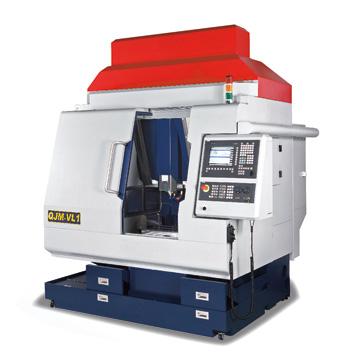

Ultraprecision High-speed Micro Machining Center QJM-VL1
QJM-VL1

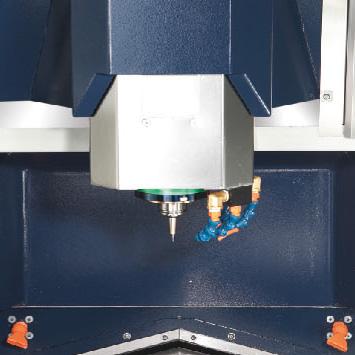

●New CSC type spindle: besides the original shaftl cooling, now provides two additional functions; ATS( air through spindle; STD) or CTS( coolant through spindle ; opt). The new equipped rotary joint (Hydraulic dynamic type) can fulfill coolant through application without speed limitation, operated under pressure 80bars, and almost maintenance free. ●Siemens controller 840Dsl, NCU730.3 ●1FN3 linear motors on 3-axes: contact and friction free drive system provides high dynamic stiffness and quick response. Siemens “ Thermo-Sandwich” cooling system guarantee low heat dissipation influence to frames. ●1FN3 combines with High precision linear guide ways (with low vibration, low friction and high rigidity) can achieve sub-micron machining accuracy. ●Machine frames by high damping composite material ●Oil cooler system for spindle, 1FN3 and spindle clamping system is under precise temperature control(±0.2°C ) and oil fine filtered 5µm. ●Z axis with precise counter balance system: provides good dynamics control, energy saving and also avoid work piece damaged when electrical power interrupted. ●Fulfill oil coolant and oil-mist machining conditions. ●Compact machine size.

Specification

Product Information

TRAVEL  X axis (spindle left / right)

  500mm

(Automatic tool changer 650mm)

Y axis (table in / out) 300 mm
Z axis (spindle vertical)  250 mm
Spindle nose to table surface(min/max) HSK-E40 / 150-400 mm
TABLE  Table area ( L x W ) 350 x 650 mm
T-slot (W x No. x P) 16 x 3 x 130 mm
Height from floor 768 mm
Max. table load (evenly distributed) 150 Kg
SPINDLE CSC TYPE Taper HSK-E40
Spindle speed  40,000 RPM
Motor 11 kW
Oil chiller  ± 0.2℃ of machine body temperature
Shaft cooling function
Spindle with ATS function, CTS function (Optional)
FEED RATE  Cutting feed  1-24,000 mm/min
X/Y/Z axis rapid traverse X:30,000 mm/min,Y/Z:24,000 mm/min (0%,30%,50%,100%)
PRECISION  Positioning accuracy 0.0015 mm
Repeatability  0.0015 mm
AUTOMATIC TOOL CHANGER Tool taper HSE-E40
Max. tool dia. Ø10
Max. tool length  150mm
Max. tool weight  3 Kg
Tool storage capacity  20 Tools / 30 Tools (Optional)
AIR SUPPLY  Pressure / Consumption  6 kg/cm2 / 500 l /min
POWER SUPPLY Capacity 40 KVA
COOLANT  Coolant pump  0.58 kW x2
Coolant tank capacity  200 L
MACHINE SIZE Machine dimension (LXWXH)

2,210 x 2,282 x 2,693 mm

2,957 x 2,282 x 2,693 mm (30支)

Machine weight  5,810 kg
