CNC 5Axis Gantry Machining Center

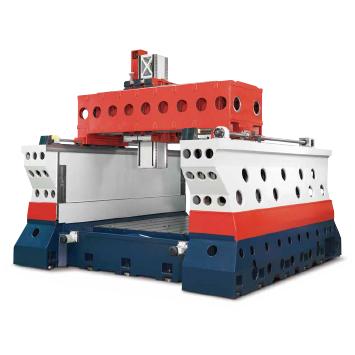

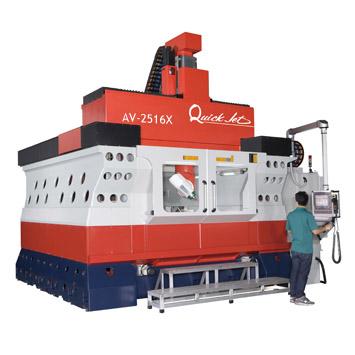

CNC 5Axis Gantry Machining Center AV-2516(H)X
AV-2516(H)X

●Extra rigid bridge type construction assures maximum stability in high speed, high efficiency cutting. ●The beam is a box type symmetrical structure and deployed with 4 ways with great span. The spindle head is built in the beam. The specially designed "Box-in-Box" symmetrical structure reduces influence by environmental temperature variation to a minimum. ●The base and table are one-piece fabricated with high loading-resistant capability. Three axis movements are not affected by work piece weight, which results in high machining accuracy and quality. ●The X-axis is driven by double servo systems in combination with the use of double linear scales for feedback control, that ensure smooth movements and permit dynamic accuracy to be fully controlled. ●Coolant through ball screws on three axis combined with rigid assembling enable the machine to achieve higher positioning accuracy and repeatability. ● Compact 5-Axis milling head with practical interface HSK-A63

Specification

TYPE
GTV-2516X
GTV-2516HX
TRAVEL
X axis
2,500 mm
Y axis
1,600 mm
Z axis
 800 mm
B axis
±110
C axis
±240
TABLE
Size
2,650 x 1,950 mm
SPINDLE ( built-in)
Spindle type
HSK-A63 CSC
Speed
1-26,000rpm
Motor
20Kw
Torque
32 Nm
FEED RATES
X/Y/Z axis rapid raverse
24,000 mm/min
B axis
47 rpm
C aixs
60 rpm
PRECISION
Positioning accuracy (X/Y/Z)
0.006 mm ( ISO230/2)
Repeatability (X/Y/Z)
<0.004 mm ( ISO230/2)
MACHINE SIZE
Machine dimension (LxWxH)
5,340 x 5,035 x 4,953 mm
5,340 x 5,035 x 5,253 mm
Machine weight
35,000 kg
 40,000 kg

Application Example:

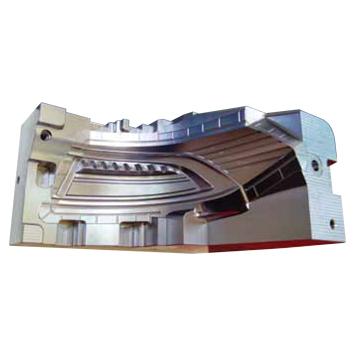

1. Automotive mold / die

*NO any polished or photoshoped works!



*NO any polished or photoshoped works!

*NO any polished or photoshoped works!

Mold
Machine
Vehicle
