Conventional Milling Machine

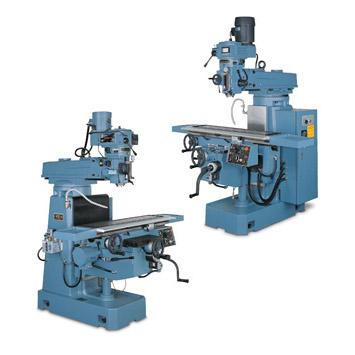

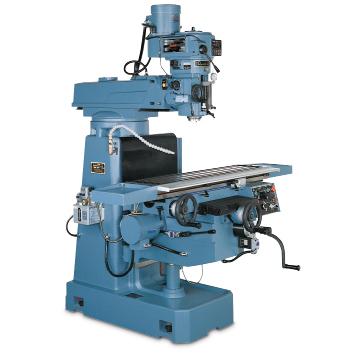

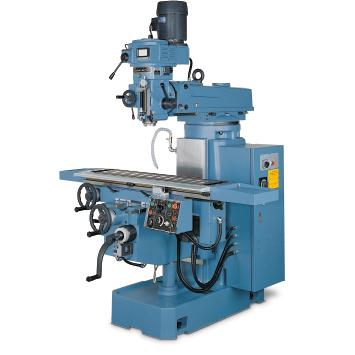

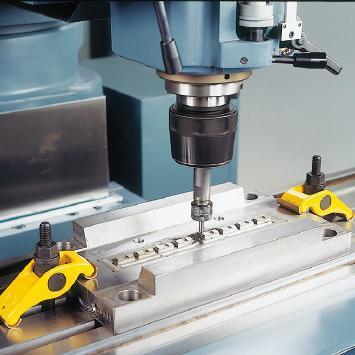

Conventional Milling Machine 2#
2#
●Spindle is made of chrome molybedenum steed (SCM-21),one piece machined, tempering and carburizing heat treated, precision ground. Spindle runs on precision bearing that offers wide cutting range. ●The gears and bearings in milling head are forced circulating lubrication that gives the excellent lubrication effect.Fitted with an oil level indicator, making assure the parts life. ●The tilting angle is 45 degrees. Double screw locking device makes the head tighten securely and release conveniently.
Specification
MODEL | QJM-A2 | QJM-S2 |
SPINDLE | ||
Spindle speed | 75 ~ 3600RPM 16 speeds | 60 ~ 3600RPM(4050RPM) Variate |
Spindle taper | NST 40 | |
Tilting angle | 45 degrees | |
Stroke | 140mm | |
Ram movement | 450mm | |
Spindle nose to table | Standard 0 ~ 530mm | |
Optional 0 ~ 630mm | ||
Auto down feed | 0.035 / 0.07 / 0.14mm | |
?WORK TABLE | ||
Table size | 1250 X 280 mm | |
X travel |
730mm |
|
Y travel | 400mm | |
Z travel | 420mm | |
T-Slot (Width x Number x Spacing) | 16mm X 3 X 64mm | |
X auto | 0 ~ 1500 mm/min | |
X speed | 3300mm/min | |
Elevation speed | 1150mm/min | |
MOTOR | ||
For main spindle | 2.2kw (3HP) | 3.7kw (5HP) |
For X-axis traverse | 0.75kw (1HP) | |
For Z-axis elevation | 0.75kw (1HP) | |
Coolant pump | 125W (1/6HP) | |
Lubrication pump | 25W | |
Magnetic pump | 13W | |
Magnetic-electric clutch | 20W | |
MACHINE | ||
Overall dimension | 1900 X 2190 X 2270mm | 1900 X 2190 X 2400mm |
Packing dimension |
1760 X 1425 X 2190mm |
1910 X 1575 X 2190mm |
Net weight | 2050kgs | 2100kgs |
Gross weighe | 2450kgs | 2500kgs |
