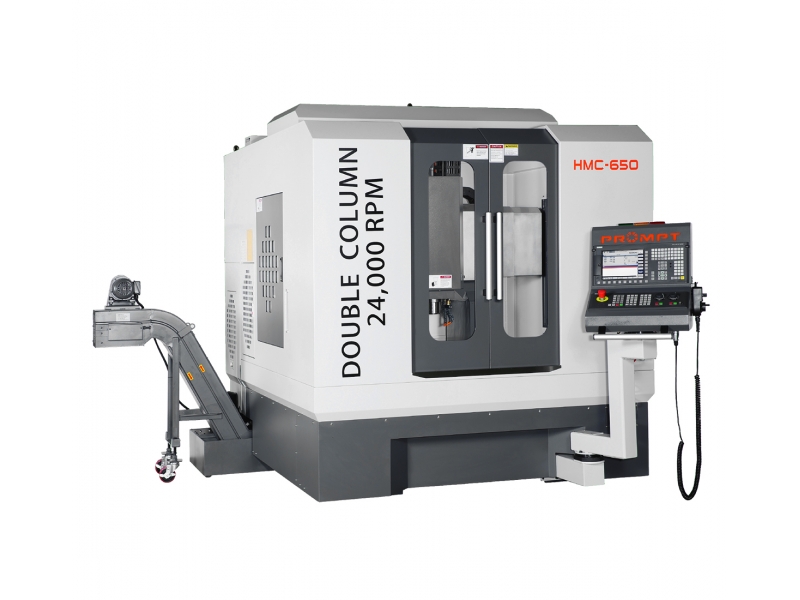

DOUBLE COLUMN HIGH-SPEED ENGRAVING AND MACHINING CENTER
DOUBLE COLUMN HIGH-SPEED ENGRAVING AND MACHINING CENTER
HMC-650
Features:
3 Axes Travel: X-600 / Y-500 / Z-270
Built-in Spindle—BT-30 24000rpm
Full splash guard
Spindle oil cooler +air conditioning for electrical cabinet
Auto lubrication system
Coolant system
X.Y Telescopic cover
Pressure-Relief Electric Lubricator(3L)
M80 controller (OP: 0i-MF, 828D)
Tools length measurement
12 Tools armless type ATC
MPG
3 colors warning light
Leveling pads & screws
Specification
* Besides HMC-650, there are various other models;
Click the pictures above or here to our official website to see more.
| MODEL | UNIT | HMC-650 | |
| Travel | X axis | mm | 600 |
| Y axis travel | mm | 500 | |
| Z axis travel | mm | 270 | |
| Spindle nose to table surface distance | mm | 130-400 | |
| Table | Size | mm | 600x550 |
| T-Slot | mm | 16x100x5 | |
| Max. loading | kg | 350 | |
| Spindle | Power | kw | 7.5 |
| Speed | r.p.m | 24000 | |
| Torque | N.m | 6 | |
| Lubrication system | type | oil-Air | |
| Rapid Feedrate (X/Y/Z) | M/min | 15/15/15 | |
| Cutting Feedrate (X/Y/Z) | mm/min | 7500 | |
| Tools | type | BT-30 | |
| ATC | Tools number | pcs | 12 |
| Max. tool diameter | mm | 16 | |
| Max. tool length | mm | 110 | |
| Tool Magazine | type | Armless | |
| X/Y/Z servo motor | kw | 1.3/1.3/2 (B) | |
| Coolant Pump | kw | 1 | |
| Machine size | cm | 220x230x230 | |
| Machine weight (appr.) | kg | 3200 | |
