Specification

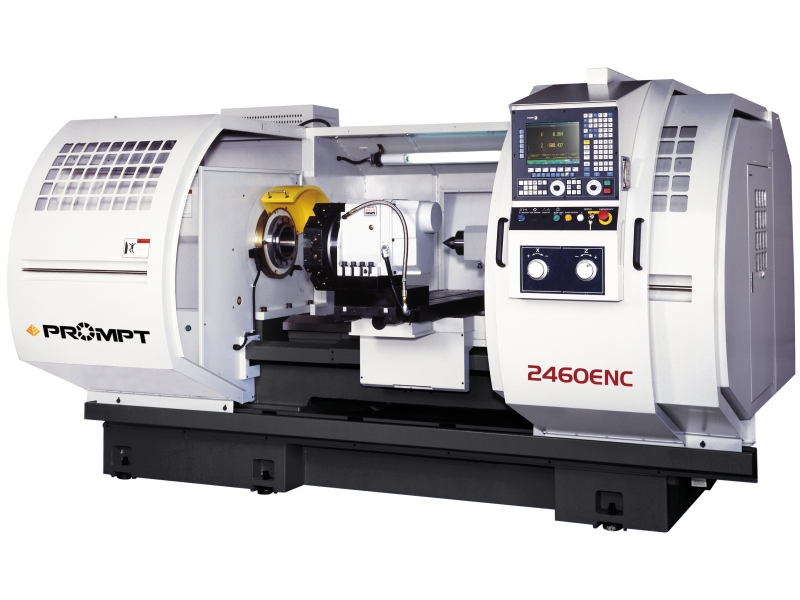

* Besides 2460ENC, there are various other models;
Click the pictures above or here to our official website to see more.
| 17" series | ||
|---|---|---|
| Item | 1740ENC | 1760ENC |
| MODEL | ||
| Machine type | Box way | |
| Machine body type | Platform | |
| CONTROLLER | ||
| Fanuc controller | 0i – Mate TDβ | |
| PROCESS FUNCTION | ||
| Swing over bed | 430 mm | |
| Max. turning dia. | 400 mm | |
| Max. turning length | 700 mm | 1200 mm |
| MOVING MEASURE | ||
| Bar capacity | 60 mm | |
| X-axis stroke | 230 mm | |
| Z-axis stroke | 700 mm | 1200 mm |
| Spindle Speed | 2200 rpm | |
| SPINDLE | ||
| Spindle nose | A2-6 | |
| Spindle thru-hole dia. | 61 mm | |
| Spindle bearing insidedie | 85 mm | |
| TURRET | ||
| Turret | Electric square tool post | |
| Height of square tool | 20 /25 mm | |
| Dia. Of boring bar holder | 20 / 25 mm | |
| TAILSTOCK | ||
| Stroke of tailstock | 130 mm | |
| Tail sleeve dia. | 60 mm | |
| Taper of tailstock | MT.4 | |
| Tail sleeve stroke | 75 mm | |
| FEED SPEED | ||
| Rapid feed speed | X: 10 / Z: 20 m/min | |
| MOTOR | ||
| Spindle motor | 5.5 / 7.5 kw | |
| Feed axle motor | X: 0.75 / Z: 1.2 kw | |
| Lubricating oil motor | 1.5 kw | |
| Cutting oil motor | 0.25 kw | |
| Servo turret motor | 0.75 kw | |
| POWER | ||
| Electric power | 12 KVA | |
| Hydraulic pressure | 40 L | |
| OIL TANK CAPACITY | ||
| Lubricating oil | 1.8 L | |
| Cutting oil | 40L | |
| MACHINE | ||
| Length | 1885 mm | |
| Length of install floor till spindle center line (include chip conveyor) |
1080 mm | |
| Real size (L x W) (Not include chip conveyor) |
2805 x 1358 mm | 3310 x 1358 mm |
| Floor space requirement (L x W) | 3205 x 1358 mm | 3710 x 1358 mm |
| Packing size (L x W x H) | 3100 x 1860 x 2000 mm | 3600 x 1860 x 2000 mm |
| Net weight | 2100 kg | 2500 kg |
| Gross weight | 2300 kg | 2800 kg |
