Conventional Lathe
PML G Series- Conventional Lathe

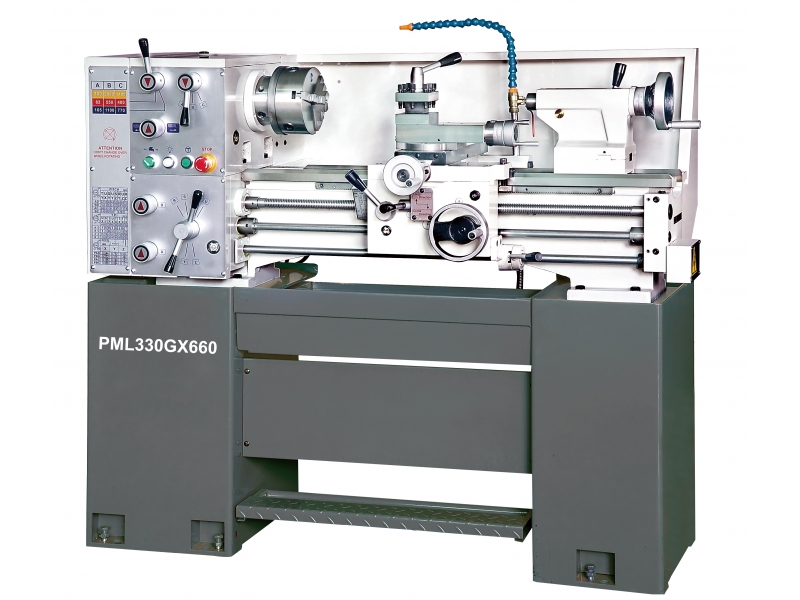

PML330G
Features:
Bed is made of high tensile cast iron FC 25
Hardened and ground bedways
Harden and ground gears in head stock
D1-4 camlock spindle
Metric or imperial specification depend on customer's instruction
Specification
* Besides PML330G, there are various other models;
Click the pictures above or here to our official website to see more.
| Model | PML 330G Series | PML 340G Series | PML 360G Series |
| Swing Over Bed | 330 mm (13") | 330 mm (13") | 360 mm (14") |
| Swing Over Cross Slide | 195 mm (7-5/8") | 195 mm (7-5/8") | 225 mm (8-3/4") |
| Swing Over Gap | No gap | 490 mm (19-1/4") | 520 mm (20-3/4") |
| Center Distance (mm) | 660 mm (24") | 1000 mm (40") | 1000 mm (40") |
| Bed Width | 190 mm (7-9/16") | ||
| Nubmer Of Spindle Speed | 9 | ||
| Range Of Spindle Speed | 82-2000 rpm | ||
| Bore Though Spindle | 40 mm (1-1/2") | ||
| Spindle Nose | D1-4 Camlock | ||
| Taper of Spindle Nose | MT 5 | ||
| Tailstock Quill Taper | MT 3 | ||
| Tailstock Quil Travel | 100mm (4") | ||
| Cross Slide Travel | 165 mm (6-1/2") | ||
| Compound Rest Travel | 100 mm (4") | ||
| Metric Threads | ( 30 Number ) 0.4-0.7mm PITCH | ||
| Inch Threads | ( 32 Number ) 4-56TPI | ||
| Longitudinal Feeds | 12 Nos.(0.068-0.936mm/rev) / 16 Nos.(0.0026-0.0638"/rev) | ||
| Cross Feeds | 12 Nos.(0.034-0.468mm/rev) / 16 Nos.(0.0013-0.0319"/rev) | ||
| Packing Dimension (cm) | 147*76.2*147.3 | 185.5*76.2*147.3 | 185.5*76.2*147.3 |
| Net Weight (kgs) | 580 | 600 | 620 |
| Gross Weight (kgs) | 660 | 700 | 720 |
| Standard Accessories | Optional Accessories |
| Gap Bed (PML340G / 340G only) | Steady rest |
| 2HP 1PH or 3HP 3PH main drive motor | Follow rest |
| 6" & 8" back plate (D1-4) | Face plate10" (250mm) |
| Center sleeve, MT5xMT3 & Centers | Drill chuck 13mm(1/2")w/arbor |
| 4-way tool post | Rolling center MT3 |
| Complete electric control unit | 3-jaw scroll chuck 6" (160mm) |
| Change gears | 4-jaw independent chuck 8" (200mm) |
| Floor stand | Taper turning attachment |
| 1/8HP coolant pump equipment | Quick change tool post |
| Rear splash guard | Sigle saddle stop |
| Rapid foot brake | 4-position saddle stop |
| Tool box & kits | Chuck guard |
| 5C collet closer | |
| DRO equipment | |
| Work light |
