5 Axes Machining Center
5 Axes Machining Center

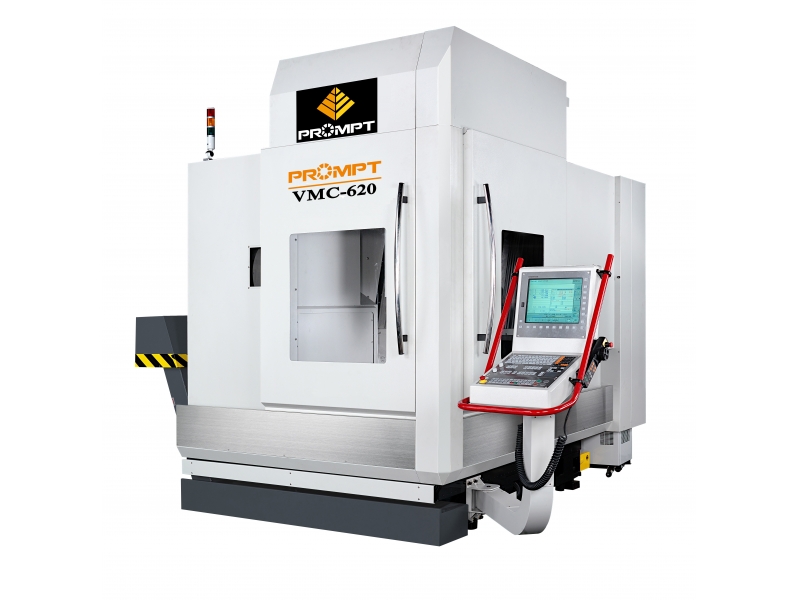

VMC-620
5 Axes Simultaneous Control CNC Machining Center
Specification
* Besides VMC-620, there are various other models;
Click the pictures above or here to our official website to see more.
| VMC-620 | |||
|---|---|---|---|
|
|||
| 2 axis Table Diameter | Ø 600 mm | ||
| T-slots geometry | Axial | ||
| T-slots numbers | 5 - n°, 2H7/H11 | ||
| T-slots dimension | 14 mm | ||
| T-slots distance - s | 100 mm | ||
| T-slots height - v | 16 mm | ||
| T-slots total height - m | 26 mm | ||
| T-slots width - i | 24 mm | ||
| Central hole diameter - g | Ø 60 - H7 ▼ 30 | ||
| Transmission Ratio | Rotary: 1:120 | ||
| Tilt: 1:120 | |||
| Tilt Angle Range | -40°~110° | ||
| Maximum Rotation Speed | Rotary: 16.6 rpm-1 | ||
| Tilt: 11.1 rpm-1 | |||
| Permissible Cutting Force | 40 kg-m | ||
| Fixed table | 820 x 540 mm | ||
| T-slot | 5 x 18 x 100 mm | ||
| Maximum table load | 500 kgs | ||
| TRAVEL | |||
| X / Y / Z-axis | 620/520/460 OP:(1520 / 520 / 460 mm) | ||
| B.C Axis Rapid Feedrate | 25 rpm | ||
| Maximum workpiece size | Ø520 x 330 L | ||
| Spindle Nose To Work Table Surface | 140 - 600 mm | ||
| MAXIMUM TRAVERSE SPEED | |||
| X / Y / Z-axis | 36 m/min | ||
| TOOL (40 TAPER) 24 TOOL | |||
| Maximum Length | 250 mm | ||
| Maximum Diameter | 76 mm | ||
| Without adjacent tool | 127 mm | ||
| Maximum Each Tool Weight | 7 Kgf | ||
| Tool Change Time (T - T) | 2 seconds (60Hz) | ||
| Tool Change Time (C - C) | 5 seconds (60Hz) | ||
| SPINDLE | |||
| Spindle Taper | 40 (DIN, BT, CAT, HSK) | ||
| Spindle Motor(Cont/30 min) | 10 / 12.5 kw | ||
| OTHER | |||
| Air Supply Required | 6 kg / square cm | ||
| Power Supply Required | 55 KVA / 380V | ||
| Machine Weight | 9000 - 11000 kgs | ||
| Packing size | 20'FR / 40'HQ | ||
| Standard Equipment | |
|---|---|
| Spindle speed 12000rpm | Automatic tool changer |
| Spindle oil chiller | Spindle taper: #40(DIN, BT, CAT) |
| Spindle bearing purge | 24 station tool magazine |
| Programmable cutting air blast system | Roller linear guideways |
| Coolant gun | Z axis motor with brake system |
| Air gun | Work lamp |
| Fully enclosed machining area | M30 power off |
| Large table size 650mm | Heat exchanger for electrical cabinet |
| Interlock front/ side door | Tailstock for tilt table |
| Mechanical oil/coolant separator | SIEMENS 828D |
| Optional Equipment | |
|---|---|
| Coolant through spindle | CE conformity specification |
| Programmable cutting coolant nozzle | Round metal plate type Oil Skimmer |
| Coolant cooling system | X, Y, Z optical linear scale |
| Chain type chip conveyor | B / C axis optical encoder |
| Chip cart | Air conditioner for electrical cabinet |
| Chip flushing system | Transformer |
| Laser tool length measurement system TL Micro 200 | HSK 63 20,000rpm spindle (Built-in type) |
| Contact type tool length measurement system TT140 | 15000rpm direct drive spindle |
| Work piece measurement kinematic system TT740+KHH100(250) | Software for crash protecion |
| Air supply for clamping fixture | HEIDENHAIN iTNC530 |
| ATC - 32T, 40T, 54T | |
