01

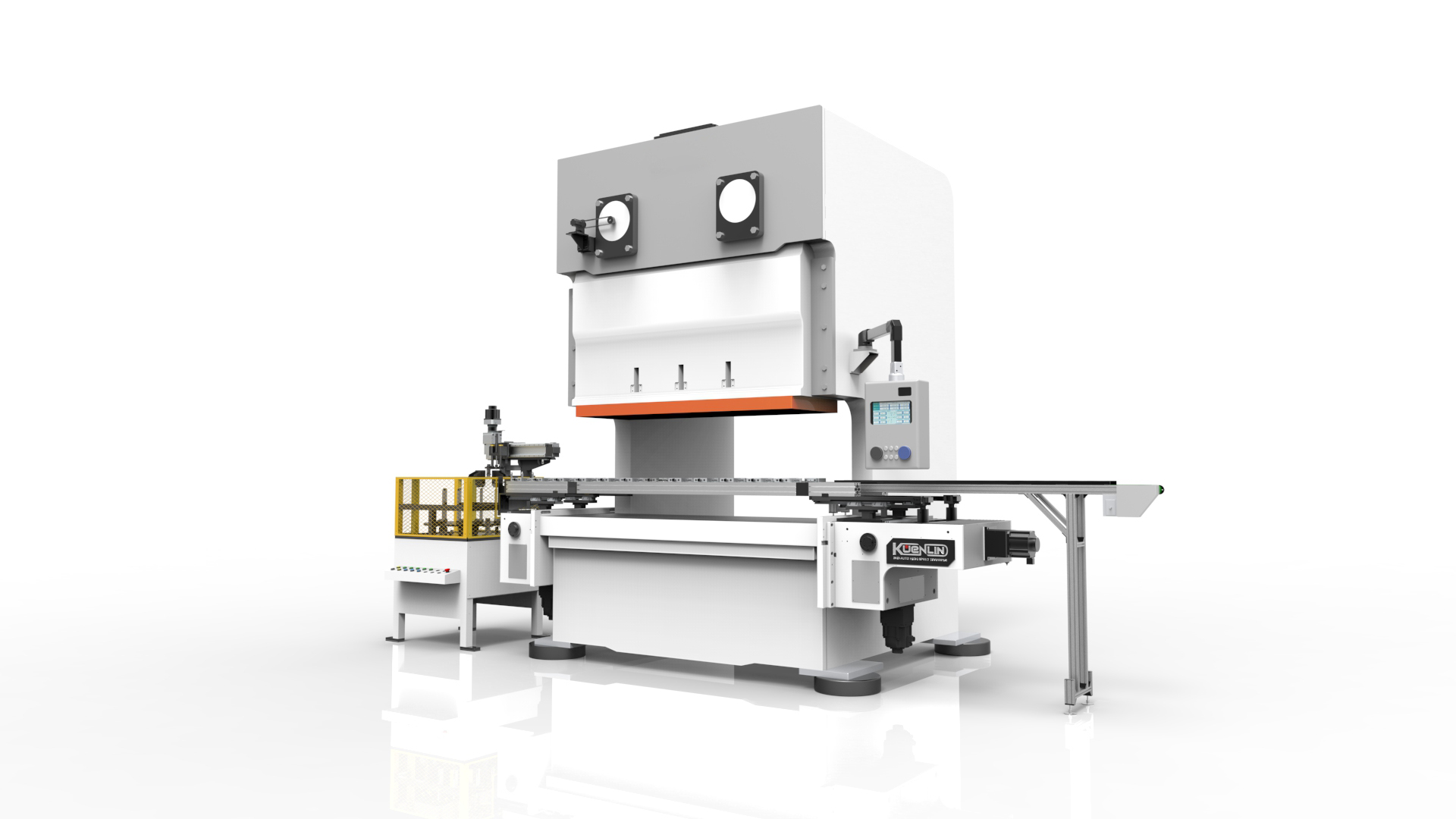

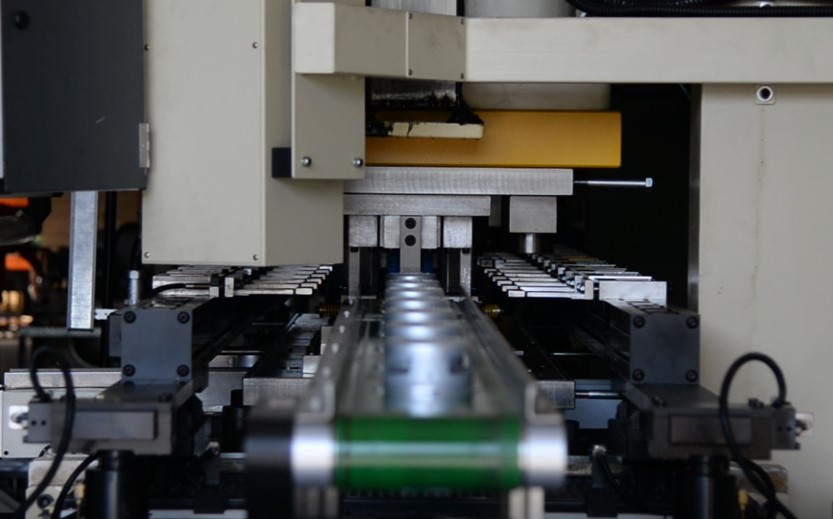

Suitable for: C-Type / H-Type / Gantry Punch Press
Characteristics: High-speed Interlinked Production
Max Speed: Max 50 spm @ X stroke: 200mm (unloading)
Applicable Table Size: Less than 2500mm for Gantry Press
Interlinking Feature: Synchronized Operation - (CAM control)
Drive Components :C3 Precision Screws (Modular Specifications) + Heavy-Duty Linear Guides
Motor Components: Yaskawa Servo Motors +BECKHOFF Controllers
Number of Motor Synchronization Axes: 5 axes
02

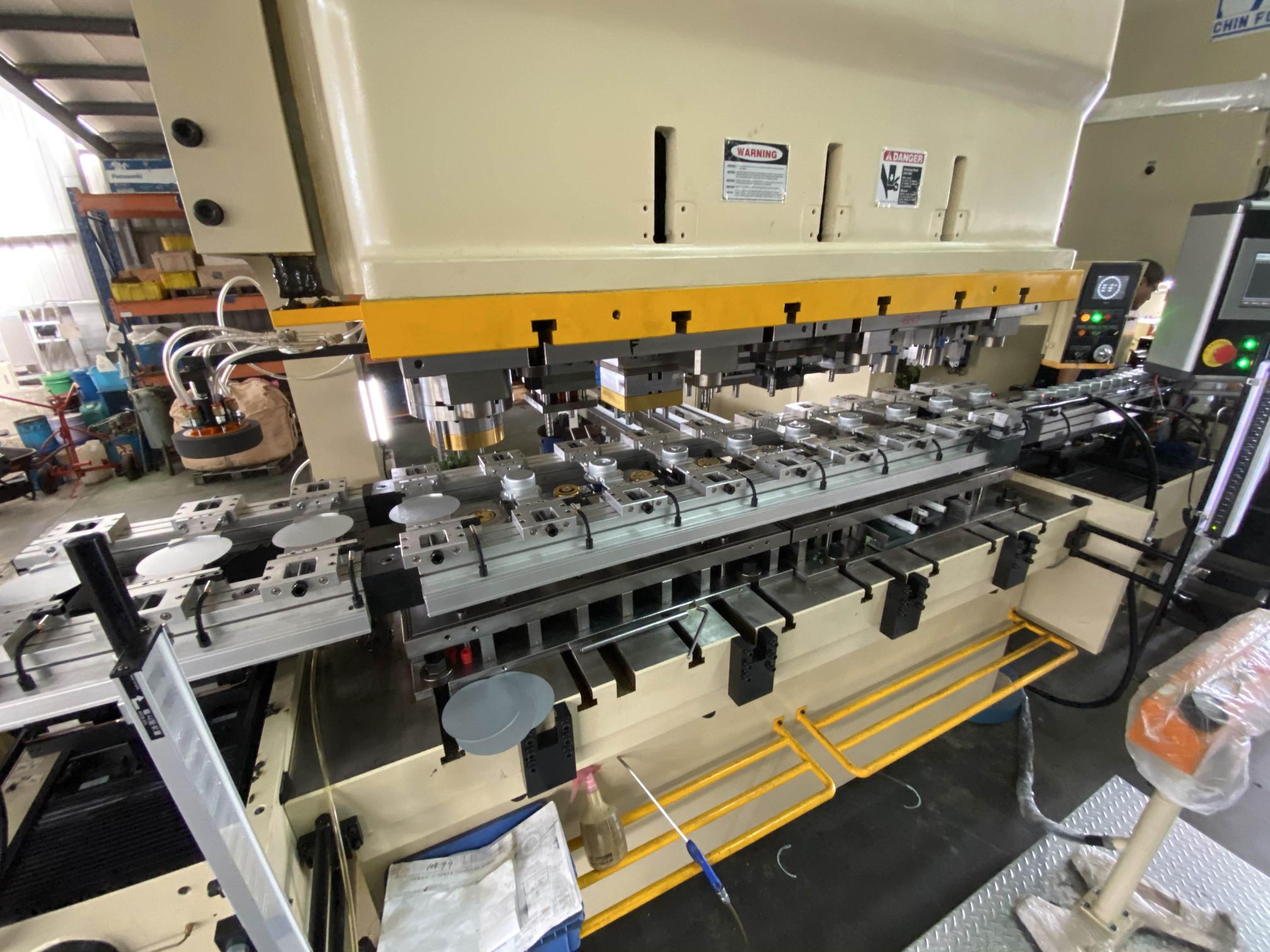

Drive components are modular, spare parts are standardized.
For external installation both left and right sides.
Suitable for mass production, and modular processes.
With dynamic accuracy values within < 0.05mm.
Have a smaller footprint.
User-friendly operation, easy addition of control modules.
Expandable for machine networking and status monitoring.
Achieves consistent production with high precision, efficiency, and a high return on investment.
|
Model |
KSV-3-250-150-50 |
|
|
Feed Stroke (X) |
0-250 |
mm |
|
Clamping Stroke (Y) |
0-150 |
mm |
|
Lift Stroke(Z) |
0-50 |
mm |
|
Distance between rails (Clamping) |
Min 350 |
mm |
|
Distance between rails (Unclamping) |
Max 650 |
mm |
|
Max move range (Including rails) |
850 |
mm |
|
Weight loading |
50 |
kgs |
|
Transfer Motion |
3-axis |
motion |
|
Stroke per minute |
35 |
spm |
