01

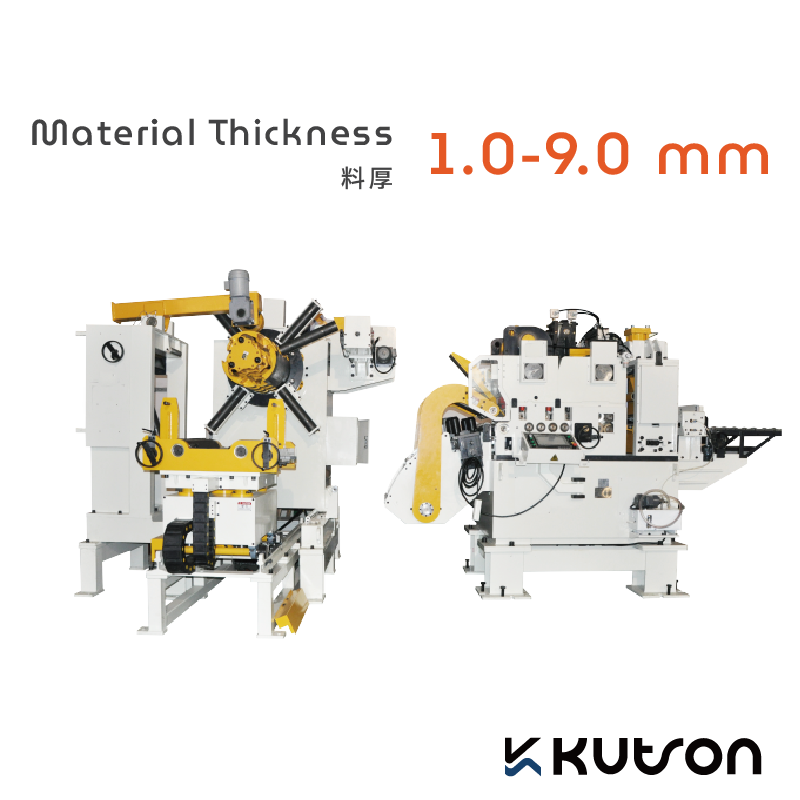

Maximum material width : 100-1800mm
Thickness of 9.0mm.
Utilizing 9 working rollers and a reinforced machine body structure
Suitable for straightening high-strength coiled materials.
Facilitating convenient cleaning and maintenance of the rollers.
Users friendly: parameter storage function for easy retrieval in subsequent uses..
Load Capacity: Up to 15 tons
Optional accessories include oil coating device, hydraulic shear, and material support arms.
02
Equipped with renowned Yaskawa servo systems, ensuring high-precision feeding.
Safety Operation: Utilizes an integrated control system with a self-diagnostic system, ensuring the safety of operators.
Diverse Model Options: Customer requirements can be discussed with our personnel for special specifications.
Produced for: Automotive parts, precision instruments, mechanical automation and electrical components.
| Model | TLF5-600 |
|---|---|
| Coil Width | 70-600 |
| Coil Thickness | 1.0-9.0 |
| Coil Weigh | 5000 |
| Max Coil O.D. (mm) | 1400 |
| Max Coil I.D. (mm) | 508 |
| Max Feeding Length | ~500※ |
| Feeding Speed | 16 |
| Straightening Roll | Upper5 /Lower4 |
| Back Pressure Roller | Provided |
| Feed Accurary | ±0.2mm |
| Servo Motor | 15 |
| Uncoiler Motor | 3.7 |
| Uncoiler Expansion | Hydraulic |
| Power Voltage | AC220V 60HZ / AC380V 60HZ |
| Operating Air Pressure | 0.49 |
| Feeding Level | 1200±100 |
| Standard Price(USD) | VIP |
* Join member to unlock the VIP price
* Kutron Technology reserves the right to explain price modifications and price changes.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.
