01

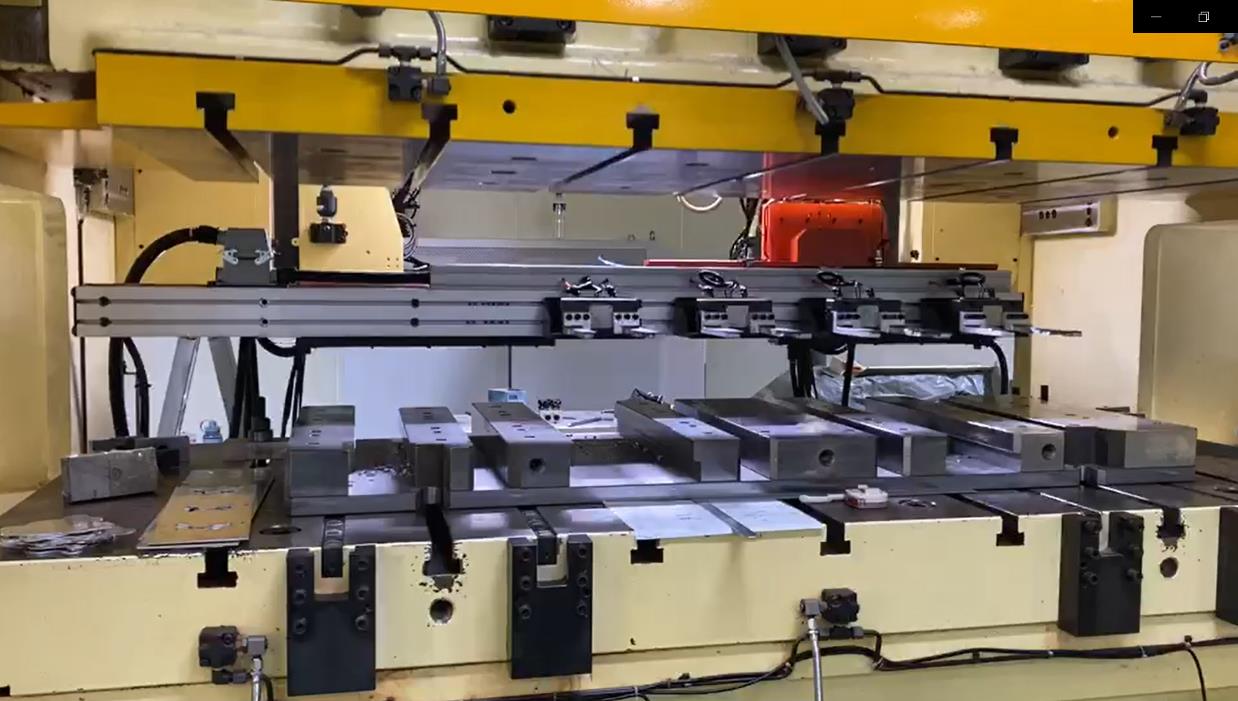

Suitable for: Medium to Small Press
Characteristics: High-speed Interlinked Production
Max Speed: Max 30 spm @ X stroke: 300mm (unloading) TBD customize*
Applicable Table Size: Defined for Gantry Press
Press Interlinking Feature: Synchronized Operation - (CAM control)
Drive Components : KL Grinding Low Backlash Gear Rack (Modular Specifications) + Heavy-Duty Linear Guides
Motor Components: Yaskawa Servo Motors + BECKHOFF Controllers
Number of Motor Synchronization Axes: 5 axes
02
Equipment drive components are modular, and spare parts can be standardized.
For external installation on rear side.
Expandable with feeding and receiving systems.
With dynamic accuracy values within < 0.05mm.
Motion curves can be adjusted interactively for optimization.
Suitable for compact smaller footprint.
Expandable for machine networking and status monitoring.
Achieves consistent production with high precision, efficiency, flexibility, and a high return on investment.
|
Model |
KSBT-3-400-300-150 |
|
|
Feed Stroke (X) |
0-400 |
mm |
|
Clamping Stroke (Y) |
0-300 |
mm |
|
Lift Stroke(Z) |
0-150 |
mm |
|
Distance between rails (Clamping) |
Min 300 |
mm |
|
Distance between rails (Unclamping) |
Max 700 |
mm |
|
Max move range (Including rails) |
Max 900 |
mm |
|
Weight loading |
60 |
kgs |
|
Transfer Motion |
3-axis |
motion |
|
Stroke per minute |
25 |
spm |
