01

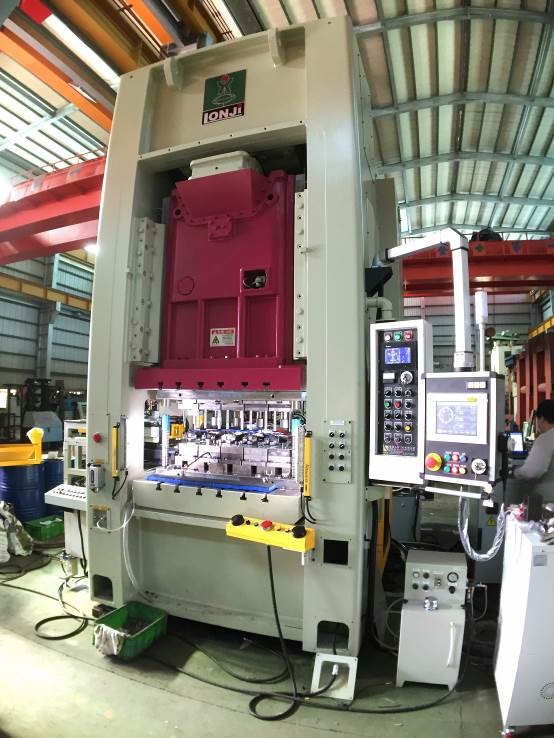

Suitable for: Small Punch Press – C-Type / H-Type / Gantry Punch Press
Characteristics: High-speed Interlinked Production
Max Speed: Max 30 spm @ X stroke: 300mm (unloading) TBD customize*
Applicable Table Size: To be defined
Interlinking Feature: Synchronized Operation - (CAM control)
Drive Components : KL Grinding Low Backlash Gear Rack (Modular Specifications) + Heavy-Duty Linear Guides
Motor Components: Yaskawa Servo Motors + BECKHOFF Controllers
Number of Motor Synchronization Axes: 3 axes
02
Drive components are modular, and spare parts can be standardized.
For internal installation on rear side.
Expandable with feeding and receiving systems.
Dynamic accuracy values within < 0.05mm.
Motion curves can be adjusted interactively for optimization.
User-friendly operation, easy addition of control modules.
Expandable for machine networking and status monitoring.
Achieves consistent production with high precision, efficiency, flexibility, and a high return on investment.
|
Model |
KSBT-3-300-150-50 |
|
|
Feed Stroke (X) |
0-300 |
mm |
|
Clamping Stroke (Y) |
0-150 |
mm |
|
Lift Stroke(Z) |
0-50 |
mm |
|
Distance between rails (Clamping) |
- |
mm |
|
Distance between rails (Unclamping) |
- |
mm |
|
Max move range (Including rails) |
- |
mm |
|
Weight loading |
50 |
kgs |
|
Transfer Motion |
3-axis |
motion |
|
Stroke per minute |
25 |
spm |
