www.3dauto.com.twProducts
01

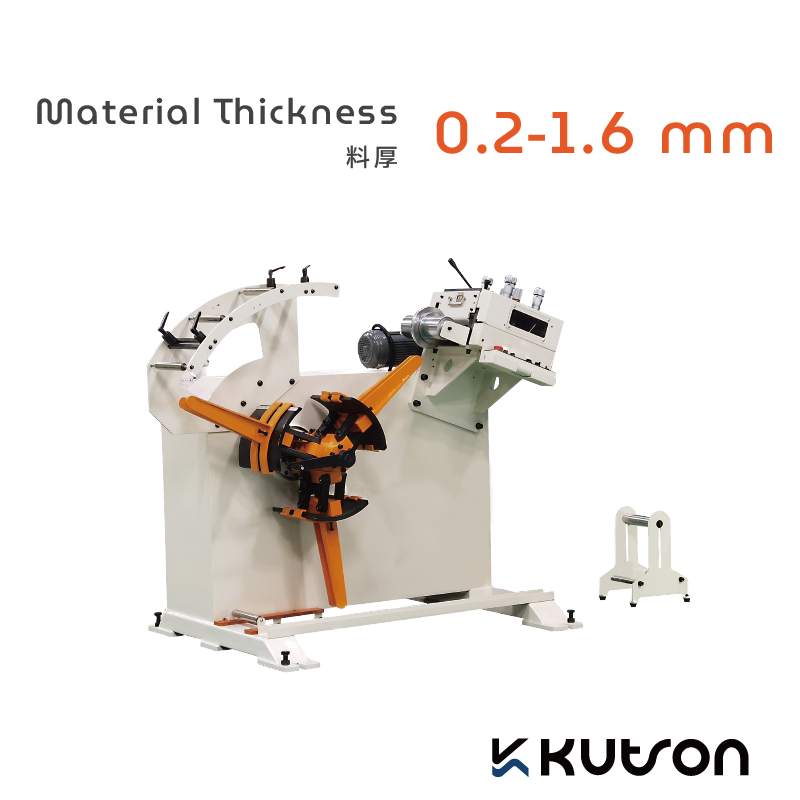

with a thickness ranging from 0.2mm to 1.6mm.
Feeding Precision: ±0.1mm
The machine head can rotate the discharge port angle (approximately 60 degrees).
Lifting Method: Nitrogen Spring (convenient for cleaning and maintenance)
02
This model is suitable for precision material decoiling and straightening (can be specially customized according to customer requirements).
Application Fields: automotive components, household appliances, consumer electronics, hardware stamping, and metal products.
Difference from General Models: More suitable for small hardware components.
| Model | TL-200S | TL-300S | TL-400S |
|---|---|---|---|
| Coil Thickness | 0.2-1.6 | 0.2-1.6 | 0.2-1.6 |
| Coil Width | 200 | 300 | 400 |
| Coil Weigh | ~1000 | ||
| Uncoiler Expansion | Manual or Hydraulic | ||
| Max Coil I.D. (mm) | 508 | ||
| Max Coil O.D. (mm) | 1200 | ||
| Standard price(USD) | $10,700 | $12,700 | $13,300 |
| Material rack with power (USD) | $1,600 | $1,600 | $1,600 |
* Join member to unlock the VIP price
* Kutron Technology reserves the right to explain price modifications and price changes.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.
