01

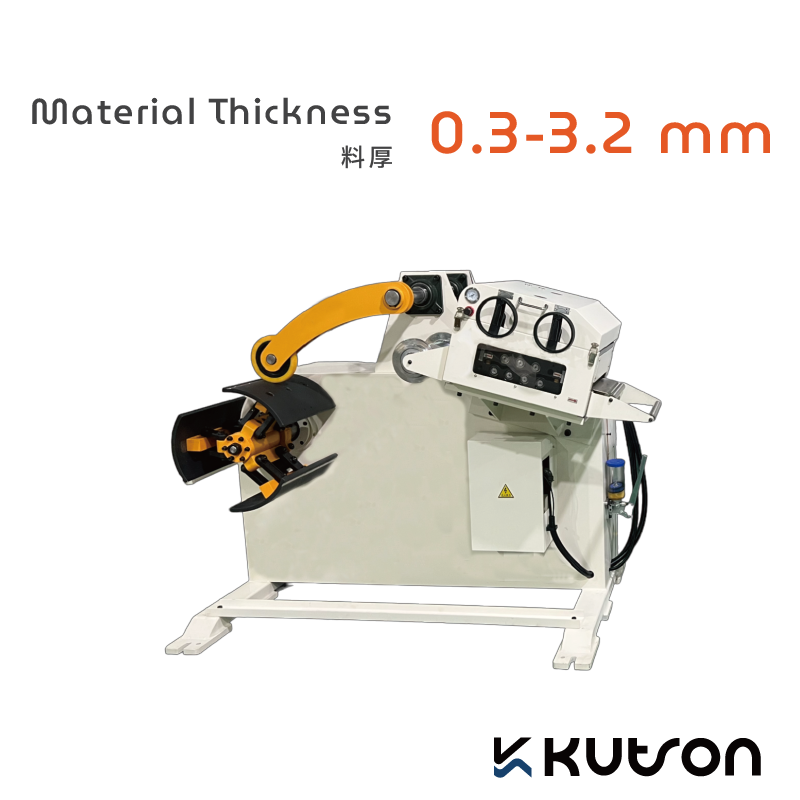

Material Thickness: Capable from 0.3 to 3.2mm.
Flexible Adjustment: The straightener can flexibly adjust the working angle based on spatial conditions.
Consistent Quality: have a consistent thickness and quality, ensuring the integrity of subsequent manufacturing processes.
Spindle Drive Motor: AC Variable Frequency Motor
Feeding Speed: 16m/min
02
Brake Method: Manual Belt Brake or Pneumatic Drum-type Clutch Brake
Application Fields: Applied in automotive components, household appliances, consumer electronics, hardware stamping, and metal products.
Produced for: Small hardware components, automotive parts, metal products, precision instruments, and electrical components.
Can be equipped with hydraulic expansion.
| Model | TL- 200 | TL- 300 | TL- 400 | TL- 500 | TL- 600 |
|---|---|---|---|---|---|
| Coil Thickness | 0.3 -3.2 | 0.3 -3.2 | 0.3 -3.2 | 0.3 -3.2 | 0.3 -3.2 |
| Coil Width | 200 | 300 | 400 | 500 | 600 |
| Coil Weigh | 1000 | 1500 | 2000 | 2500 | 2500 |
| Uncoiler Expansion | Manual | ||||
| Coil I.D. (mm) | Φ508 | ||||
| Max Coil O.D. (mm) | Φ1200 | ||||
| Standard Price(USD) | $5,300 | $6,000 | $6,700 | $7,800 | VIP |
| Optional: Hydraulic (USD) | $2,000 | $2,000 | $2,300 | $2,600 | VIP |
| Optional: Press arm (USD) | $900 | $900 | $900 | $900 | VIP |
* Join member to unlock the VIP price
* Kutron Technology reserves the right to explain price modifications and price changes.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.
