DYPV-S-Vacuum Type Rubber Compression Molding Machine

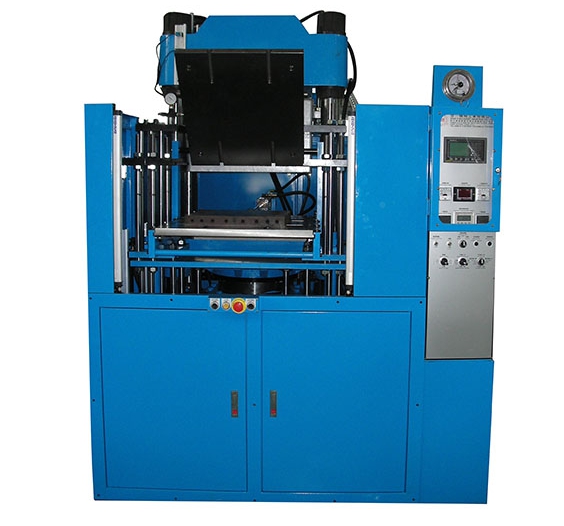

DYPV-S-*-3RT-CE-Vacuum Type Rubber Compression Molding Machine
DYPV-S-*-3RT-CE

Description

Since the establishment in 1989, we have been devoted in producing Rubber Compression Molding Machine. This Vacuum Type Rubber Compression Molding Machine features its high quality and long-lasting performance so it is really loved by our loyal customers. Please contact us when you have any question or needs!

Specification

                                                                                                                                                                                                       ● 用途 Application




  適用於橡膠、電木、美耐皿、尿素製品、剎車來令及各種硬化壓縮成型....等。

 Vacuum Type Rubber Compression Molding Machine is designed for Rubber product compression forming use.






    規格Type




    DYPV-*-150





    DYPV*-200





    DYPV-*-250





    DYPV-*-350





   出力 Clamping force (ton)






                    150






                    200






                    250






                    350





   主軸直徑 Piston diameter  (mm)







                    300






                    355






                    400






                    460





熱盤尺寸Heating platen size (mm)








                420x440






                    520x540






                    570x600






                    680x680





模板尺寸 Mold  platen size (mm)







                410x458






                    506x560






                    540x650






                    700x750





 主軸行程Main piston stroke (mm)







                300






                300






                300






                300





電熱容量Heater capacity (kw)








                4.5x2






                    6.0x2






                    7.2x2






                     9.6x2





 馬達馬力 Motor horsepower (hp)








                3HP






        5HP






        5HP






        7.5HP



               S:單機single unit
            D:雙機Double  unit




.
        真空壓縮成型機特殊離型機械可依客戶需求安裝。

        Vacuum Type Rubber Compression
        Molding Machine with special ejection device for mold leaving, which can
        be installed as the require of customers



                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               ● 機型說明Order
    Model Guide
