DYP-D-Rubber Compression Molding Machine

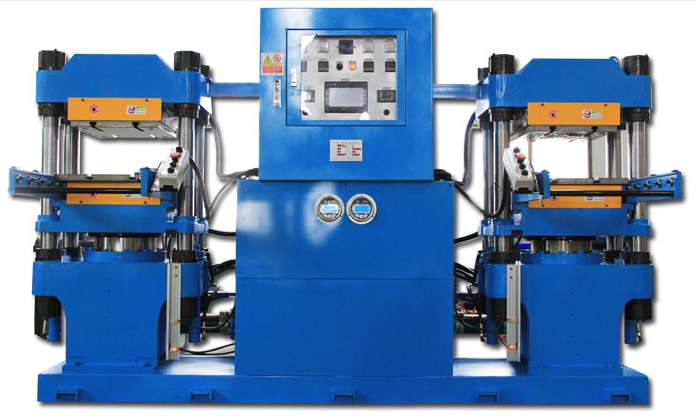

DYP-D-*-M-Vacuum Type Rubber Compression Molding Machine
DYP-D-*-M

Application:for rubber,bakelike,melamine dishes,urea product,brake lining and other hardening compression forming etc.

Specification

                                                                                                                                                                                                       ● 用途 Application




  適用於橡膠、電木、美耐皿、尿素製品、剎車來令及各種硬化壓縮成型....等。

    Rubber Compression Molding Machine is designed for Rubber product compression forming use.






    規格Type




    DYP-*-150





    DYP*-200





    DYP-*-250





    DYP-*-350





   出力 Clamping force (ton)






                    150






                    200






                    250






                    350





   主軸直徑 Piston diameter  (mm)







                    300






                    355






                    400






                    460





熱盤尺寸Heating platen size (mm)








                420x440






                    520x540






                    570x600






                    680x680





模板尺寸 Mold  platen size (mm)







                450x450






                    540x560






                    600x650






                    720x750





 主軸行程Main piston stroke (mm)







                300






                300






                300






                300





電熱容量Heater capacity (kw)








                4.5x2






                    6.0x2






                    7.2x2






                     9.6x2





 馬達馬力 Motor horsepower (hp)








                3HP






        5HP






        5HP






        7.5HP



               S:單機single unit
            D:雙機Double  unit




.
        壓縮成型機特殊離型機械可依客戶需求安裝。

         Rubber Compression
        Molding Machine with special ejection device for mold leaving, which can
        be installed as the require of customers



                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               ● 機型說明Order
    Model Guide
