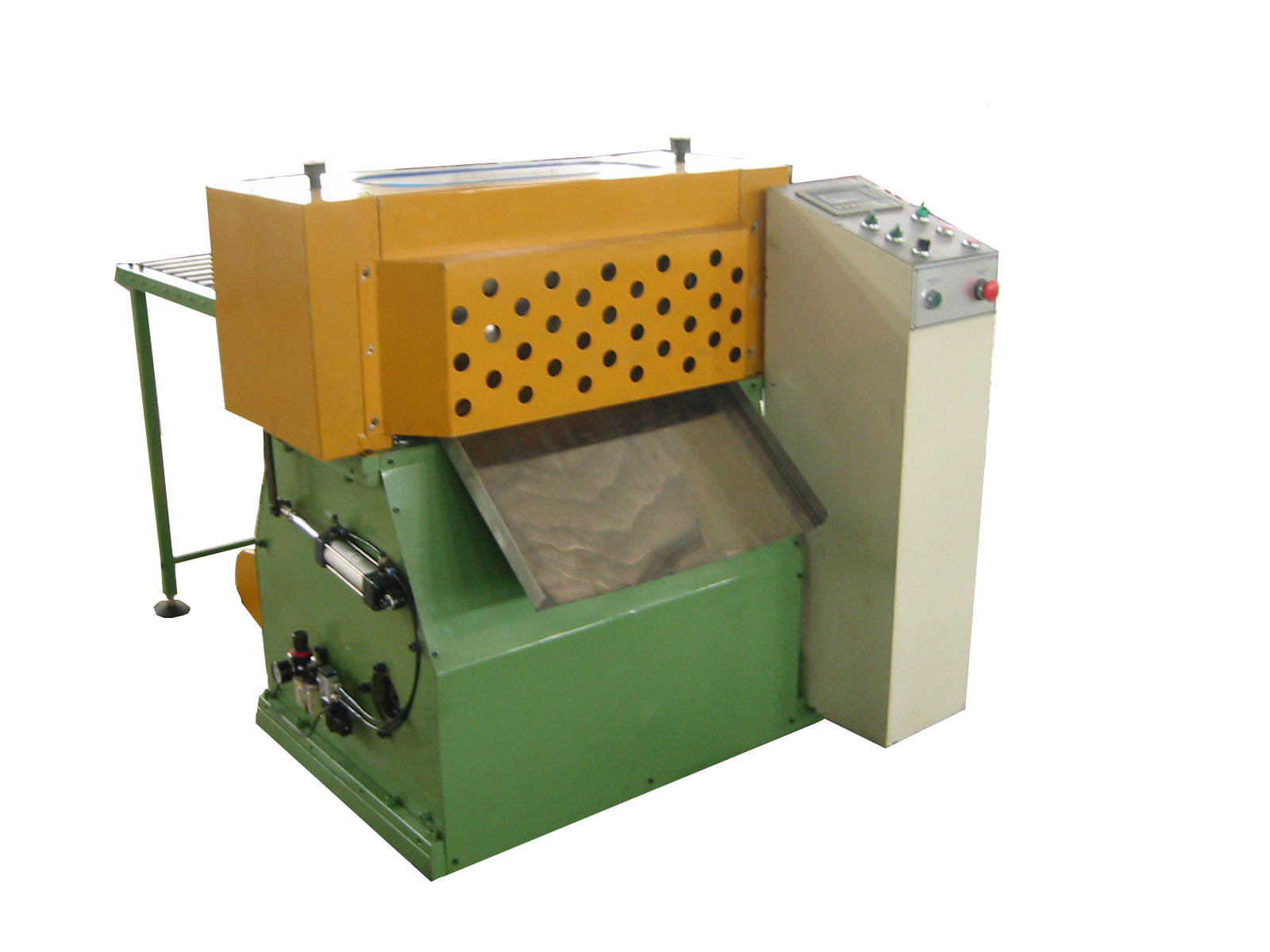

ADC-Servo Stepping Motor Auto Feeding &Cutting Machine
ADC-Servo Stepping Motor Auto Feeding &Cutting Machine
ADC-*

Features


Auto Operation : The operator only needs to feed the material manually at the begging, and then the machine can work by auto-feeding and auto-cutting


Specification


Auto Operation : The operator only needs to feed the material manually at the begging, and then the machine can work by auto-feeding and auto-cutting.


    型號  Mode

ADC-20

ADC-25

ADC-30

切料長度
Cutting Length

600mm
750mm
cutter length 900mm

切料寬度
Cutting width

1-9999mm (adjustable)
1-300mm (adjustable)
1-9999mm (adjustable)

切膠厚度
Cutting thickness

0.5-15mm
0.5-25 mm
0.5-15mm

刀具材質
Cutter material

HS
HS
HS

伺服馬達
Servo stepping motor

800W
1000W
2000W

切料速度
Cutting speed

50-100time/min (adjustable)
50-100time/min (adjustable)
50-100time/min (adjustable)

切膠精度
Cutting precision

cutting width+-1%
cutting width+-1%
cutting width+-1%

PLC

Mitsubishi (JAPAN)
Mitsubishi (JAPAN)
Mitsubishi (JAPAN)

人機介面
Human Machine Interface

Hitech
Mitsubishi
Hitech

馬達
Motor

2HP
2HP
3HP
電磁開關
Magnetic Switch
TE
TE
TE
電壓
Voltage


220V, 60HZ, 3 Phase
 或依客戶需求
or As per  Customer’s request


220V, 60HZ, 3 Phase
 或依客戶需求
or As per  Customer’s request
220V, 60HZ, 3 Phase
 或依客戶需求
 or As per  Customer’s request
機器尺寸
Machine size(L*W*H)
155 x120x120 cm

165 x120x120 cm
重量
Weight
600kg

700kg



影片連結  click and drag
https://youtu.be/ZFnS6c1N9FE
