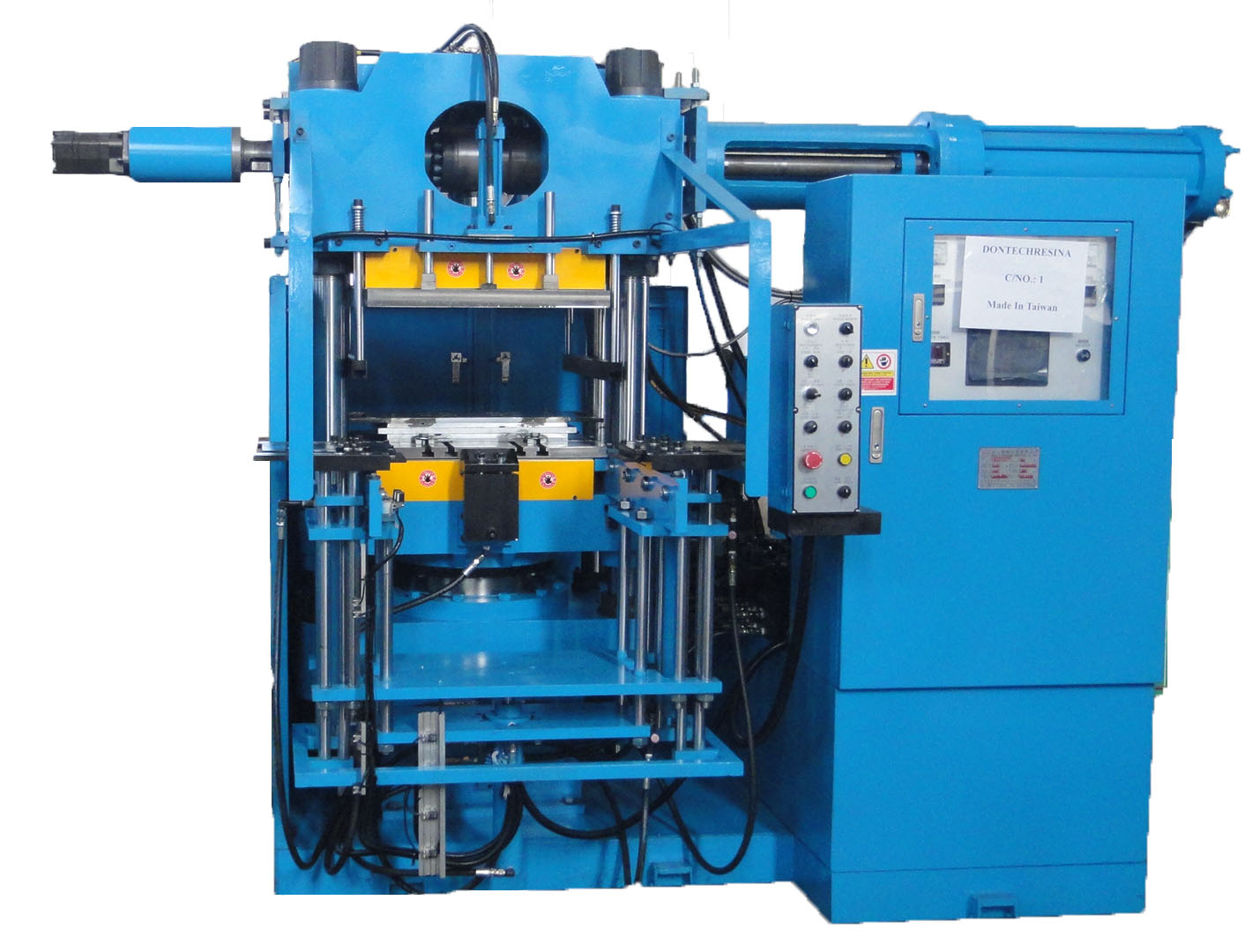

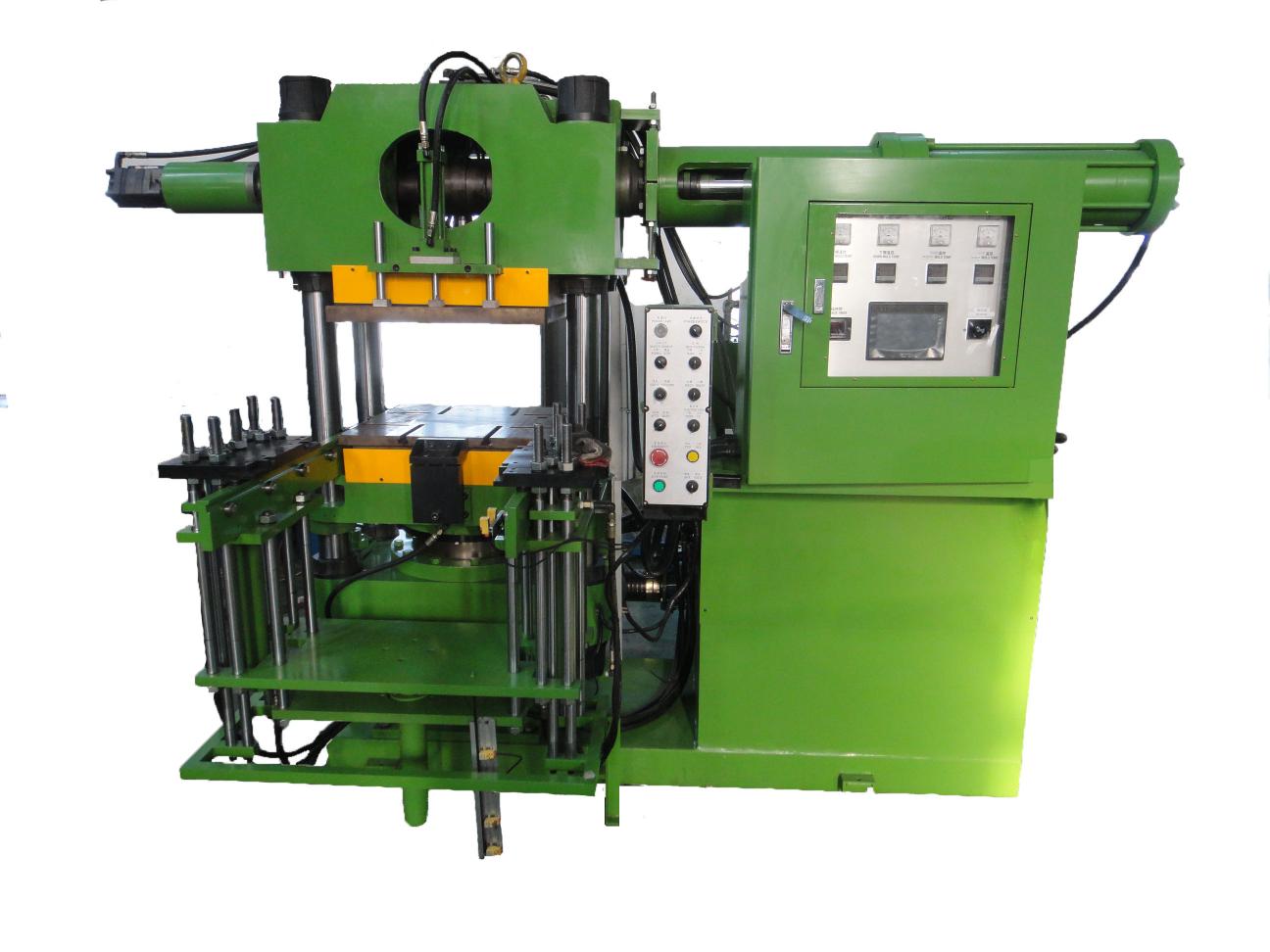

DYIJ-Rubber Injection Molding Machine
DYIJ-Rubber Injection Molding Machine
DYIJ-*

Description

As a leading manufacturer of Rubber Machine, we offer various sorts of Rubber Molding Machine, such as Rubber Injection Molding Machine, and Rubber Compression Molding, all with high quality and competitive price. Hence, This Rubber Injection Molding Machine is one of our best selling products, suitable for various application and requirements. If you have an question or needs, pleas do not hesitate to contact us.

Oil seal and various rubber parts.



Features

The use of electronic scale, precise injection volume, saving rubber material.

Specification





            型號Type



            DYIJ-150


        DYIJ-200                                                   DYIJ-250                                                         DYIJ-350
射出量(cc)
Injection volume(cc)
 600/1000 1000/1500  2000/2500 2500/3000
儲料筒直徑
Barrel diameter(mm)
        α70         α80         α80         α100
儲料筒直徑
Heating platen size(mm)
        460x460         550x550 620x620       700x700
 射出壓力
Injection pressure(kg/cm²)
        1500        1700 1900  2300
主軸行程
 Main piston srtoke(mm)
        350         450 450            450
 行程
Daylight(mm)
        450         550 550            550
 馬達
 Motor horsepower(HP)
        10HPx6P         15HPx6P  15HPx6P  20HPx6P
螺杆直徑
Scrw diameter(mm)
        Ø40         Ø40         Ø45         Ø45



影片連結  click and drag

https://youtu.be/UOIsQKbkCSc
