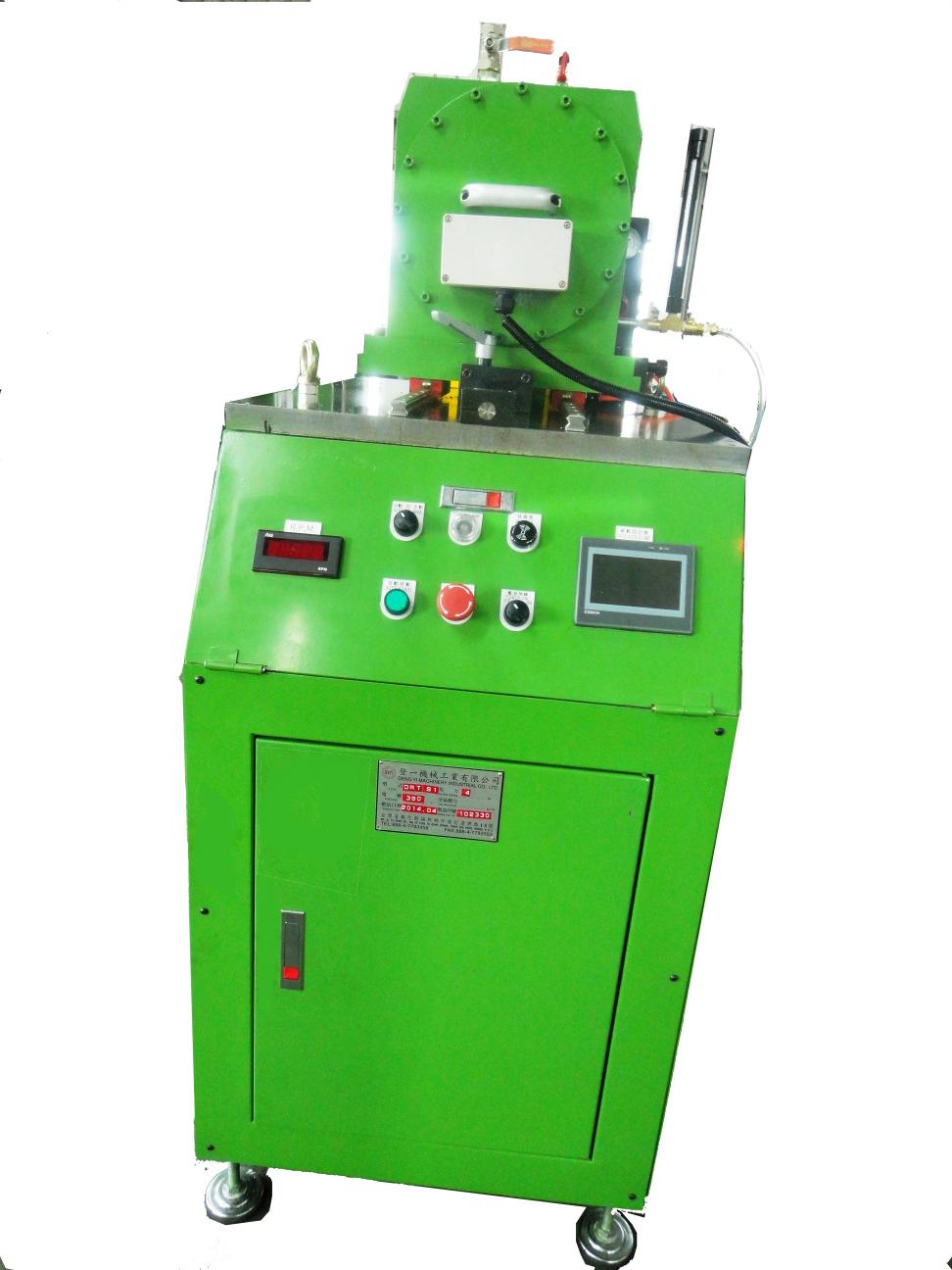

DRT-Single/Double Axis Head Oil Seal Rotation Test Machine
DTR-1-Single/Double Axis Head Oil Seal Rotation Test Machine
DRT-1

Features



  • Testing arbor can be run at clockwise and counter-clockwise.

  • Attached recorder for temperature, rotation speed and test time.

Specification





      Type


      DRT-S-1   Single   Shaft       DRT-D-2  Double   Shafts
        Power         2HP×1         2HP×2
        Test Shaft

      Single             Shaft




      Double             Shaft


        Voltage

      According             to             The             Customer’s             Assignment




      According       to       The             Customer’s             Assignment


        Heater

            1.0KW x 1




            1.0KW x 2


        Principal Shaft R.P.M         Max. 15000RPM(rotate speed adjusted)             Max. 15000RPM(rotate speed adjusted)
        Control mode         PLC. air pressure system and         Touch Screen         PLC. air pressure system and         Touch Screen
        Working Range         Outer Diameter Ø20-Ø150         Outer Diameter Ø20-Ø150
        Test temperature         Max. 180°C         Max. 180°C









            Application

Suitable for oil seals rotation durable life testing.
