VAC-Trimming Machine

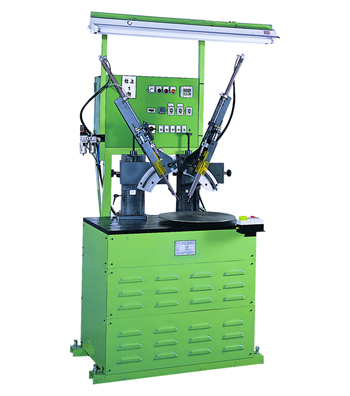

VAC-500-Heavy Duty Vacuum Cutting Machine
VAC-500



  • Heavy Duty Vacuum Cutting Machine is designed for trimming flashes of oil seal, packing and kind of soft objects use
  • Cutter level angle:0o ~ 95 o are adjustable.
  • Heavy Duty Vacuum Cutting Machine can trim the inner and the outer at the same time.
  • Heavy Duty Vacuum Cutting Machine with five stage of process, which can be setting by product induvidually.



Specification






 規格Type



        VAC-500

 動力Power
      Clutch & brake motor

主軸速度
Main shaft r.p.m.


        Adjust with converter




Electricity

      220V / 380V,     2HP, 3phase


操作控制
Operation control

      Air pressure & electric       match PLC control



加工範圍
Process range

   外徑Outer diameter:Ø200~Ø500mm
