Pistol cordless hydraulic cutters

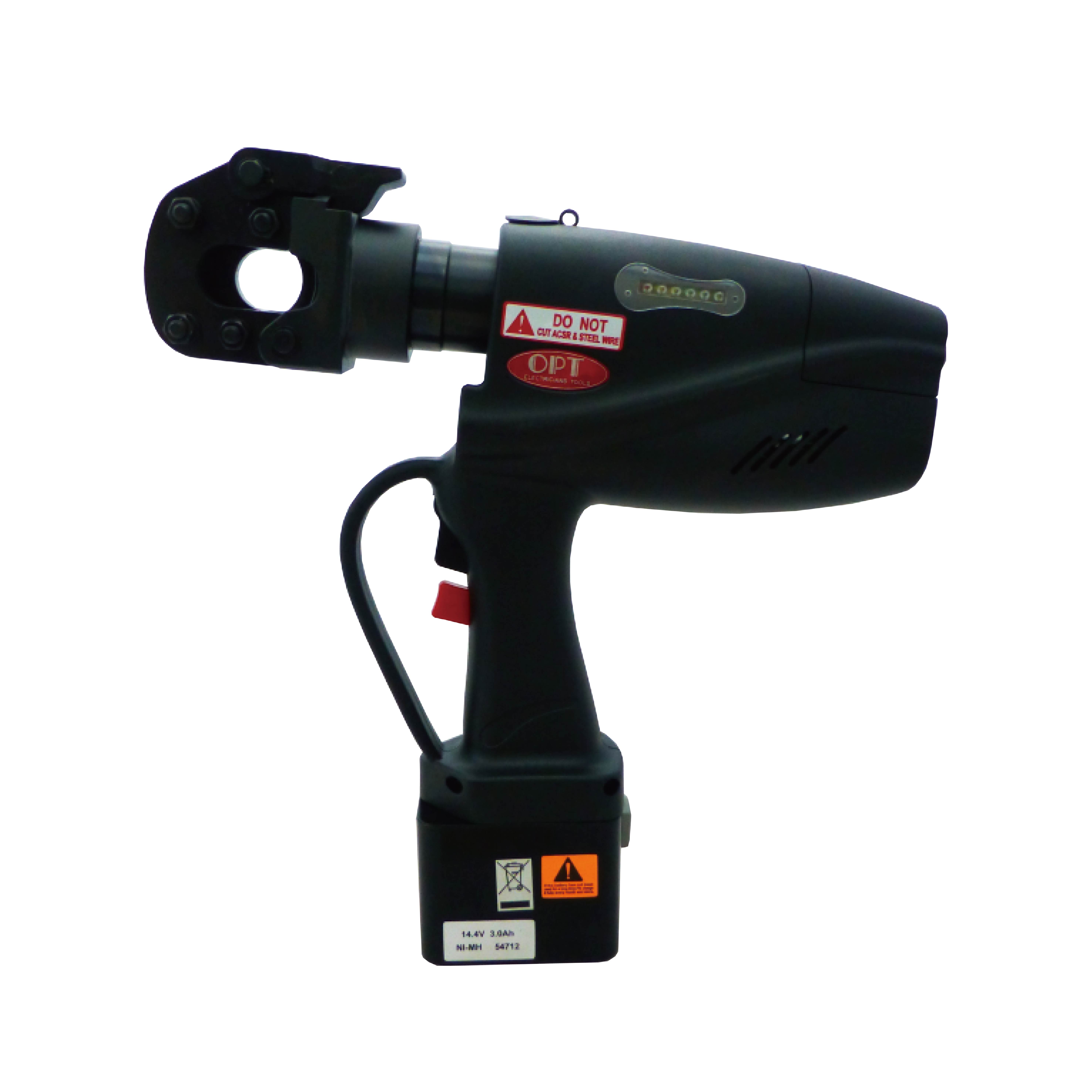

ECL-20 CORDLESS HYDRAULIC CABLE CUTTERS
ECL-20
6 tons cordless cable cutters
360 degrees swivel head
Pistol type cutters
Wire rope(hemp-core) 6x12/6x19 Max. O.D. 20mm
Soft copper & aluminum round bar Max. O.D. 20mm
Bare copper & aluminum wire strand Max. O.D. 20mm
Armored underground cable Max. O.D. 20mm
Soft steel round bar(Below SS41) Max. O.D. 16mm
Wire rope(hemp-core) 6x7 Max. O.D. 16mm
ECL-20 (14.4V Li-Ion)
Tool dimension: 325(L)x285(W)x70(H)mm
Weight: 3.7kgs excludes battery
Specification
| Model No. | Head rotation | Output | Wire rope(hemp-core) 6x12/6x19 | Soft copper & aluminum round bar | Bare copper & aluminum wire strand | Armored underground cable | Soft steel round bar(Below SS41) | Wire rope(hemp-core) 6x7 | Dimension | Weight | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ECL-20 | 360° | 6 tons | Max. O.D. 20mm | Max. O.D. 20mm | Max. O.D. 20mm | Max. O.D. 20mm | Max. O.D. 16mm | Max. O.D. 16mm | 325(L)x285(W)x70(H)mm | 3.7kgs excludes battery | Pistol type, 14.4V |
