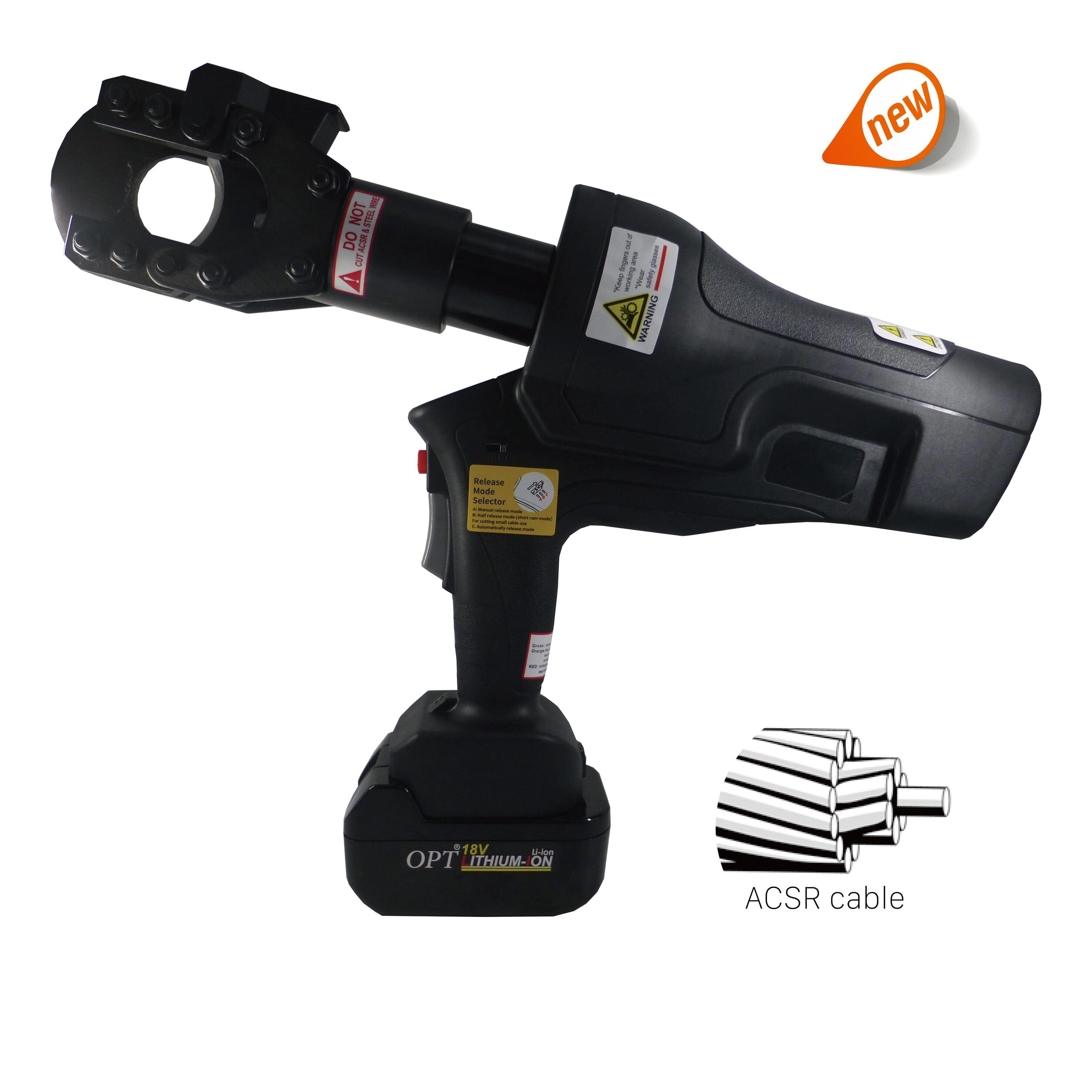

6 tons cordless cable cutters
360 degrees swivel head
Pistol type cutters
ACSR Max. Dia. 28mm
AEC-40A
Tool dimension: 435(L)x315(W)x75(H)mm
Weight: 5.7kgs excludes battery
NEW THREE-MODES AUTOMATICALLY RELEASE CRIMPERS
Release Mode Selector design, three modes, more smarter
Ergonomic design, single hand operation supported
White LED working light and current smart condition light
Protection design for over-load
With temperature detector, after Max. temperature 60 degree achieved,
it will cut electrical automatically to protect crimper
Even through crimper at high pressure, labor-saved oil return knob design
With switch to manual release mode anytime to set original position
Cylinder passt life time over 60,000.-cycles test, high quality
With release mode selector
A: Manual release mode
B: Half release mode(short ram mode) For cutting small cable use
C: Automatically release mode
Smart version USB-C CONNECTOR
Light advice system with buzz warning
LED Green: Well crimped and motor stopped
LED Orange: Battery without enough power
LED Red+buzz warning: Pressure or temperature is over
USB-connector and computer software
Smart PCB will record information:
Operation times/ battery voltage/ Pressure
Temperature/Tool series code/Power source
Model No. | Head rotation | Output | ACSR | Dimension | Weight | Remark |
---|---|---|---|---|---|---|
AEC-40A | 360° | 6 tons | Max. Dia. 28mm | 435(L)x315(W)x75(H)mm | 5.7kgs excludes battery | auto-release version |
