Hydraulic pumps for remote tools

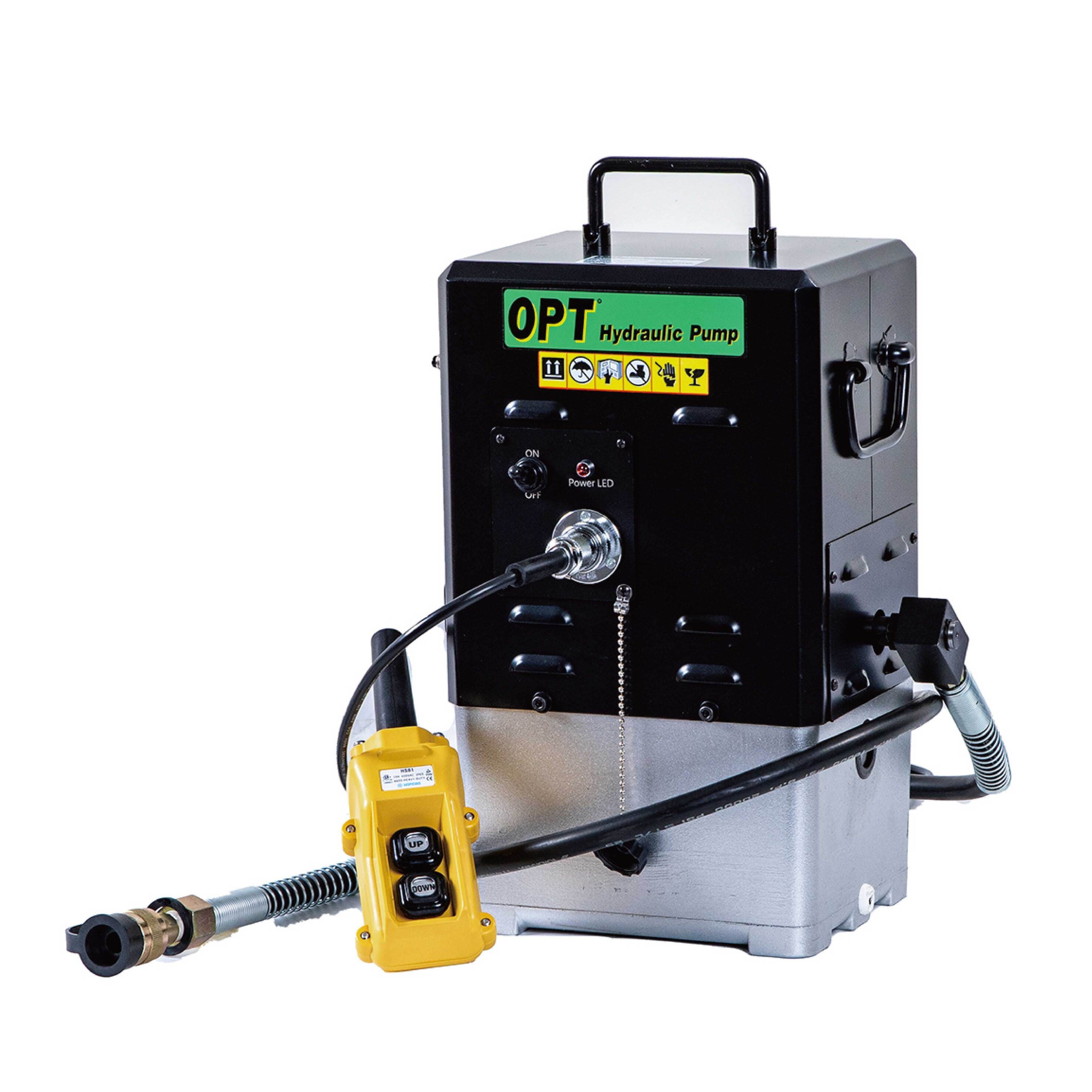

PM-3000 ELECTRIC HYDRAULIC PUMP
PM-3000

Electric hydraulic pump
Electrical drived type
Support manual pressure release
if there is without any electric power.
Operation with remote control /single acting

PM-3000 (110-220VAC / 650W / 50-60Hz)
700kgF/cm2 oil pressure
500c.c./min. oil speed at Max. pressure 700kgF/cm2
2750c.c./min. oil speed at Min. pressure 20kgF/cm2
3.3 Liter reservoir capacity
19.4kgs / 345(L)x454(W)x188(H)mm

Standard accessory
1 piece power cord plug
1 piece 1.8M hose
1 piece remote control

Electric hydraulic pump
Electrical drived type
Support manual pressure release
if there is without any electric power.
Operation with remote control /single acting
PM-3000 (110-220VAC / 650W / 50-60Hz)
700kgF/cm2 oil pressure
500c.c./min. oil speed at Max. pressure 700kgF/cm2
2750c.c./min. oil speed at Min. pressure 20kgF/cm2
3.3 Liter reservoir capacity

Specification

Model No. Voltage Acting Pressure Max. pressure 700kgF/cm2 Min. pressure 20kgF/cm2 Reservoir capacity Weight Dimension Standard accessory
PM-3000 110-220VAC / 650W / 50-60Hz single 700kgF/cm2 500c.c./min. oil speed 2750c.c./min. oil speed 3.3 Liter 19.4kgs 345(L)x454(W)x188(H)mm 1 piece power cord plug 1 piece 1.8M hose 1 piece remote control
