Manual hydraulic crimpers

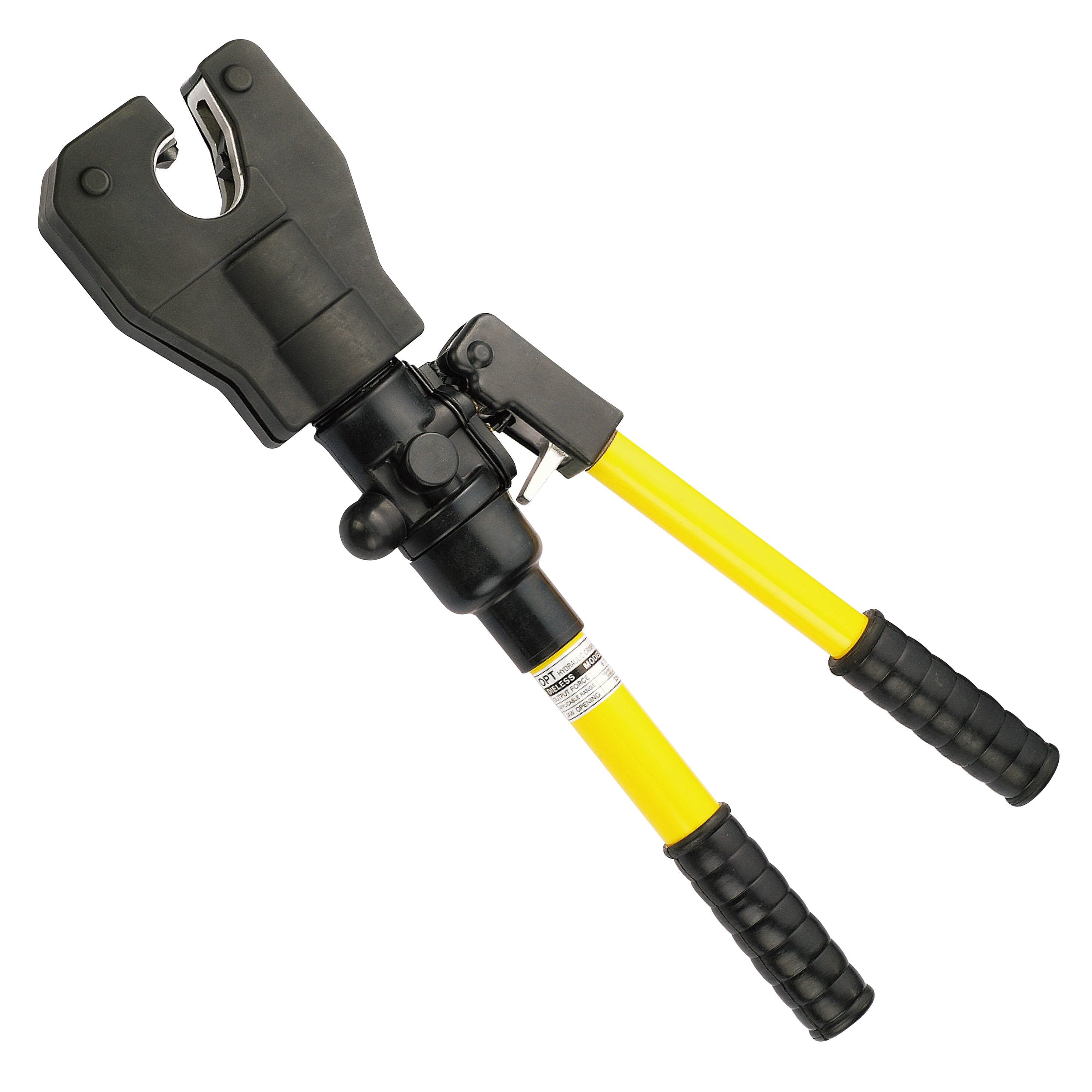

TP-6N MANUAL HYDRAULIC CRIMPING TOOLS
TP-6N
6 tons hydraulic crimping tool
For cable lug crimping
TP-6N (Manual Type)
DIN 16-300mm2 (AWG6-600MCM)
4-points crimping range
360-degree swivel
insulated cover head
Fiberglass handles / 32mm Nibs opening
6 tons output / 5kgs / 600mm
4-points crimping range
360-degree swivel
insulated cover head
Fiberglass handles / 32mm Nibs opening
TP-6N (Manual Type)
DIN 16-300mm2 (AWG6-600MCM)
Specification
| Model No. | Application | Output | Crimping range supported | Length | Weight | Nibs opening | Head rotation | Remark |
|---|---|---|---|---|---|---|---|---|
| TP-6N | For cable lug 4-points crimping | 6 tons | DIN 16-300mm² (AWG6-600MCM) | 600mm | 5kgs | 32mm | 360° | With insulated cover head |
