Hydraulic Pumps Hydraulic pumps for remote tools

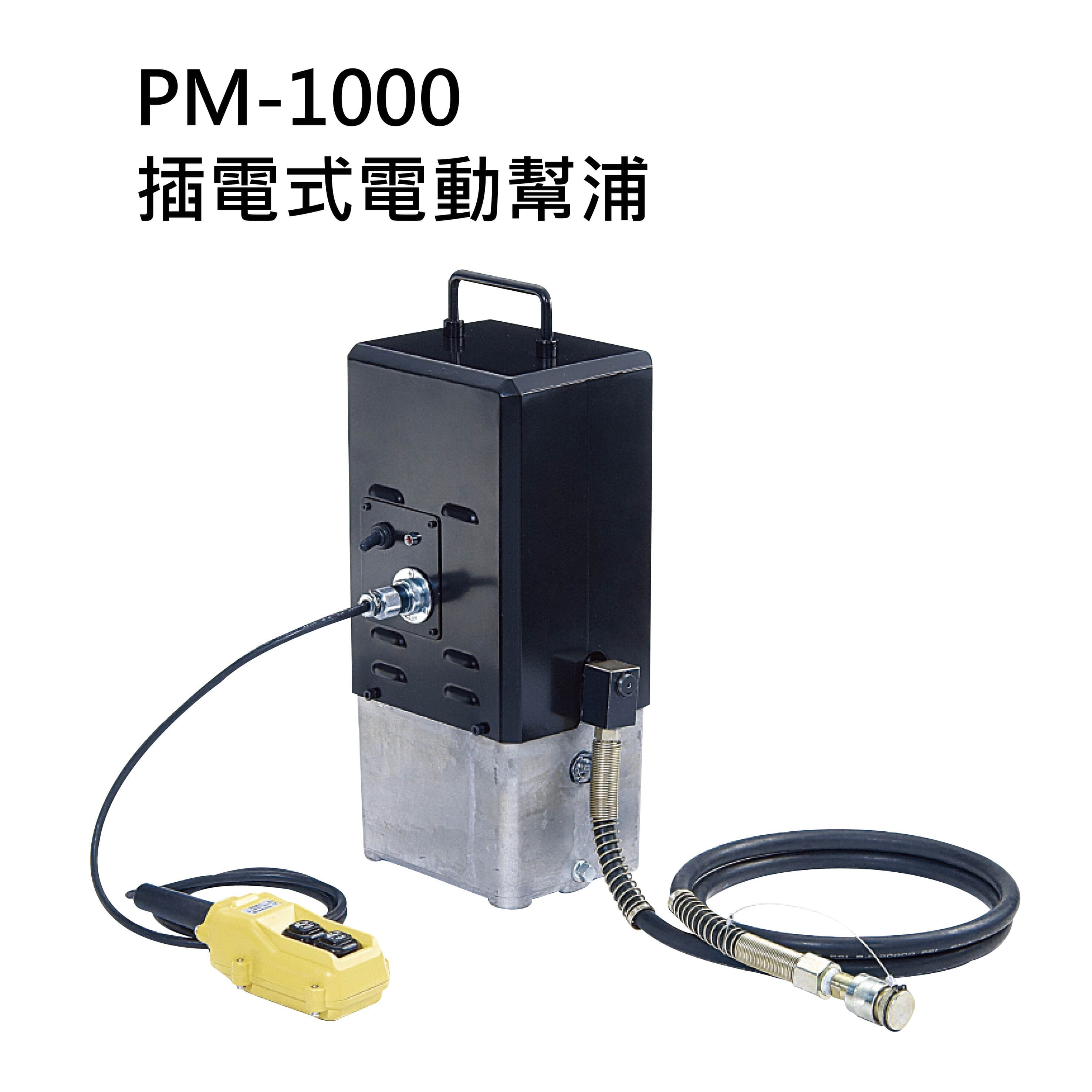

PM-1000 ELECTRIC HYDRAULIC PUMP
Product Details
Resources / Downloads
Applicable accessories fixture/maintenance kit
Product Details
Electric hydraulic pump
Electrical drived type
Operation with remote control/ single acting
PM-1000 (110-220VAC / 650W / 50-60Hz)
700kgF/cm2 oil pressure
500c.c./min. oil speed at Max. pressure 700kgF/cm2
2750c.c./min. oil speed at Min. pressure 20kgF/cm2
2.6 Liter reservoir capacity
16.8kgs / 180(L)x400(W)x160(H)mm
Standard accessory
1 piece power cord plug
1 piece 1.8M hose
1 piece remote control
Electric hydraulic pump
Electrical drived type
Operation with remote control/ single acting
PM-1000 (110-220VAC / 650W / 50-60Hz)
700kgF/cm2 oil pressure
500c.c./min. oil speed at Max. pressure 700kgF/cm2
2750c.c./min. oil speed at Min. pressure 20kgF/cm2
2.6 Liter reservoir capacity
| Model No. | Voltage | Acting | Pressure | Max. pressure 700kgF/cm2 | Min. pressure 20kgF/cm2 | Reservoir capacity | Weight | Dimension | Standard accessory |
|---|---|---|---|---|---|---|---|---|---|
| PM-1000 | 110-220VAC / 650W / 50-60Hz | single | 700kgF/cm² | 500c.c./min. oil speed | 2750c.c./min. oil speed | 2.6 Liter | 16.8kgs | 180(L)x400(W)x160(H)mm | 1 piece power cord plug 1 piece 1.8M hose 1 piece remote control |
