Products

Manual hydraulic cutters

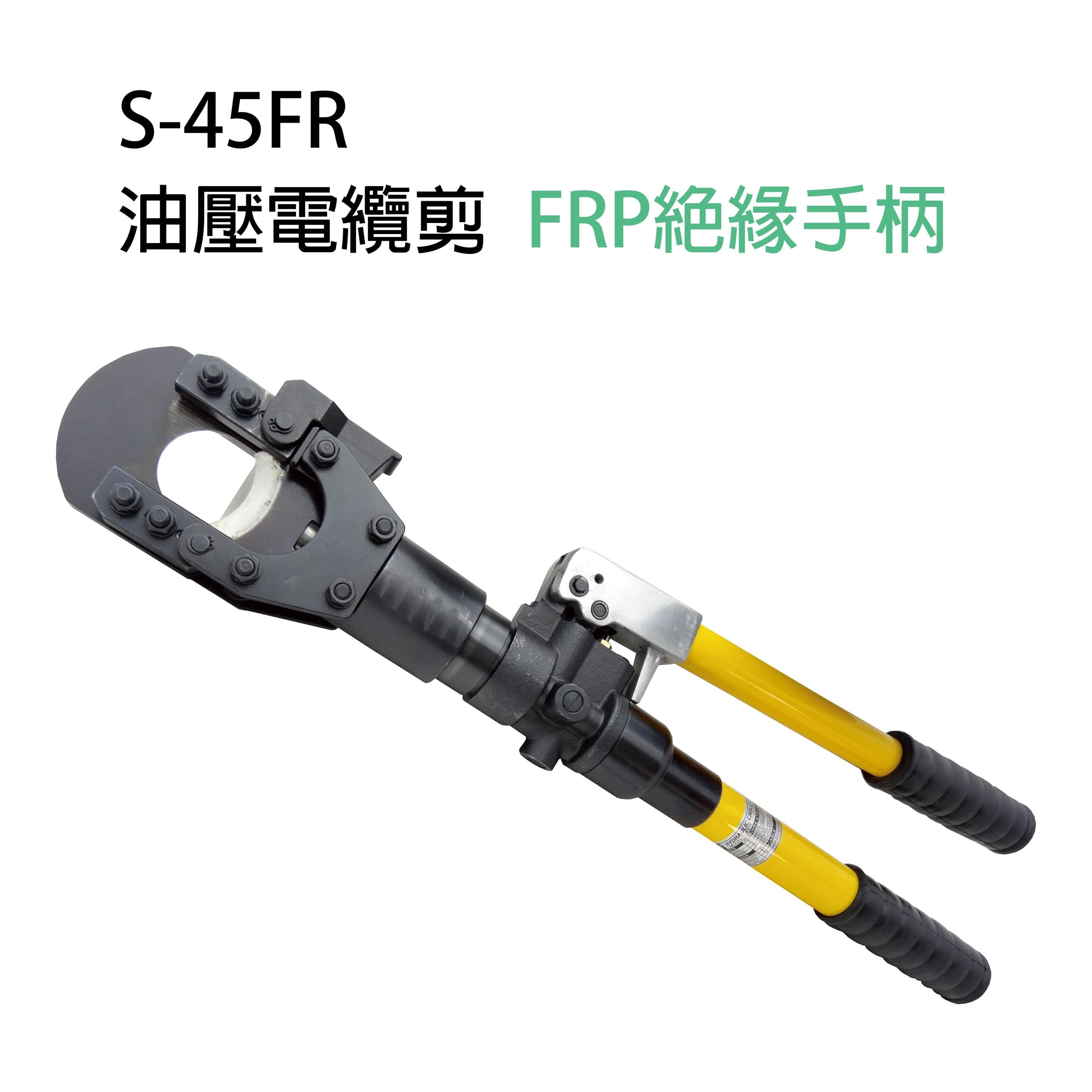

S-45FR MANUAL HYDRAULIC CABLE CUTTERS
S-45FR

S-45FR (Manual Type)
8 tons output / 6kgs / 560mm
Double-stage hydraulic design
With FRP insulated handle

Cutting range
Hemp-core wire rope 6x7 Max. O.D. 20mm
Hemp-core wire rope 6x12 Max. O.D. 25mm
Hemp-core wire rope 6x19 Max. O.D. 25mm
Soft copper & aluminum round bar Max. O.D. 25mm
Soft steel round bar (below SS41) Max. O.D. 16mm
Bare coppper & aluminum wire strand Max. O.D. 45mm
Armored underground cable Max. O.D. 45mm
Cutting range
Hemp-core wire rope 6x7 Max. O.D. 20mm
Hemp-core wire rope 6x12 Max. O.D. 25mm
Hemp-core wire rope 6x19 Max. O.D. 25mm
Soft copper & aluminum round bar Max. O.D. 25mm
Soft steel round bar (below SS41) Max. O.D. 16mm
Bare coppper & aluminum wire strand Max. O.D. 45mm
Armored underground cable Max. O.D. 45mm
S-45FR (Manual Type)
8 tons output / 6kgs / 560mm
Double-stage hydraulic design
With FRP insulated handle

Specification

Model No. Output Hemp-core wire rope 6x7 Hemp-core wire rope 6x12 Hemp-core wire rope 6x19 Soft copper & aluminum round bar Soft steel round bar (below SS41) Bare coppper & aluminum wire strand Armored underground cable Weight Length Remark
S-45FR 8 tons Max. O.D. 20mm Max. O.D. 25mm Max. O.D. 25mm Max. O.D. 25mm Max. O.D. 16mm Max. O.D. 45mm Max. O.D. 45mm 6kgs 560mm Double-stage hydraulic design, With FRP insulated handle
