Moulded Shapes

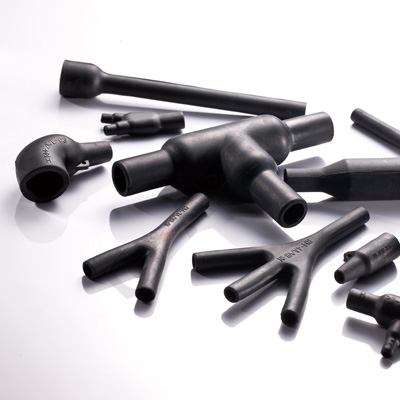

BOOT - Molded Irradiated Polyolefin Boots
BOOT
Applications:
It is applied to the high specification cable harness conjunction and the complete sealing at transitions, which can effectively provide strain relief and reliable protection against water and abrasion.
Operating temperature range:
Continuous operating temperature: -55˚C~135˚C
Minimum shrink temperature: 70˚C
Full recovery temperature: Above 110˚C
Product type
Straight, 90° Transitions, T Transitions, Y Transitions, 30° Transitions, 45° Transitions, 1:3 Transitions,and 1:4 Transitions.
Material and type with hot melt adhesive can be chosen
Specified configuration is available on request
Specification
Characteristics
- Mechanical protection
- Watertight, flame retardant
- Insulation
- Strain relief
- Resistant to chemical corrosion
