Air Control Valve

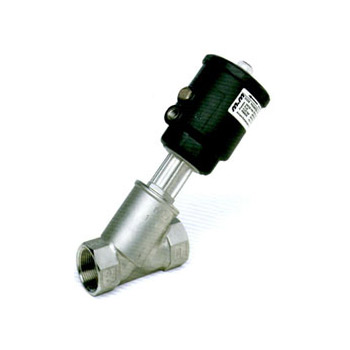

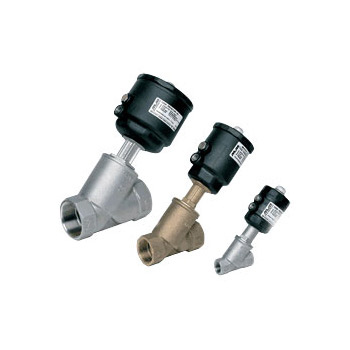

steam valve steam valve steam valve Y-type Steam Valve Series
For fluid: water, oil, air, steam, aggressive fluids
Liquid temperature: -10 ° C ~ 180 ° C
Body Material: AISI316L stainless steel
O Seal: PTFE Teflon
Vacuum degree: 10-2mbar
Working maximum vapor pressure: 10bar
Kao Lu Agency UK SPIRAX SARCO Group specially designed 2/2 off valve and Y-type steam valve specialist M & M.
Y-type steam valve for a variety of fluids such as water, oil, air, steam, and other corrosive fluids. Liquid temperature of -10 ° C ~ 180 & deC; PTFE Teflon o - Seal; valve body AISI316L stainless steel; a vacuum degree of 10-2mbar; maximum working pressure vapor 10bar.
Specification
| Connection | Actuatorψ | A | B | C | D | E | Weight |
|---|---|---|---|---|---|---|---|
| {ISO 228G} | mm | mm | mm | mm | mm | mm | kg |
| 1/2” | 63 | 65 | 192 | 184 | 171 | 85 | 1.2 |
| 3/4” | 63 | 75 | 198 | 192 | 176 | 85 | 1.3 |
| 1” | 63 | 90 | 212 | 205 | 185 | 85 | 1.5 |
| 1 1/4” | 63 | 110 | 225 | 217 | 193 | 85 | 1.9 |
| 1 1/2” | 63 | 120 | 230 | 225 | 198 | 85 | 2.1 |
| 2” | 63 | 150 | 248 | 241 | 207 | 85 | 2.9 |
| 1” | 90 | 90 | 223 | 216 | 196 | 112 | 2.0 |
| 1 1/4” | 90 | 110 | 234 | 227 | 202 | 112 | 2.4 |
| 1 1/2” | 90 | 120 | 239 | 235 | 207 | 112 | 2.6 |
| 2” | 90 | 150 | 257 | 250 | 216 | 112 | 3.3 |
| Valve | Connection | DN | Flow rate Kvs | Working pressure Min Max | |
|---|---|---|---|---|---|
| Code | {ISO 228G} | mm | l/min | barg | barg |
| BPG205STW00 | 1/2” | 15 | 87 | 0 | 16 |
| BPG206STX00 | 3/4” | 20 | 164 | 0 | 16 |
| BPG207STY00 | 1” | 25 | 260 | 0 | 16 / 11 |
| BPG208STZ00 | 1 1/4” | 32 | 410 | 0 | 16 / 6 |
| BPG209STK00 | 1 1/2” | 40 | 700 | 0 | 12 / 4 |
| BPG210STJ00 | 2” | 50 | 950 | 0 | 8 / 2.5 |
| BPG207LTY00 | 1” | 25 | 260 | 0 | 16 / 14 |
| BPG208LTZ00 | 1 1/4” | 32 | 410 | 0 | 16 / 12 |
| BPG209LTK00 | 1 1/2” | 40 | 700 | 0 | 16 / 8 |
| BPG210LTJ00 | 2” | 50 | 950 | 0 | 14 / 6 |
| Valve | Flow direction | Pilot pressure Min Max | Actuator ψ | |
|---|---|---|---|---|
| Code | -- | barg | barg | mm |
| BPG205STW00 | 1→2 / 2→1 | 5.5 / 3.8 | 10 | 63 |
| BPG206STX00 | 1→2 / 2→1 | 6 / 3.8 | 10 | |
| BPG207STY00 | 1→2 / 2→1 | 6.5 / 3.8 | 10 | |
| BPG208STZ00 | 1→2 / 2→1 | 6.8 / 3.8 | 10 | |
| BPG209STK00 | 1→2 / 2→1 | 9 / 3.8 | 10 | |
| BPG210STJ00 | 1→2 / 2→1 | 9 / 3.8 | 10 | |
| BPG207LTY00 | 1→2 / 2→1 | 4 / 3.3 | 8 | 90 |
| BPG208LTZ00 | 1→2 / 2→1 | 5 / 3.3 | 8 | |
| BPG209LTK00 | 1→2 / 2→1 | 6 / 3.3 | 8 | |
| BPG210LTJ00 | 1→2 / 2→1 | 8 / 3.3 | 8 | |
