Cylinder

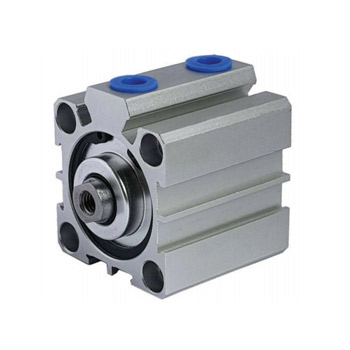

SDA Series Cylinder

Specification

Type Standard Type Attach Magnet D E F G K1 L M N1
Dia A B1 C A B1 C S≦10 S>10
12 22 5 17 32 5 27 - 6 4 1 M3*0.5 10.2 2.8 6.3
16 24 5.5 18.5 34 5.5 28.5 - 6 4 1.5 M3*0.5 11 2.8 7.3
20 25 5.5 19.5 35 5.5 29.5 36 8 4 1.5 M4*0.7 15 2.8 7.5
25 27 6 21 37 6 31 42 10 4 2 M5*0.8 17 2.8 8
32 31.5 7 24.5 41.5 7 34.5 50 12 4 3 M6*1.0 22 2.8 9
40 33 7 26 43 7 36 58.5 12 4 3 M8*1.25 28 2.8 10
50 37 9 28 47 9 38 71.5 15 5 4 M10*1.5 38 2.8 10.5
63 41 9 32 51 9 42 84.5 15 5 4 M10*1.5 40 2.8 15
80 52 11 41 62 11 51 104 15 20 6 5 M14*1.5 45 4 21
100 63 12 51 73 12 61 124 18 20 7 5 M18*1.5 55 4 17



Dia N3 O P1 P3 P4 R S T U V W X Y
12 6 M5*0.8 BS:Φ 6.5 C:M5*0.8 P:Φ 4.2 12 45 - 25 23 1.6 6 5 - -
16 6.5 M5*0.8 BS:Φ 6.5 C:M5*0.8 P:Φ 4.2 12 4.5 - 29 28 1.6 6 5 - -
20 - M5*0.8 BS:Φ 6.5 C:M5*0.8 P:Φ 4.2 12 4.5 2 34 24 2.1 8 6 11.3 10
25 - M5*0.8 BS:Φ 8.2 C:M6*1.0 P:Φ 4.6 15 5.5 2 40 28 3.1 10 8 12 10
32 - PT 1/8 BS:Φ 8.2 C:M6*1.0 P:Φ 4.6 16 5.5 6 44 34 2.15 12 10 18.3 15
40 - PT 1/8 BS:Φ 10 C:M8*1.25 P:Φ 6.5 20 7.5 6.5 52 40 2.25 16 14 21.3 16
50 - PT 1/4 BS:Φ 10 C:M8*1.25 P:Φ 6.5 25 8.5 9.5 62 48 4.15 20 17 30 20
63 - PT 1/4 BS:Φ 10 C:M8*1.25 P:Φ 6.5 25 8.5 9.5 75 60 3.15 20 17 28.7 20
80 - PT 3/8 BS:Φ 14 C:M12*1.75 P:Φ 9.2 25 10.5 10 94 74 3.65 25 22 36 26
100 - PT 3/8 BS:Φ 17.5 C:M14*2.0 P:Φ 11.3 30 13 10 114 90 3.65 32 27 35 26
