Car Milling composite Machine is Dedicated
TMSB (Compound Lathe Ball Nose End Mill), 2 Flutes
TMSB
Remarks: For other specifications, please call to inquire.

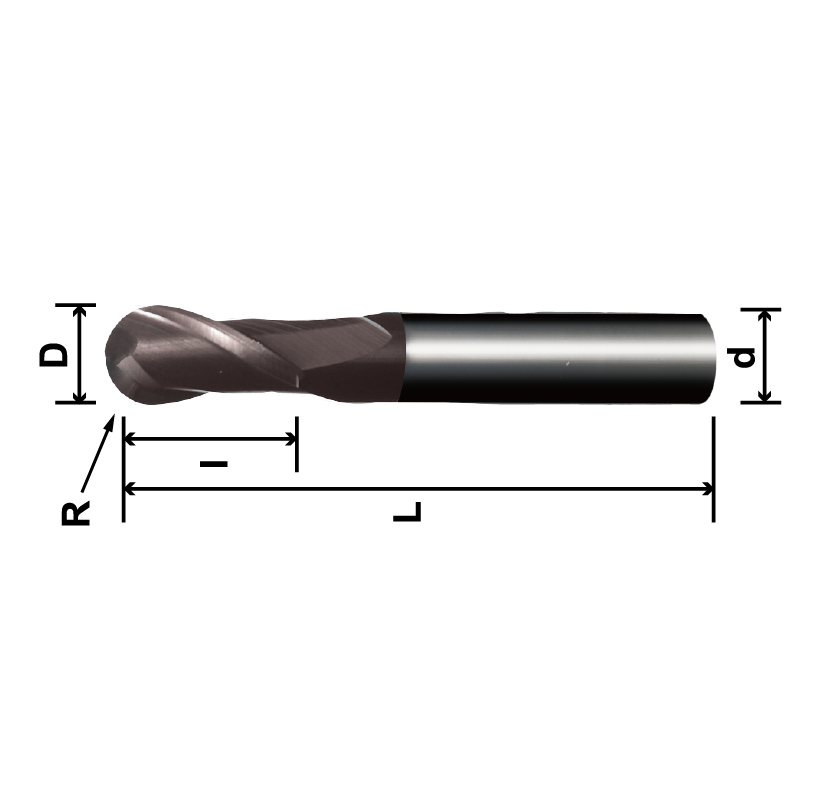

Specification
Unit：mm
|
Model No. |
R Radius |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
|
2D TMSB 0102R7 |
0.5R |
1 |
1.5 |
6 |
50 |
|
2D TMSB 0152R7 |
0.75R |
1.5 |
2.5 |
6 |
50 |
|
2D TMSB 0202R7 |
1R |
2 |
3 |
6 |
50 |
|
2D TMSB 0302R7 |
1.5R |
3 |
4.5 |
6 |
50 |
|
2D TMSB 0402R7 |
2R |
4 |
6 |
6 |
50 |
|
2D TMSB 0502R7 |
2.5R |
5 |
8 |
6 |
50 |
|
2D TMSB 0602R7 |
3R |
6 |
9 |
6 |
50 |
|
2D TMSB 0802R7 |
4R |
8 |
12 |
8 |
50 |
|
2D TMSB 1002R7 |
5R |
10 |
15 |
10 |
50 |
|
2D TMSB 1202R7 |
6R |
12 |
18 |
12 |
60 |
|
2D TMSB 1602R7 |
8R |
16 |
24 |
12 |
60 |
