Products

2# General Steel Material Processing

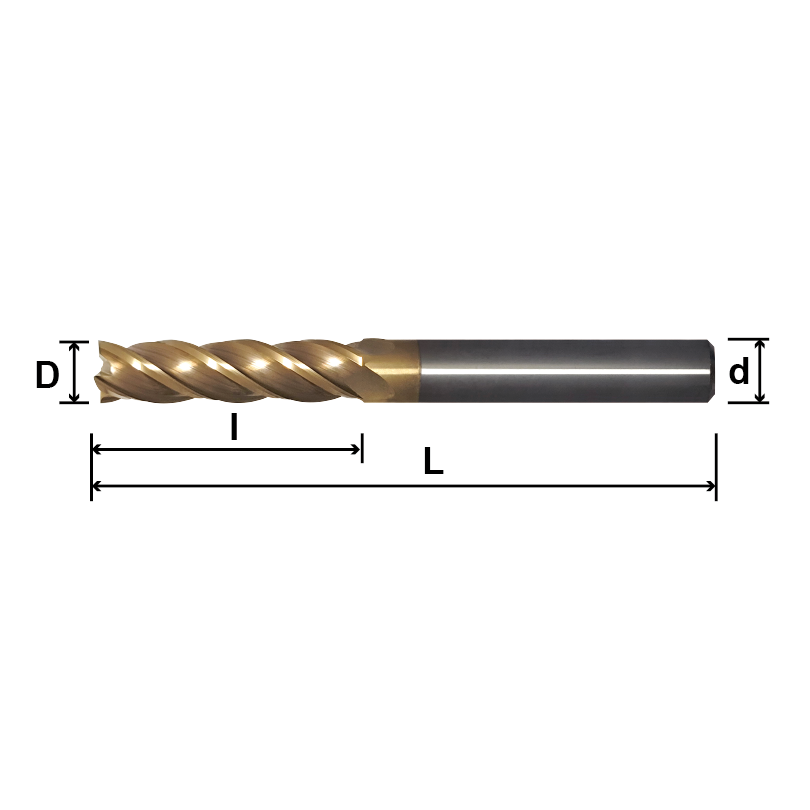

LET4 (Long Flute Length End Mill),4 Flutes
LET4

Remarks: For other specifications, please call to inquire.

Specification

Unit:mm

Model No.

D

Diameter

I

Flute Length

d

Shank Diameter

L

Overall Length

2 LET 0104TXM

1

5

4

50

2 LET 0154TXM 1.5 8 4

50

2 LET 0204TXM 2 10 4

50

2 LET 0254TXM 2.5 13 4

50

2 LET 0304TXM 3 15 6

50

2 LET 0404TXM 4 20 6

75

2 LET 0504TXM 5 25 6

75

2 LET 0604TXM 6 30 6

75

2 LET 0704TXM 7 35 8

100

2 LET 0804TXM 8 40 8

100

2 LET 0904TXM 9 45 10

100

2 LET 1004TXM 10 50 10

100

2 LET 1204TXM 12 50 12

100

2 LET 1604TXM 16 80 16

150

2 LET 2004TXM 20 80 20

150
