638# Heat Treatment Dry Cutting Processing
MSB2 (Ball Nose),2 Flutes
MSB2 / SB2
Remarks: For other specifications, please call to inquire.

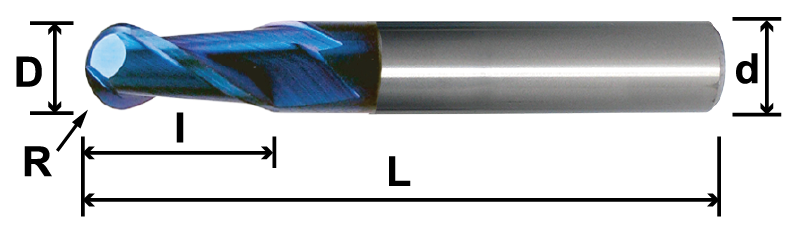

Specification
Unit：mm
|
Model No. |
R Radius |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
| 638 MSB 0102NB | 0.5R | 1 | 2 | 4 |
50 |
| 638 SB 0102NB | 0.5R | 1 | 2 | 6 |
50 |
| 638 MSB 0152NB | 0.75R | 1.5 | 3 | 4 |
50 |
| 638 SB 0152NB | 0.75R | 1.5 | 3 | 6 |
50 |
| 638 MSB 0202NB | 1R | 2 | 4 | 4 |
50 |
| 638 SB 0202NB | 1R | 2 | 4 | 6 |
50 |
| 638 MSB 0252NB | 1.25R | 2.5 | 5 | 4 |
50 |
| 638 SB 0252NB | 1.25R | 2.5 | 5 | 6 |
50 |
| 638 SSB 0302NB | 1.5R | 3 | 6 | 3 |
50 |
| 638 MSB 0302NB | 1.5R | 3 | 6 | 4 |
50 |
| 638 SB 0302NB | 1.5R | 3 | 6 | 6 |
50 |
| 638 MSB 0352NB | 1.75R | 3.5 | 7 | 4 |
50 |
| 638 MSB 0402NB | 2R | 4 | 8 | 4 |
50 |
| 638 SB 0402NB | 2R | 4 | 8 | 6 |
50 |
| 638 SB 0452NB | 2.25R | 4.5 | 9 | 6 |
50 |
| 638 SB 0502NB | 2.5R | 5 | 10 | 6 |
50 |
| 638 SB 0602NB | 3R | 6 | 12 | 6 |
50 |
| 638 SB 0702NB | 3.5R | 7 | 14 | 8 |
60 |
| 638 SB 0802NB | 4R | 8 | 16 | 8 |
60 |
| 638 SB 0902NB | 4.5R | 9 | 18 | 10 |
75 |
| 638 SB 1002NB | 5R | 10 | 20 | 10 |
75 |
| 638 SB 1102NB | 5.5R | 11 | 22 | 12 |
75 |
| 638 SB 1202NB | 6R | 12 | 24 | 12 |
75 |
| 638 SB 1402NB | 7R | 14 | 28 | 16 |
100 |
| 638 SB 1602NB | 8R | 16 | 32 | 16 |
100 |
| 638 SB 2002NB | 10R | 20 | 40 | 20 |
100 |
