Special processing milling cutter

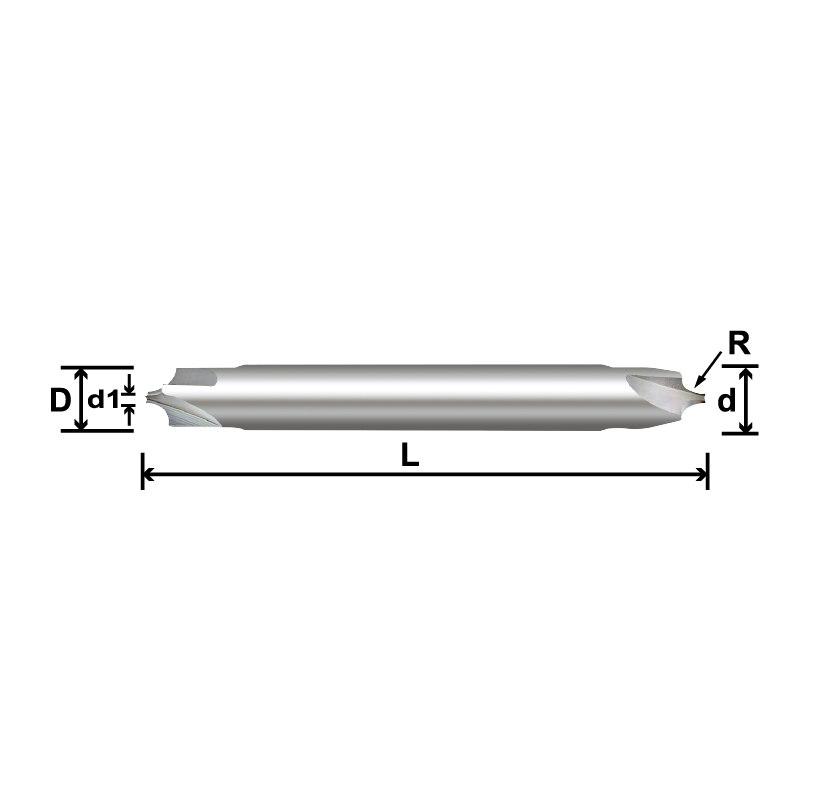

Tungsten Carbide Outer Radius End Mill
RC
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
R Radius |
d1 Top Diameter |
D Outside Diameter |
T Flute |
d Shank Diameter |
L Overall Length |
Note |
| 2 RC 0042 | 0.2R | 1 | 1.5 | 2 | 4 | 50 | Single head |
| 2 RC 0052 | 0.25R | 1 | 1.6 | 2 | 4 | 50 | Single head |
| 2 RC 0062 | 0.3R | 1 | 1.7 | 2 | 4 | 50 | Single head |
| 2 RC 0082 | 0.4R | 1 | 1.9 | 2 | 4 | 50 | Single head |
|
2RC 0104 |
0.5R |
1.5 |
2.7 |
4 |
4 |
50 |
|
| 2RC 1504 | 0.75R | 1.5 | 3.2 | 4 | 4 |
50 |
|
| 2RC 0204 | 1R | 1.5 | 3.7 | 4 | 4 |
50 |
|
| 2RC 0254D6 | 1.25R | 1.5 | 4.2 | 4 | 6 |
50 |
|
| 2RC 0304D6 | 1.5R | 1.5 | 4.7 | 4 | 6 |
50 |
|
| 2RC 0354D6 | 1.75R | 1.5 | 5.2 | 4 | 6 |
50 |
|
| 2RC 0404D6 | 2R | 1.5 | 5.7 | 4 | 6 |
50 |
|
| 2RC 0504D8 | 2.5R | 1.5 | 6.7 | 4 | 8 |
60 |
|
| 2RC 0604D8 | 3R | 1.5 | 7.7 | 4 | 8 |
60 |
|
| 2RC 0704D10 | 3.5R | 2 | 9.2 | 4 | 10 |
75 |
|
| 2RC 0804D12 | 4R | 2 | 10.2 | 4 | 12 |
75 |
|
| 2RC 1004D14 | 5R | 3 | 13.2 | 4 | 14 |
100 |
|
| 2RC 1204D16 | 6R | 3 | 15.2 | 4 | 16 |
100 |
