5# Mold Processing

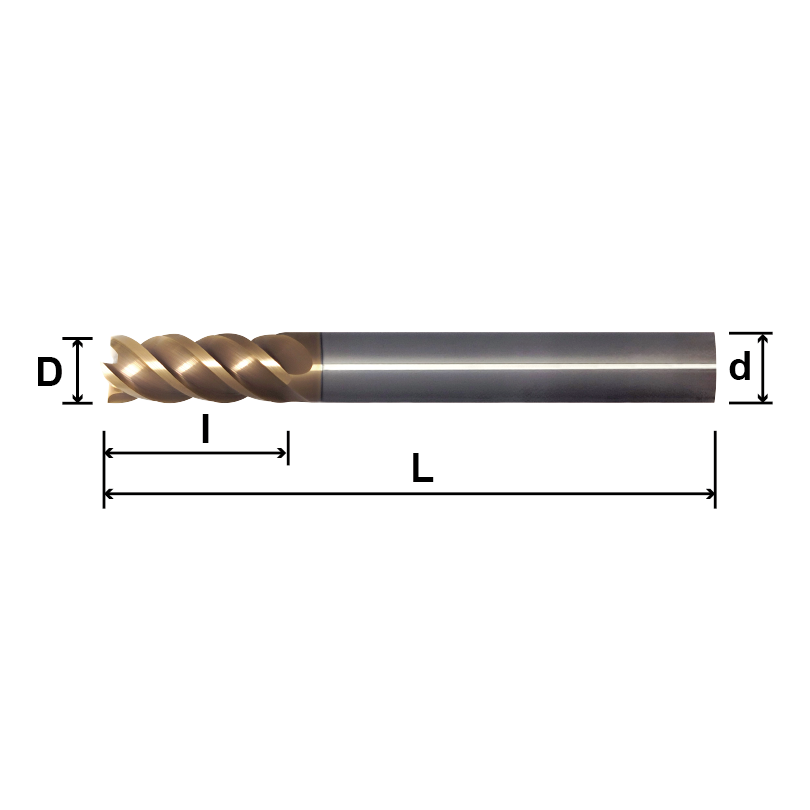

SLE4／MLE4／LLE4 (Long Shank,Regular Length),4 Flutes
SLE4 / MLE4 / LLE4
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
| 5 SLE 0104TXD6 | 1 | 2.5 | 6 |
75 |
| 5 MLE 0104TXD6 | 1 | 2.5 | 6 |
100 |
| 5 SLE 0154TXD6 | 1.5 | 4 | 6 |
75 |
| 5 MLE 0154TXD6 | 1.5 | 4 | 6 |
100 |
| 5 SLE 0204TXD6 | 2 | 6 | 6 |
75 |
| 5 MLE 0204TXD6 | 2 | 6 | 6 |
100 |
| 5 SLE 0254TXD6 | 2.5 | 7 | 6 |
75 |
| 5 MLE 0254TXD6 | 2.5 | 7 | 6 |
100 |
| 5 SLE 0304TXD3 | 3 | 8 | 3 |
75 |
| 5 SLE 0304TX | 3 | 8 | 4 |
75 |
| 5 SLE 0304TXD6 | 3 | 8 | 6 |
75 |
| 5 MLE 0304TXD3 | 3 | 8 | 3 |
100 |
| 5 MLE 0304TX | 3 | 8 | 4 |
100 |
| 5 MLE 0304TXD6 | 3 | 8 | 6 |
100 |
| 5 SLE 0404TX | 4 | 11 | 4 |
75 |
| 5 SLE 0404TXD6 | 4 | 11 | 6 |
75 |
| 5 MLE 0404TX | 4 | 11 | 4 |
100 |
| 5 MLE 0404TXD6 | 4 | 11 | 6 |
100 |
| 5SLE 0504TX | 5 | 13 | 6 |
75 |
| 5 MLE 0504TX | 5 | 13 | 6 |
100 |
| 5 SLE 0604TX | 6 | 16 | 6 |
75 |
| 5 MLE 0604TX | 6 | 16 | 6 |
100 |
| 5 MLE 0704TX | 7 | 18 | 8 |
100 |
| 5 SLE 0804TX | 8 | 20 | 8 |
75 |
| 5 MLE 0804TX | 8 | 20 | 8 |
100 |
| 5 LLE 0804TX | 8 | 20 | 8 |
150 |
| 5 MLE 0904TX | 9 | 23 | 10 |
100 |
| 5 MLE 1004TX | 10 | 30 | 10 |
100 |
| 5 LLE 1004TX | 10 | 30 | 10 |
150 |
| 5 MLE 1204TX | 12 | 30 | 12 |
100 |
| 5 LLE 1204TX | 12 | 30 | 12 |
150 |
| 5 MLE 1604TX | 16 | 50 | 16 |
150 |
| 5 LLE 1604TX | 16 | 50 | 16 |
200 |
| 5 MLE 2004TX | 20 | 50 | 20 |
150 |
| 5 LLE 2004TX | 20 | 50 | 20 |
200 |
