5# Mold Processing

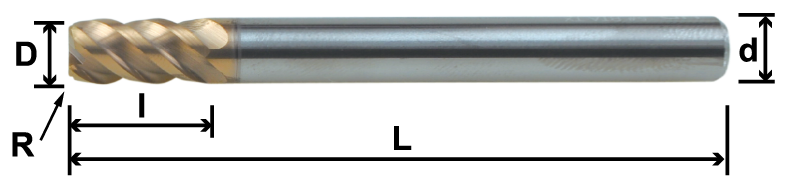

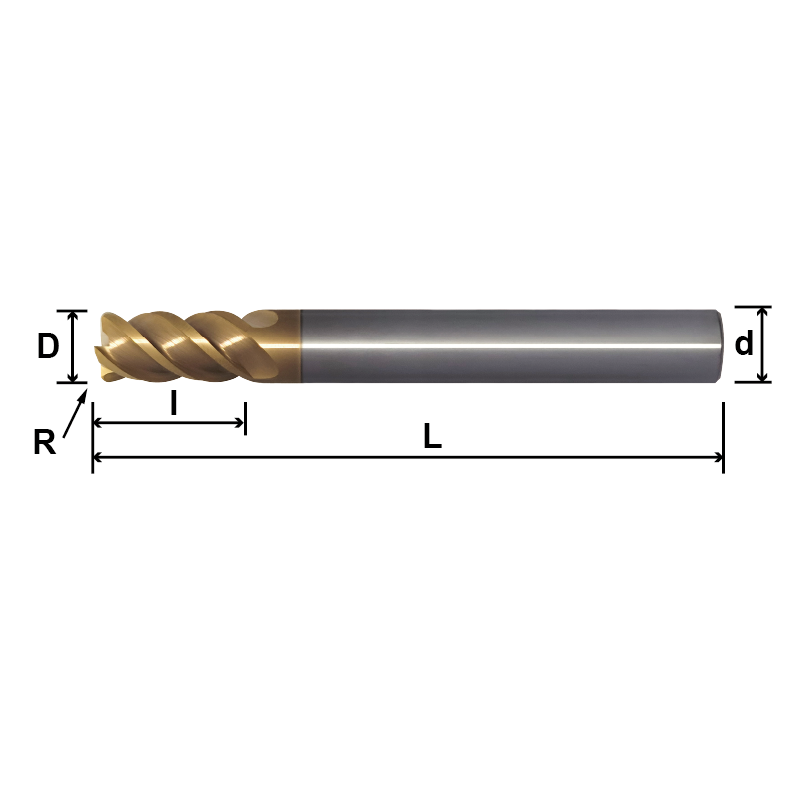

SLR4／MLR4 (Corner Radius, Long Shank), 4 Flutes
SLR4 / MLR4
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
D Diameter |
R Corner Radius |
I Flute Length |
d Shank Diameter |
L Overall Length |
price |
| 5 SLR 010024TX | 1 | 0.2R | 2 | 4 |
75 |
|
| 5 SLR 010024TXD6 | 1 | 0.2R | 2 | 6 |
75 |
|
| 5 MLR 010024TX | 1 | 0.2R | 2 | 4 |
100 |
|
| 5 MLR 010024TXD6 | 1 | 0.2R | 2 | 6 |
100 |
|
| 5 SLR 015024TX | 1.5 | 0.2R | 3 | 4 |
75 |
|
| 5 SLR 015024TXD6 | 1.5 | 0.2R | 3 | 6 |
75 |
|
| 5 MLR 015024TX | 1.5 | 0.2R | 3 | 4 |
100 |
|
| 5 MLR 015024TXD6 | 1.5 | 0.2R | 3 | 6 |
100 |
|
| 5 SLR 015054TX | 1.5 | 0.5R | 3 | 4 |
75 |
|
| 5 SLR 015054TXD6 | 1.5 | 0.5R | 3 | 6 |
75 |
|
| 5 MLR 015054TX | 1.5 | 0.5R | 3 | 4 |
100 |
|
| 5 MLR 015054TXD6 | 1.5 |
0.5R |
3 | 6 |
100 |
|
| 5 SLR 020024TX | 2 | 0.2R | 4 | 4 |
75 |
|
| 5 SLR 020024TXD6 | 2 | 0.2R | 4 | 6 |
75 |
|
| 5 MLR 020024TX | 2 | 0.2R | 4 | 4 |
100 |
|
| 5 MLR 020024TXD6 | 2 | 0.2R | 4 | 6 |
100 |
|
| 5 SLR 020054TX | 2 | 0.5R | 4 | 4 |
75 |
|
| 5 SLR 020054TXD6 | 2 | 0.5R | 4 | 6 |
75 |
|
| 5 MLR 020054TX | 2 | 0.5R | 4 | 4 |
100 |
|
| 5 MLR 020054TXD6 | 2 | 0.5R | 4 | 6 |
100 |
|
| 5 SLR 030024TXD3 | 3 | 0.2R | 6 | 3 |
75 |
|
| 5 SLR 030024TX | 3 | 0.2R | 6 | 4 |
75 |
|
| 5 SLR 030024TXD6 | 3 | 0.2R | 6 | 6 |
75 |
|
| 5 MLR 030024TXD3 | 3 | 0.2R | 6 | 3 |
100 |
|
| 5 MLR 030024TX | 3 | 0.2R | 6 | 4 |
100 |
|
| 5 MLR 030024TXD6 | 3 | 0.2R | 6 | 6 |
100 |
|
| 5 SLR 030054TXD3 | 3 | 0.5R | 6 | 3 |
75 |
|
| 5 SLR 030054TX | 3 | 0.5R | 6 | 4 |
75 |
|
| 5 SLR 030054TXD6 | 3 | 0.5R | 6 | 6 |
75 |
|
| 5 MLR 030054TXD3 | 3 | 0.5R | 6 | 3 |
100 |
|
| 5 MLR 030054TX | 3 | 0.5R | 6 | 4 |
100 |
|
| 5 MLR 030054TXD6 | 3 | 0.5R | 6 | 6 |
100 |
|
| 5 SLR 030104TXD3 | 3 | 1R | 6 | 3 |
75 |
|
| 5 SLR 030104TX | 3 | 1R | 6 | 4 |
75 |
|
| 5 SLR 030104TXD6 | 3 | 1R | 6 | 6 | 75 | |
| 5 SLR 030104TXD3 | 3 | 1R | 6 | 3 |
100 |
|
| 5 SLR 030104TX | 3 | 1R | 6 | 4 |
100 |
|
| 5 SLR 030104TXD6 | 3 | 1R | 6 | 6 | 100 | |
| 5 SLR 040024TX | 4 | 0.2R | 8 | 4 |
75 |
|
| 5 SLR 040024TXD6 | 4 | 0.2R | 8 | 6 |
75 |
|
| 5 MLR 040024TX | 4 | 0.2R | 8 | 4 |
100 |
|
| 5 MLR 040024TXD6 | 4 | 0.2R | 8 | 6 |
100 |
|
| 5 SLR 040054TX | 4 | 0.5R | 8 | 4 |
75 |
|
| 5 SLR 040054TXD6 | 4 | 0.5R | 8 | 6 |
75 |
|
| 5 MLR 040054TX | 4 | 0.5R | 8 | 4 |
100 |
|
| 5 MLR 040054TXD6 | 4 | 0.5R | 8 | 6 |
100 |
|
| 5 SLR 040104TX | 4 | 1R | 8 | 4 |
75 |
|
| 5 SLR 040104TXD6 | 4 | 1R | 8 | 6 |
75 |
|
| 5 MLR 040104TX | 4 | 1R | 8 | 4 |
100 |
|
| 5 MLR 040104TXD6 | 4 | 1R | 8 | 6 |
100 |
|
| 5 SLR 060024TX | 6 | 0.2R | 12 | 6 |
75 |
|
| 5 MLR 060024TX | 6 | 0.2R | 12 | 6 |
100 |
|
| 5 SLR 060054TX | 6 | 0.5R | 12 | 6 |
75 |
|
| 5 MLR 060054TX | 6 | 0.5R | 12 | 6 |
100 |
|
| 5 SLR 060104TX | 6 | 1R | 12 | 6 |
75 |
|
| 5 MLR 060104TX | 6 | 1R | 12 | 6 |
100 |
|
| 5 SLR 080024TX | 8 | 0.2R | 16 | 8 |
75 |
|
| 5 MLR 080024TX | 8 | 0.2R | 16 | 8 |
100 |
|
| 5 SLR 080054TX | 8 | 0.5R | 16 | 8 |
75 |
|
| 5 MLR 080054TX | 8 | 0.5R | 16 | 8 |
100 |
|
| 5 SLR 080104TX | 8 | 1R | 16 | 8 |
75 |
|
| 5 MLR 080104TX | 8 | 1R | 16 | 8 |
100 |
|
| 5 SLR 080204TX | 8 | 2R | 16 | 8 |
75 |
|
| 5 MLR 080204TX | 8 | 2R | 16 | 8 |
100 |
|
| 5 MLR 100054TX | 10 | 0.5R | 20 | 10 |
100 |
|
| 5 MLR 100154TX | 10 | 1R | 20 | 10 |
100 |
|
| 5 MLR 100204TX | 10 | 2R | 20 | 10 |
100 |
|
| 5 MLR 120054TX | 12 | 0.5R | 24 | 12 |
100 |
|
| 5 MLR 120104TX | 12 | 1R | 24 | 12 |
100 |
|
| 5 MLR 120204TX | 12 | 2R | 24 | 12 |
100 |
|
| 5 MLR 120304TX | 12 | 3R | 24 | 12 |
100 |
