HSS Cutting Tool
90 Degree Spotting Drill
L-HS-AXJ
HSS Spotting Drill made of HSS with the characteristics of high temperature resistance and wear resistance. The drilled holes are straight, not easy to damage and have a long life.

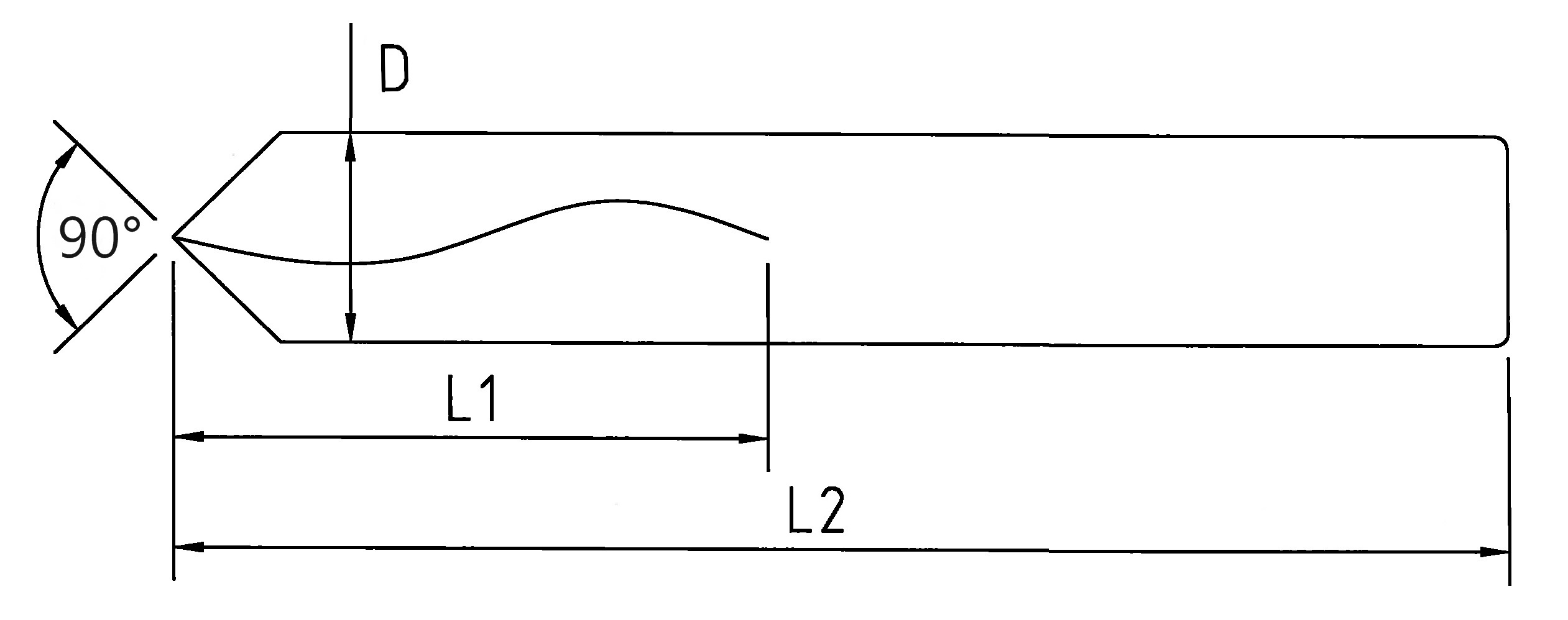

Specification
| Part NO. | Diameter (D1) | Flute Length (L1) | Shank Diameter (D2) | Overall Length (L2) |
| L-HS-AXJ03-090 | 3 | 10 | 3 | 50 |
| L-HS-AXJ04-090 | 4 | 12 | 4 | 52 |
| L-HS-AXJ05-090 | 5 | 15 | 5 | 60 |
| L-HS-AXJ06-090 | 6 | 20 | 6 | 66 |
| L-HS-AXJ08-090 | 8 | 25 | 8 | 79 |
| L-HS-AXJ10-090 | 10 | 25 | 10 | 89 |
| L-HS-AXJ12-090 | 12 | 30 | 12 | 102 |
| L-HS-AXJ16-090 | 16 | 35 | 16 | 115 |
| L-HS-AXJ20-090 | 20 | 40 | 20 | 131 |
| L-HS-AXJ25-090 | 25 | 45 | 25 | 138 |
