Carbide Tipped Cutter Tool
Finishing End Mill
AISA
Finishing End Mill is welded with carbide flutes and suitable for side milling and groove machining for finishing surface not for drilling.
Specification
| Standard | |||||

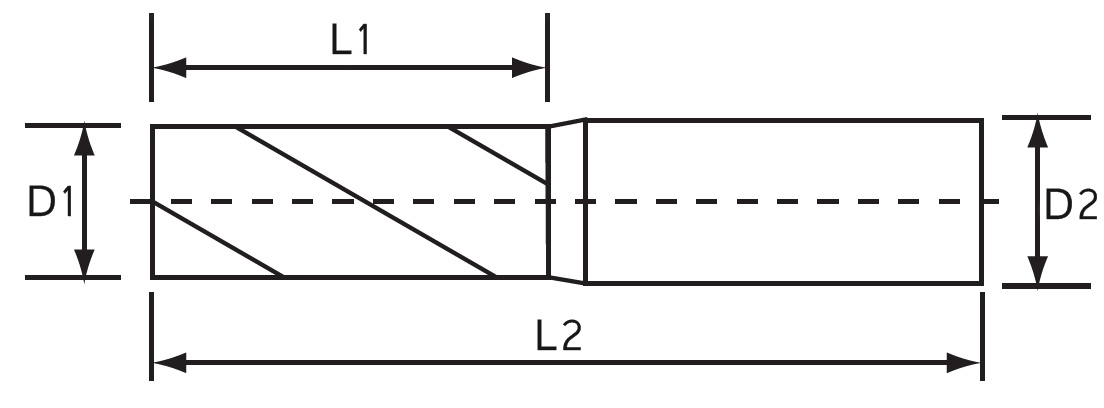

| Part No. | Diameter (D1) | Flute Length (L1) | Flute | Shank Diameter (D2) | Overall Length (L2) |
| AISA14-030-2C | 14 | 30 | 2 | 16 | 105 |
| AISA14-030-4C | 14 | 30 | 4 | 16 | 105 |
| AISA15-030-2C | 15 | 30 | 2 | 16 | 105 |
| AISA15-030-4C | 15 | 30 | 4 | 16 | 105 |
| AISA16-030-2C | 16 | 30 | 2 | 16 | 105 |
| AISA16-030-4C | 16 | 30 | 4 | 16 | 105 |
| AISA17-030-2C | 17 | 30 | 2 | 16 | 105 |
| AISA17-030-4C | 17 | 30 | 4 | 16 | 105 |
| AISA17-040-4C | 17 | 40 | 4 | 16 | 115 |
| AISA18-040-2C | 18 | 40 | 2 | 20 | 115 |
| AISA18-040-4C | 18 | 40 | 4 | 20 | 115 |
| AISA19-040-2C | 19 | 40 | 2 | 20 | 125 |
| AISA19-040-4C | 19 | 40 | 4 | 20 | 125 |
| AISA20-040-2C | 20 | 40 | 2 | 20 | 125 |
| AISA20-038-4C | 20 | 38 | 4 | 20 | 125 |
| AISA20-050-4C | 20 | 50 | 4 | 20 | 135 |
| AISA21-040-2C | 21 | 40 | 2 | 20 | 125 |
| AISA21-040-4C | 21 | 40 | 4 | 20 | 125 |
| AISA22-040-2C | 22 | 40 | 2 | 20 | 125 |
| AISA22-040-4C | 22 | 40 | 4 | 20 | 125 |
| AISA23-040-4C | 23 | 40 | 4 | 25 | 125 |
| AISA23-050-2C | 23 | 50 | 2 | 25 | 135 |
| AISA23-050-4C | 23 | 50 | 4 | 25 | 135 |
| AISA24-050-2C | 24 | 50 | 2 | 25 | 135 |
| AISA24-050-4C | 24 | 50 | 4 | 25 | 135 |
| AISA25-050-2C | 25 | 50 | 2 | 25 | 135 |
| AISA25-050-4C | 25 | 50 | 4 | 25 | 135 |
| AISA26-050-2C | 26 | 50 | 2 | 25 | 135 |
| AISA26-050-4C | 26 | 50 | 4 | 25 | 135 |
| AISA27-050-2C | 27 | 50 | 2 | 25 | 135 |
| AISA27-050-4C | 27 | 50 | 4 | 25 | 135 |
| AISA28-050-2C | 28 | 50 | 2 | 32 | 135 |
| AISA28-050-4C | 28 | 50 | 4 | 32 | 135 |
| AISA29-050-2C | 29 | 50 | 2 | 32 | 135 |
| AISA29-050-4C | 29 | 50 | 4 | 32 | 135 |
| AISA30-050-4C | 30 | 50 | 4 | 32 | 135 |
| AISA31-050-2C | 31 | 50 | 2 | 32 | 135 |
| AISA31-050-4C | 31 | 50 | 4 | 32 | 135 |
| AISA32-050-2C | 32 | 50 | 2 | 32 | 135 |
| AISA32-050-4C | 32 | 50 | 4 | 32 | 135 |
| AISA33-050-4C | 33 | 50 | 4 | 32 | 135 |
| AISA34-050-4C | 34 | 50 | 4 | 32 | 135 |
| AISA35-050-4C | 35 | 50 | 4 | 32 | 135 |
| AISA40-050-4C | 40 | 50 | 4 | 32 | 135 |
| AISA42-050-4C | 42 | 50 | 4 | 32 | 135 |
| AISA45-050-4C | 45 | 50 | 4 | 32 | 135 |
| AISA50-050-6C | 50 | 50 | 6 | 32 | 135 |
| Long Flute | |||||
| Part No. | Diameter (D1) | Flute Length (L1) | Flute | Shank Diameter (D2) | Overall Length (L2) |
| AISA16-050-3C | 16 | 50 | 3 | 16 | 135 |
| AISA16-050-4C | 16 | 50 | 4 | 16 | 135 |
| AISA16-075-3C | 16 | 75 | 3 | 16 | 150 |
| AISA16-075-4C | 16 | 75 | 4 | 16 | 150 |
| AISA18-050-3C | 18 | 50 | 4 | 20 | 135 |
| AISA18-050-4C | 18 | 50 | 4 | 20 | 135 |
| AISA18-075-3C | 18 | 75 | 3 | 20 | 150 |
| AISA18-075-4C | 18 | 75 | 4 | 20 | 150 |
| AISA20-075-4C | 20 | 75 | 4 | 20 | 155 |
| AISA20-100-4C | 20 | 100 | 4 | 20 | 175 |
| AISA22-075-4C | 22 | 75 | 4 | 20 | 155 |
| AISA22-100-4C | 22 | 100 | 4 | 20 | 175 |
| AISA25-075-4C | 25 | 75 | 4 | 25 | 155 |
| AISA25-100-4C | 25 | 100 | 4 | 25 | 185 |
| AISA25-125-4C | 25 | 125 | 4 | 25 | 210 |
| AISA25-150-4C | 25 | 150 | 4 | 25 | 235 |
| AISA30-075-4C | 30 | 75 | 4 | 32 | 160 |
| AISA30-100-4C | 30 | 100 | 4 | 32 | 185 |
| AISA30-125-4C | 30 | 125 | 4 | 32 | 210 |
| AISA30-150-4C | 30 | 150 | 4 | 32 | 235 |
| AISA32-075-4C | 32 | 75 | 4 | 32 | 160 |
| AISA32-100-4C | 32 | 100 | 4 | 32 | 185 |
| AISA32-125-4C | 32 | 125 | 4 | 32 | 210 |
| AISA32-150-4C | 32 | 150 | 4 | 32 | 235 |
| AISA35-075-4C | 35 | 75 | 4 | 32 | 160 |
| AISA35-100-4C | 35 | 100 | 4 | 32 | 185 |
| AISA35-125-4C | 35 | 125 | 4 | 32 | 210 |
| AISA35-150-4C | 35 | 150 | 4 | 32 | 235 |
| AISA40-075-4C | 40 | 75 | 4 | 32 | 160 |
| AISA40-100-4C | 40 | 100 | 4 | 32 | 205 |
| AISA40-100-6C | 40 | 100 | 6 | 42 | 205 |
| AISA40-125-4C | 40 | 125 | 4 | 42 | 225 |
| AISA40-150-4C | 40 | 150 | 4 | 42 | 250 |
| AISA40-200-4C | 40 | 200 | 4 | 42 | 300 |
| AISA50-075-6C | 50 | 75 | 6 | 42 | 160 |
| AISA50-100-6C | 50 | 100 | 6 | 42 | 200 |
| AISA50-125-6C | 50 | 125 | 6 | 42 | 225 |
| AISA50-150-6C | 50 | 150 | 6 | 42 | 250 |
| AISA50-200-6C | 50 | 200 | 6 | 42 | 300 |
| AISA50-250-6C | 50 | 250 | 6 | 42 | 350 |
| AISA50-300-6C | 50 | 300 | 6 | 42 | 400 |
| AISA60-100-6C | 60 | 100 | 6 | 42 | 200 |
| AISA60-125-6C | 60 | 125 | 6 | 42 | 225 |
