Carbide End Mill
Carbide Thread End Mill
W-AITY
Carbide Thread End Mill is made of tungsten steel for milling internal bore threads.

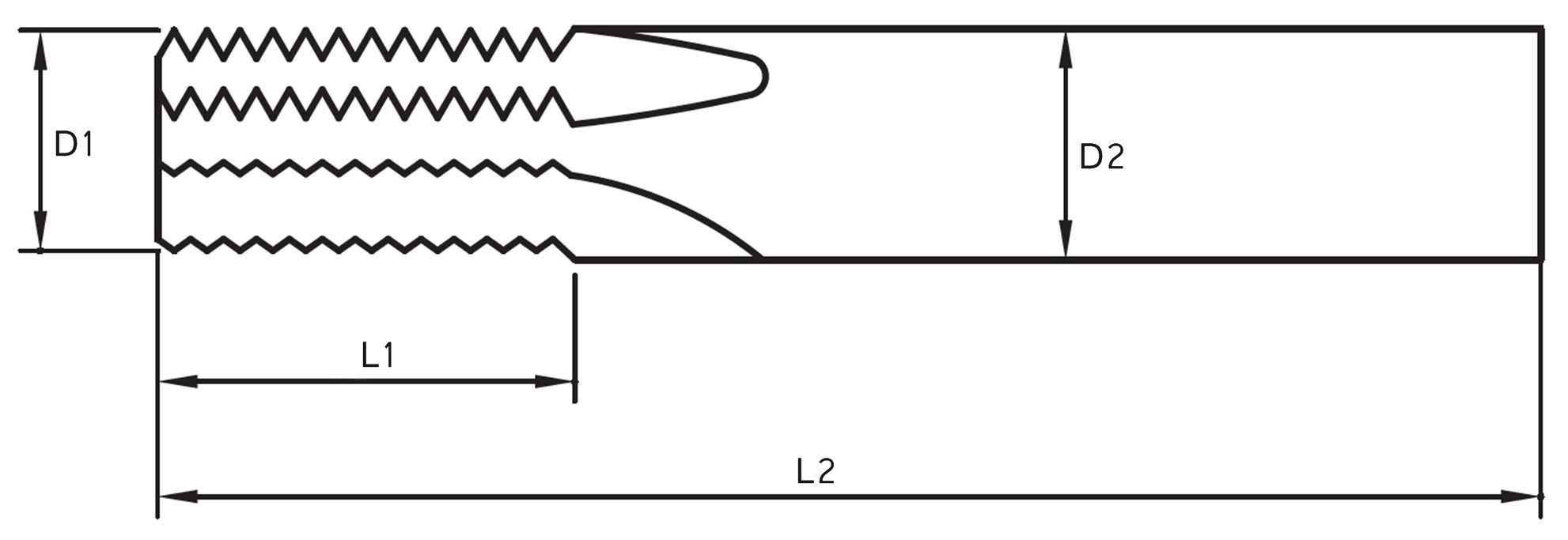

Specification
Part No. | Diameter (D1) | Flute Length (L1) | Pitch | Flute | Shank Diameter (D2) | Overall Length (L2) |
W-AITY10-25-5C-P0.5 | 10 | 25 | P0.5 | 5 | 10 | 75 |
W-AITY10-25-5C-P1.0 | 10 | 25 | P1.0 | 5 | 10 | 75 |
W-AITY10-25-5C-P1.25 | 10 | 25 | P1.25 | 5 | 10 | 75 |
W-AITY10-25-5C-P1.5 | 10 | 25 | P1.5 | 5 | 10 | 75 |
W-AITY10-25-5C-P1.75 | 10 | 25 | P1.75 | 5 | 10 | 75 |
W-AITY10-25-5C-P2.0 | 10 | 25 | P2.0 | 5 | 10 | 75 |
W-AITY12-25-5C-P0.5 | 12 | 25 | P0.5 | 5 | 12 | 75 |
W-AITY12-25-5C-P1.0 | 12 | 25 | P1.0 | 5 | 12 | 75 |
W-AITY12-25-5C-P1.25 | 12 | 25 | P1.25 | 5 | 12 | 75 |
W-AITY12-25-5C-P1.5 | 12 | 25 | P1.5 | 5 | 12 | 75 |
W-AITY12-25-5C-P1.75 | 12 | 25 | P1.75 | 5 | 12 | 75 |
W-AITY12-25-5C-P2.0 | 12 | 25 | P2.0 | 5 | 12 | 75 |
