Throw Away Cutting Tool
Chamfer／Countersink Cutter (for Drilling)
DTT 45°
Indexable Chamfer/Countersink Cutter (for Drilling) is for milling 45 degree chamfer or taper-hole machining.
Specification

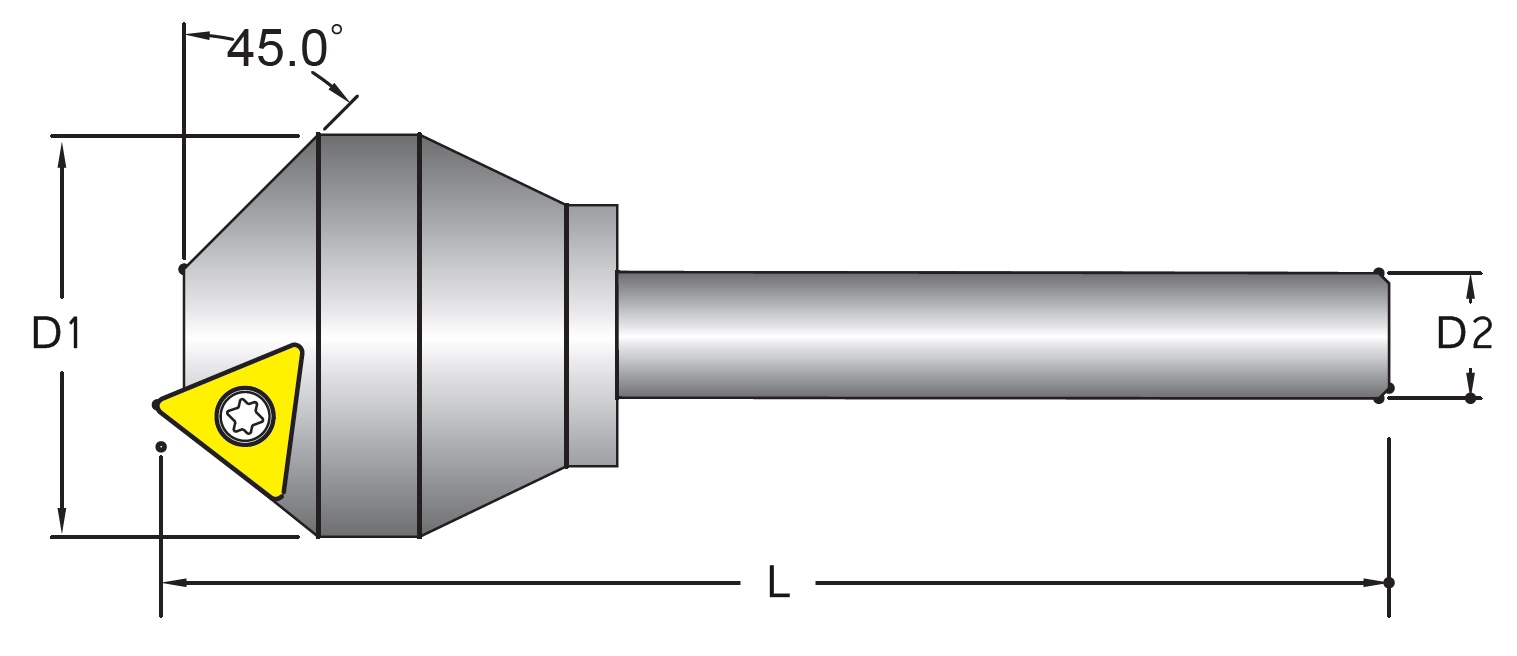

| Part No. | Pilot Diameter (D1) | Tooth | Shank Diameter (D2) | Overall Length (L) | Chamfering Range | Insert | Screw for Insert | Wrench |
| DTT1-25-1C-12D-110 | 25 | 1 | 12 | 110 | Ø3-Ø25 | TCMT16T304 | M4 | T15 |
| DTT1-40-1C-12D-110 | 40 | 1 | 12 | 110 | Ø20-Ø36 | TCMT16T304 | M4 | T15 |
