Throw Away Cutting Tool

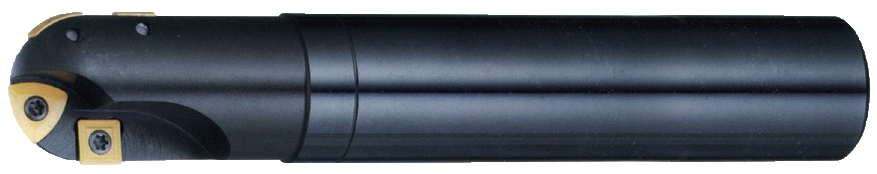

Ball Nose Roughing End Mill
DAPP
Ball Nose Roughing Indexable End Mill is for various kinds of curved surface machining and arc groove machining. Excellent cutting ability and precision，it is also stability of cutting.
Specification

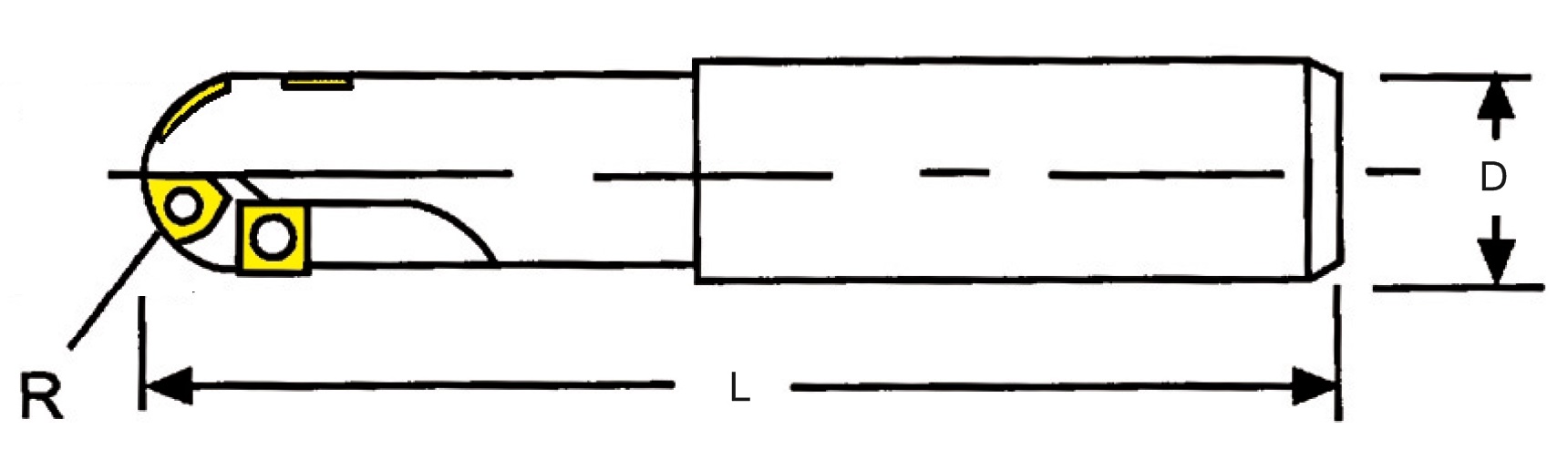

| Part No. | Corner Radius ( R ) | Shank Diameter (D) | Overall Length (L) | Insert | Screw for Insert | Wrench |
| DAPP-12.5R-25-250 | R12.5 | 25 | 250 | P26315-D25 + P28415 | M6(5025) | T30 |
| DAPP-12.5R-32-300 | 32 | 300 | ||||
| DAPP-16R-32-150 | R16 | 150 | P26315-D32 + P28415 | M8(5032) | ||
| DAPP-16R-32-200 | 200 | |||||
| DAPP-16R-32-250 | 250 |
