Carbide Tipped Cutter Tool
Corner-Rounding End Mill
ART
Corner-Rounding End Mill is welded with carbide flutes for milling the arc corner with high finish and good wear resistance.

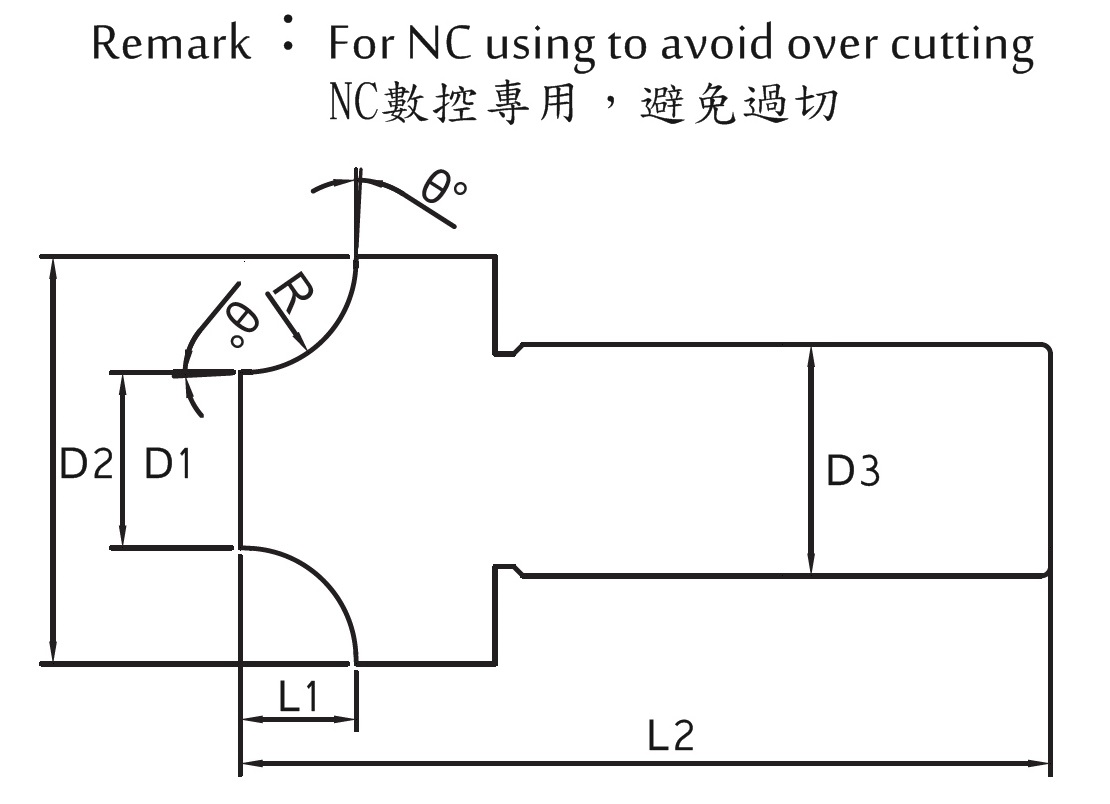

Specification
| Part No. | Pilot Diameter (D1) | Diameter (D2) | Corner Radius | Flute Length (L1) | Flute | Shank Diameter (D3) | Overall Length (L2) |
| ART015 | 10.04 | 13.3 | 1.5 | 1.63 | 2 | 10 | 75 |
| ART020 | 10.12 | 15.3 | 2 | 2.59 | 2 | 12 | 75 |
| ART025 | 9.11 | 15.3 | 2.5 | 3.09 | 2 | 12 | 75 |
| ART030 | 8.13 | 15.3 | 3 | 3.58 | 2 | 12 | 75 |
| ART035 | 9.13 | 17.3 | 3.5 | 4.09 | 2 | 12 | 75 |
| ART040 | 10.15 | 19.3 | 4 | 4.57 | 2 | 16 | 90 |
| ART045 | 11.86 | 22 | 4.5 | 5.07 | 2 | 16 | 90 |
| ART050 | 10.86 | 22 | 5 | 5.57 | 2 | 16 | 90 |
| ART055 | 10 | 21 | 5.5 | 5.5 | 2 | 16 | 90 |
| ART060 | 13.87 | 27 | 6 | 6.57 | 3 | 20 | 105 |
| ART070 | 13.88 | 29 | 7 | 7.56 | 3 | 20 | 105 |
| ART080 | 13.89 | 31 | 8 | 8.55 | 3 | 20 | 105 |
| ART090 | 18.89 | 38 | 9 | 9.56 | 4 | 25 | 110 |
| ART100 | 16.89 | 38 | 10 | 10.56 | 4 | 25 | 110 |
| ART105 | 15.89 | 38 | 10.5 | 11.06 | 4 | 25 | 110 |
| ART120 | 17.89 | 43 | 12 | 12.55 | 4 | 25 | 110 |
| ART125 | 17.89 | 44 | 12.5 | 13.05 | 4 | 25 | 110 |
| ART150 | 24.91 | 56 | 15 | 15.55 | 4 | 32 | 120 |
| ART160 | 24.9 | 58 | 16 | 16.55 | 4 | 32 | 120 |
| ART200 | 26.89 | 68 | 20 | 20.55 | 4 | 32 | 125 |
| ART250 | 26.91 | 78 | 25 | 25.55 | 4 | 32 | 130 |
