Right-Angle Face Milling Cutter (TP Indexable Insert)
TP
Right-Angle Indexable Face Milling Cutter is for milling L-shaped,the insert is 90 degrees vertically,Insert No. TPMN220412 and TPKN2204PPR.
Specification

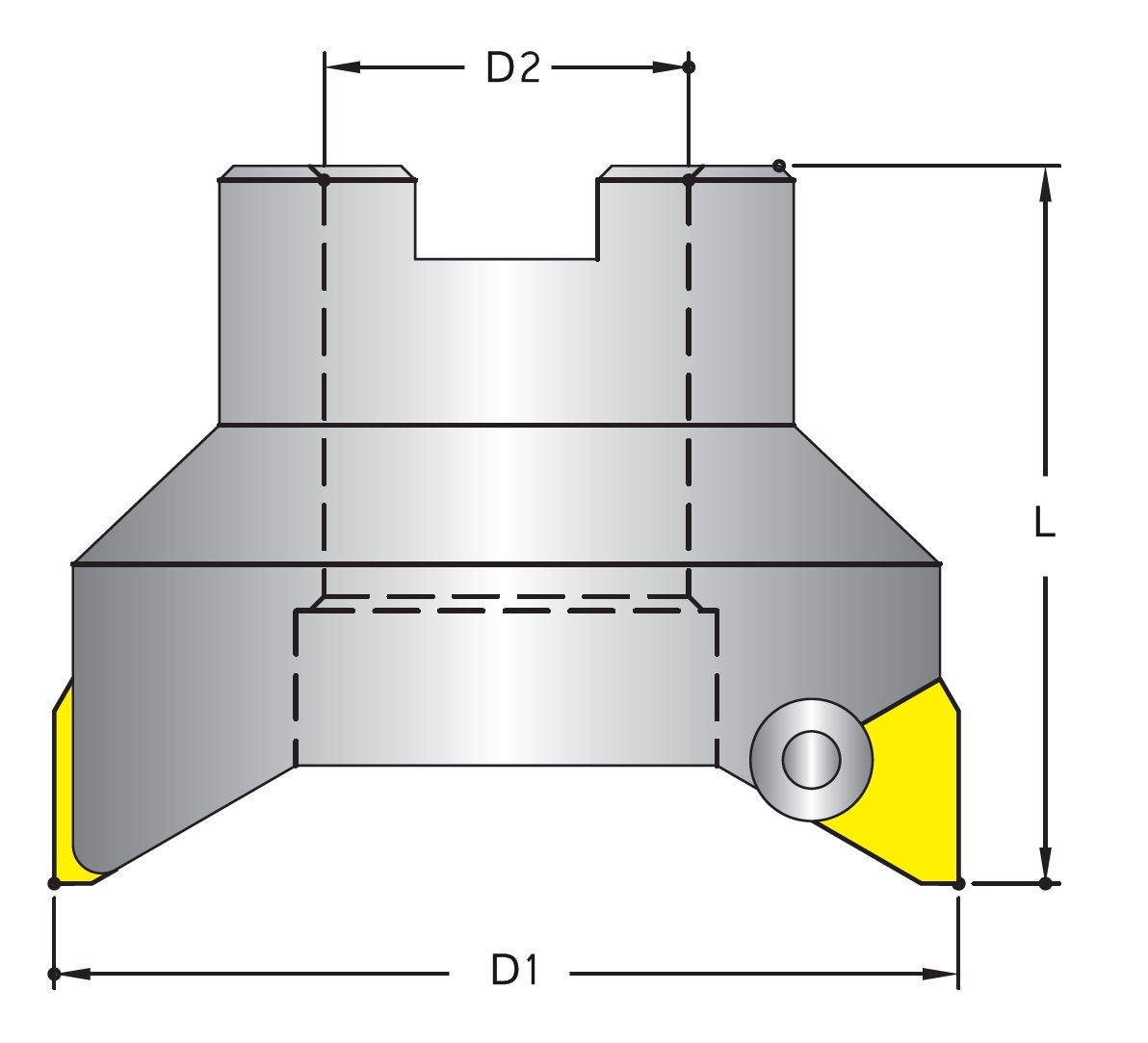

Part No. | Diameter (D1) | Bore Diameter (D2) | Tooth | Overall Length (L) | Insert | Brazier Screw | Shim Screw | Shim | Wrench |
TP-63 | 63 | 25.4 | 3 | 50 | TPMN220412 / TPKN2204PPR | W5/16 | T4 | T | M5L |
TP-80(3") | 80 | 25.4 | 4 | 50 | M5T | ||||
TP-100(4") | 100 | 31.75 | 5 | 55 | |||||
TP-125(5") | 125 | 38.1 | 6 | 60 | |||||
TP-160(6") | 160 | 50.8 | 7 | 60 | |||||
TP-200(8") | 200 | 47.625 | 8 | 60 |
