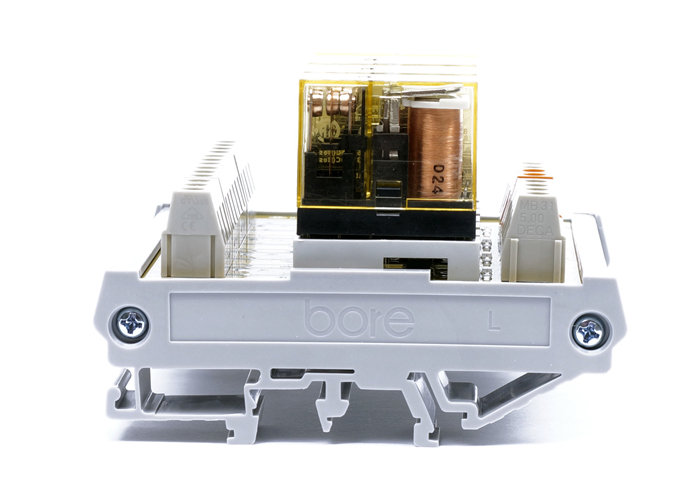

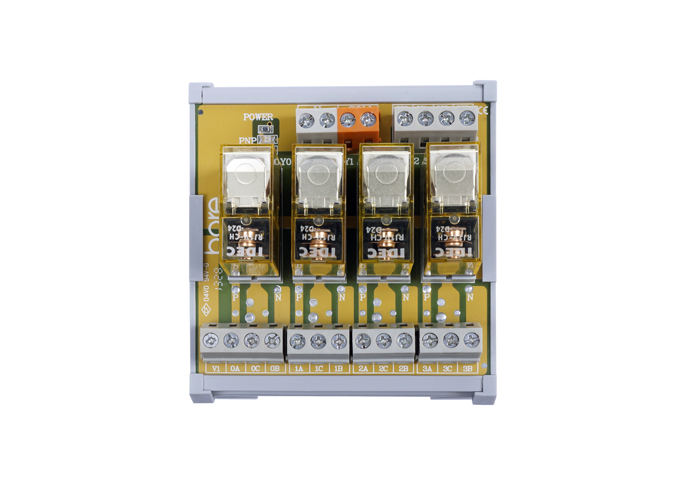

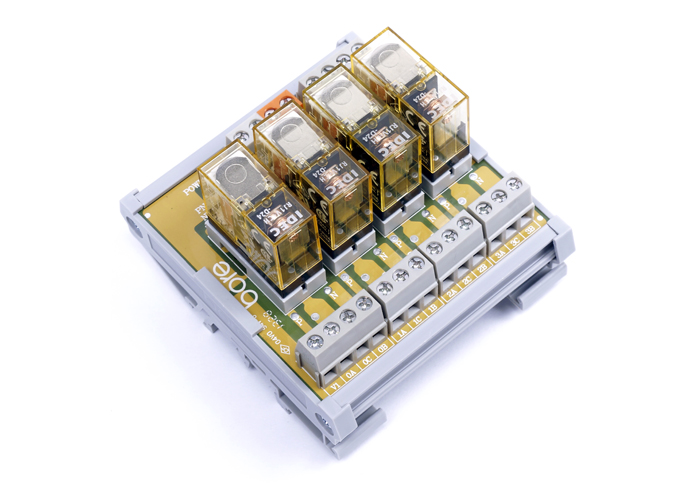

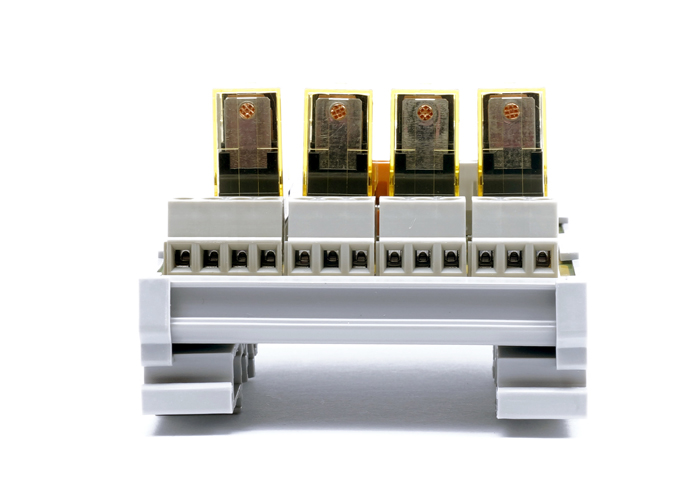

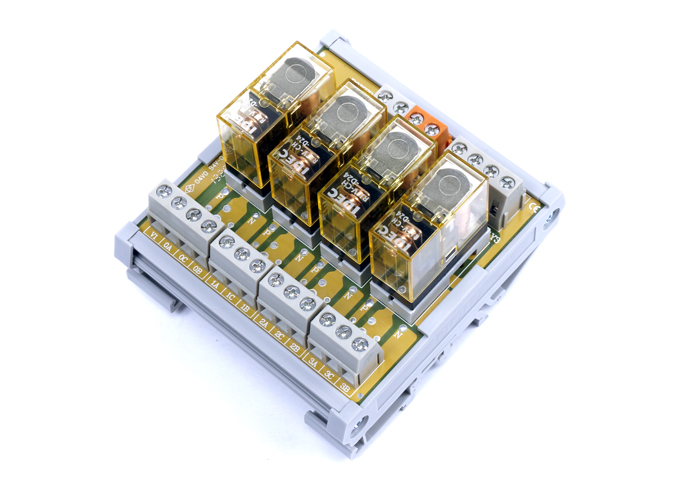

IDEC Relay Module
G2R-OS04-ID
G2R-OS-ID
G2R-OS-ID Series
1c contact configuration (SPDT)
PCB terminal block
for matching with FRC connector (IDC)
Specification
| Item | Specification |
| Contact configuration : | 1c |
| Pole type : | 1 pole |
| Terminal block type : | PCB terminal block |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Relay type : | IDEC RJ1V-CH DC24 |
| Resistive load : | 16A 250VAC, 8A 30VDC |
| inductive load : | 8A 250VAC, 4A 30VDC |
| Contact max. current : | 16A |
| Contact max. voltage : | 250VAC, 125VDC |
| Dielectric strength (between coil and contact) : | 5000 VAC, for 1 min. |
| Dielectric strength (between the contact of different polarity) : | 1000 VAC, for 1 min. |
| Machenical max. operating frequency : | 18000 operation/hr |
| Electrical max. operating frequency : | 1800 operation/hr |
