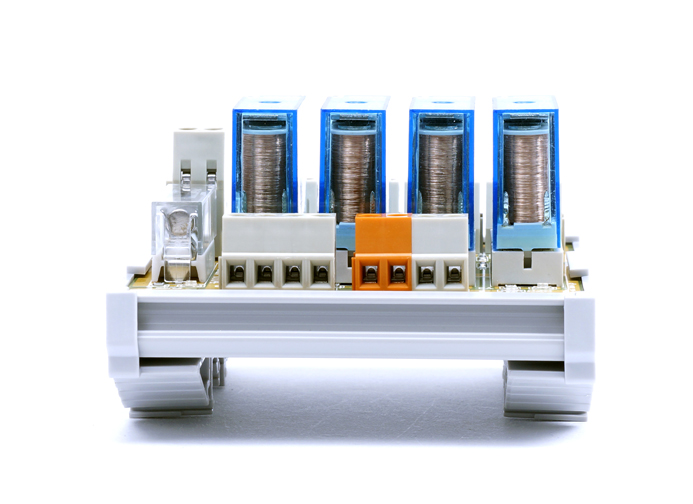

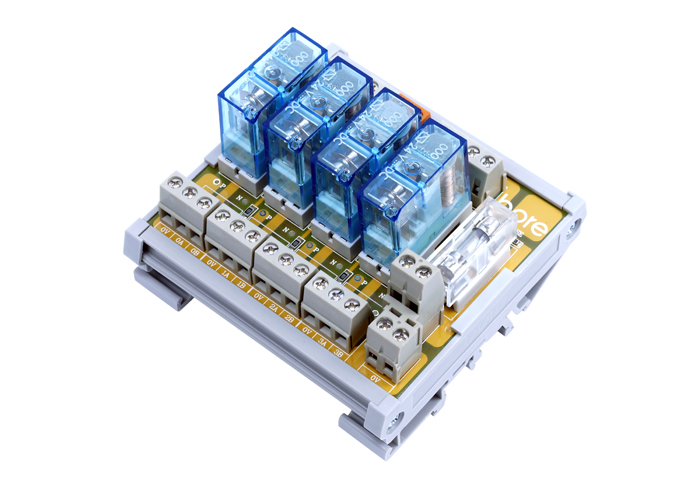

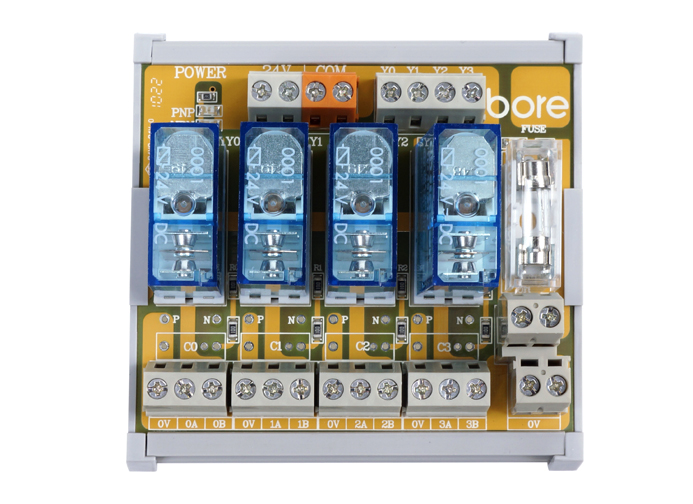

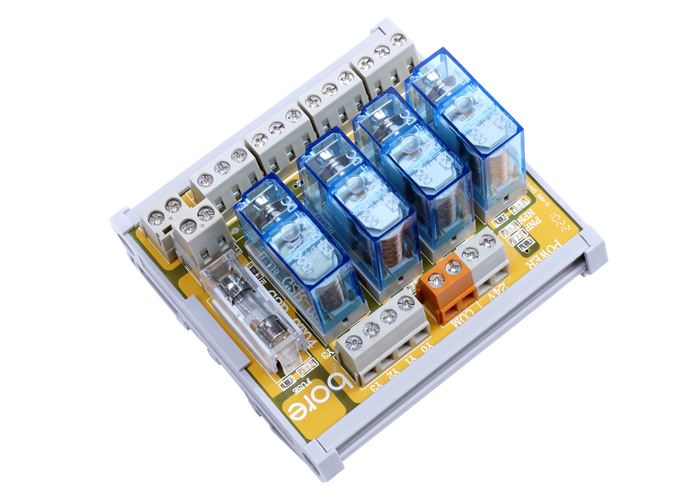

Finder Relay Module
G2R-OT04-FD
G2R-OT-FD

G2R-OT-FD Series

1c contact (SPDT)
PCB terminal block for output
10A fuse
for matching with FRC connector (IDC)

Specification

Item Specification
Contact configuration : 1c
Pole type : 1 pole
Terminal block type : PCB terminal block

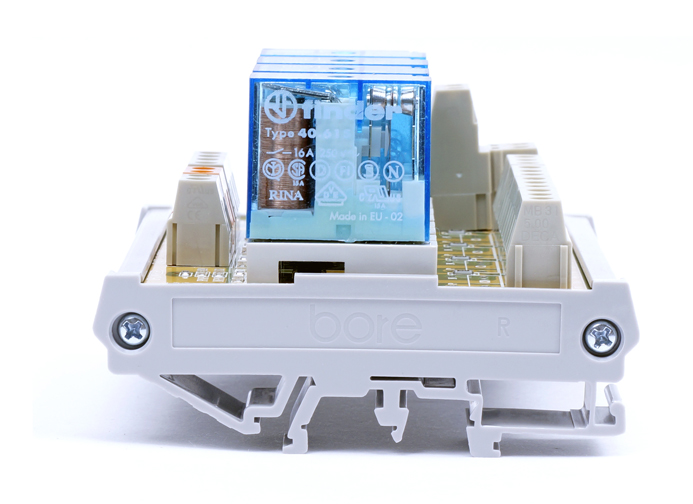

Relay type : Finder 40.61.7.024.0000
LED power status indicator : Green light
LED motion status indicator : Red light
Resistive load : 5A 250VAC, 5A 30VDC
Contact max. rated current : 16A
Contact max. rated voltage : 250 VAC
Dielectric strength (between coil and contact) : 8mm. 6kV (1.2/50 µs) isolation
Dielectric strength (between the same polarity) : VAC 1000 50/60 Hz 1min.
Machenical durability : AC coil: 10,000,000 operations min. DC coil: 20,000,000 operations min.
Electrical durability : 150,000 operations min. (at rated load AC1)
